SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.43 | 690.20 | 68.69 | 400.83 | -11.81 | 268.29 | 27.53 | 240.34 | 0.5231 | 176.0 | 79.0 | |
|
previous
or next observation for the same group /

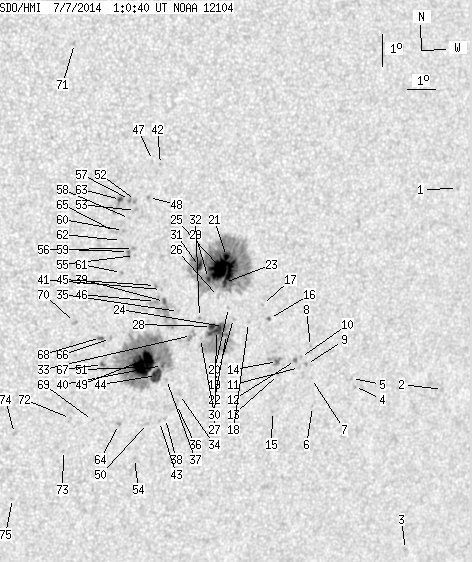

back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.81 | -8.13 | 277.74 | 36.97 | 252.34 | 0.6271 | 653.0 | 559.1 | |
| 0.00 | 2.09 | 0.00 | 1.37 | -14.48 | 278.11 | 37.35 | 243.21 | 0.6602 | 554.0 | 389.7 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -19.66 | 277.83 | 37.07 | 236.08 | 0.6863 | 691.0 | 560.2 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -14.25 | 274.65 | 33.89 | 241.38 | 0.6179 | 737.0 | 577.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -13.99 | 274.49 | 33.73 | 241.66 | 0.6144 | 517.0 | 489.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -14.84 | 273.17 | 32.41 | 239.48 | 0.6036 | 581.0 | 450.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -13.93 | 272.98 | 32.22 | 240.69 | 0.5957 | 559.0 | 521.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -12.91 | 272.79 | 32.03 | 242.12 | 0.5870 | 539.0 | 483.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -13.48 | 272.73 | 31.97 | 241.20 | 0.5897 | 706.0 | 587.1 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -13.25 | 272.47 | 31.71 | 241.37 | 0.5851 | 580.0 | 544.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -13.57 | 272.48 | 31.72 | 240.88 | 0.5872 | 558.0 | 483.3 | |
| 0.64 | 1.82 | 0.39 | 1.11 | -13.34 | 272.30 | 31.54 | 241.10 | 0.5835 | 839.6 | 705.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.76 | 271.74 | 30.98 | 240.02 | 0.5793 | 655.0 | 537.3 | |
| 1.36 | 7.99 | 0.82 | 4.83 | -13.35 | 271.64 | 30.88 | 240.60 | 0.5754 | 843.5 | 706.1 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -14.95 | 271.70 | 30.94 | 238.19 | 0.5867 | 652.0 | 545.4 | |
| 0.45 | 1.27 | 0.27 | 0.76 | -11.97 | 271.17 | 30.41 | 242.43 | 0.5607 | 656.8 | 603.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -11.52 | 270.86 | 30.10 | 242.94 | 0.5540 | 556.0 | 501.8 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -12.07 | 270.42 | 29.66 | 241.69 | 0.5518 | 809.0 | 678.6 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -11.93 | 269.87 | 29.11 | 241.49 | 0.5437 | 215.0 | 317.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -11.57 | 269.65 | 28.89 | 241.91 | 0.5386 | 505.0 | 319.2 | |
| 3.00 | 255.01 | 1.74 | 148.35 | -9.96 | 269.41 | 28.65 | 244.48 | 0.5254 | 1122.1 | 429.4 | |
| 0.64 | 77.83 | 0.37 | 45.82 | -12.43 | 269.68 | 28.92 | 240.51 | 0.5446 | 354.6 | 178.1 | |
| 0.27 | -21.00 | 0.16 | -21.00 | -10.78 | 269.42 | 28.66 | 243.07 | 0.5305 | 791.3 | 999999 | |
| 1.18 | -22.00 | 0.69 | -22.00 | -12.17 | 269.54 | 28.78 | 240.83 | 0.5411 | 747.8 | 999999 | |
| 36.51 | -21.00 | 21.24 | -21.00 | -10.37 | 269.31 | 28.55 | 243.69 | 0.5265 | 1189.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -11.21 | 269.26 | 28.50 | 242.20 | 0.5311 | 364.0 | 272.4 | |
| 7.72 | -22.00 | 4.53 | -22.00 | -12.29 | 269.31 | 28.54 | 240.43 | 0.5389 | 886.9 | 999999 | |
| 3.09 | -22.00 | 1.81 | -22.00 | -12.15 | 269.11 | 28.35 | 240.49 | 0.5355 | 992.8 | 999999 | |
| 2.00 | -21.00 | 1.16 | -21.00 | -10.63 | 268.84 | 28.08 | 242.86 | 0.5220 | 1071.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -12.52 | 268.77 | 28.00 | 239.58 | 0.5336 | 448.0 | 324.2 | |
| 4.63 | -21.00 | 2.67 | -21.00 | -10.25 | 268.49 | 27.73 | 243.25 | 0.5148 | 1205.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -11.86 | 268.66 | 27.89 | 240.60 | 0.5276 | 536.0 | 521.5 | |
| 0.00 | 6.18 | 0.00 | 3.60 | -12.42 | 268.44 | 27.67 | 239.47 | 0.5286 | 485.0 | 539.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -14.29 | 268.24 | 27.48 | 236.24 | 0.5400 | -647.0 | -532.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -11.64 | 267.89 | 27.13 | 240.30 | 0.5162 | 340.0 | 277.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -14.61 | 268.18 | 27.42 | 235.68 | 0.5416 | -682.0 | -535.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -13.80 | 267.72 | 26.96 | 236.54 | 0.5297 | -640.0 | -498.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -15.05 | 267.85 | 27.09 | 234.67 | 0.5410 | -733.0 | -562.4 | |
| 1.18 | 24.07 | 0.68 | 13.86 | -11.31 | 267.37 | 26.61 | 240.41 | 0.5071 | 699.5 | -186.2 | |
| 0.73 | 221.77 | 0.42 | 127.89 | -13.34 | 267.52 | 26.76 | 237.10 | 0.5239 | -876.4 | -504.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -10.93 | 267.23 | 26.47 | 240.96 | 0.5025 | 679.0 | 616.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.02 | 266.89 | 26.13 | 248.01 | 0.4733 | 735.0 | 543.5 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -15.14 | 267.65 | 26.89 | 234.34 | 0.5394 | -708.0 | -595.8 | |
| 10.08 | -40.00 | 5.86 | -40.00 | -13.66 | 267.35 | 26.59 | 236.42 | 0.5241 | -856.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -10.80 | 267.01 | 26.25 | 240.99 | 0.4987 | 980.0 | 852.1 | |
| 0.00 | 6.63 | 0.00 | 3.79 | -11.30 | 267.06 | 26.30 | 240.14 | 0.5029 | 769.0 | 589.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.89 | 266.61 | 25.85 | 248.06 | 0.4686 | 690.0 | 529.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -8.04 | 266.55 | 25.79 | 245.75 | 0.4743 | 847.0 | 632.8 | |
| 15.71 | -40.00 | 9.07 | -40.00 | -13.10 | 266.97 | 26.21 | 236.96 | 0.5151 | -1269.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.19 | 267.23 | 26.47 | 233.84 | 0.5348 | -519.0 | -478.5 | |
| 25.88 | -40.00 | 14.93 | -40.00 | -13.38 | 266.72 | 25.96 | 236.26 | 0.5142 | -1223.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -8.12 | 266.11 | 25.35 | 245.22 | 0.4687 | 846.0 | 756.7 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -8.43 | 266.13 | 25.37 | 244.63 | 0.4709 | 856.0 | 732.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -16.31 | 266.93 | 26.16 | 231.81 | 0.5405 | -619.0 | -465.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -9.84 | 266.20 | 25.44 | 242.02 | 0.4812 | 565.0 | 484.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.62 | 266.15 | 25.39 | 242.38 | 0.4790 | 725.0 | 591.9 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -8.08 | 265.90 | 25.14 | 245.12 | 0.4655 | 804.0 | 773.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.67 | 265.94 | 25.18 | 243.99 | 0.4699 | 727.0 | 629.7 | |
| 0.36 | 3.09 | 0.20 | 1.74 | -9.70 | 265.99 | 25.22 | 242.06 | 0.4774 | 909.2 | 727.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -9.04 | 265.76 | 25.00 | 243.12 | 0.4699 | 866.0 | 744.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.36 | 265.80 | 25.04 | 240.67 | 0.4795 | 735.0 | 675.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.35 | 265.72 | 24.96 | 242.48 | 0.4713 | 756.0 | 610.1 | |
| 1.45 | 6.54 | 0.81 | 3.65 | -8.07 | 265.60 | 24.83 | 244.87 | 0.4612 | 1012.6 | 710.3 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -15.19 | 266.21 | 25.45 | 232.80 | 0.5227 | -801.0 | -709.2 | |
| 0.00 | 2.82 | 0.00 | 1.57 | -9.07 | 265.46 | 24.70 | 242.80 | 0.4658 | 568.0 | 472.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -12.43 | 265.62 | 24.85 | 236.76 | 0.4927 | -893.0 | -686.2 | |
| 0.64 | 4.90 | 0.36 | 2.80 | -13.25 | 265.43 | 24.66 | 235.15 | 0.4969 | -942.7 | -662.0 | |
| 0.91 | 2.54 | 0.51 | 1.44 | -12.39 | 265.27 | 24.51 | 236.47 | 0.4880 | -901.9 | -750.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.04 | 265.28 | 24.52 | 232.04 | 0.5104 | -674.0 | -500.5 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -11.89 | 264.33 | 23.57 | 236.35 | 0.4720 | -689.0 | -707.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -3.21 | 263.84 | 23.08 | 254.03 | 0.4088 | 739.0 | 603.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.95 | 264.51 | 23.75 | 231.32 | 0.5005 | -733.0 | -574.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -15.98 | 264.39 | 23.63 | 229.55 | 0.5085 | -576.0 | -548.9 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -15.39 | 262.64 | 21.88 | 228.36 | 0.4827 | -755.0 | -571.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -17.50 | 262.82 | 22.06 | 225.33 | 0.5057 | 665.0 | 563.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
