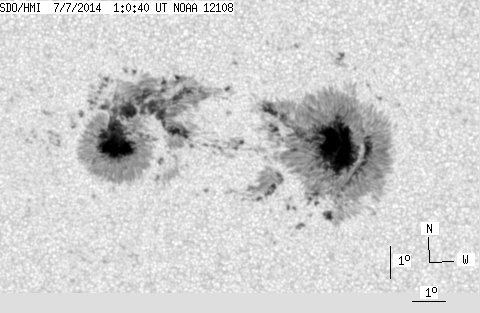

SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 456.16 | 2102.75 | 230.39 | 1062.67 | -7.30 | 239.57 | -1.20 | 173.75 | 0.1964 | 38.9 | 65.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.71 | 246.41 | 5.64 | 208.89 | 0.2031 | 779.0 | 591.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -6.20 | 244.37 | 3.61 | 200.38 | 0.1806 | -667.0 | -493.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.66 | 244.17 | 3.40 | 196.92 | 0.2031 | 91.0 | 127.3 | |
| 0.00 | 2.54 | 0.00 | 1.28 | -6.02 | 243.76 | 3.00 | 197.45 | 0.1741 | 1026.0 | 721.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -5.18 | 243.60 | 2.84 | 198.10 | 0.1595 | -710.0 | -438.7 | |
| 0.00 | 5.27 | 0.00 | 2.68 | -9.49 | 243.53 | 2.77 | 191.96 | 0.2309 | 199.0 | 9.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.58 | 243.42 | 2.66 | 196.29 | 0.1652 | 606.0 | 591.4 | |
| 11.44 | 1043.39 | 5.78 | 527.02 | -7.59 | 243.40 | 2.63 | 193.32 | 0.1986 | 1269.6 | 481.0 | |
| 1.54 | -8.00 | 0.78 | -8.00 | -7.22 | 243.39 | 2.63 | 193.76 | 0.1924 | 1119.6 | 999999 | |
| 2.82 | -8.00 | 1.42 | -8.00 | -8.03 | 243.27 | 2.51 | 192.26 | 0.2054 | 1109.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -10.37 | 243.26 | 2.50 | 190.13 | 0.2446 | -898.0 | -691.7 | |
| 1.82 | -8.00 | 0.92 | -8.00 | -8.18 | 243.15 | 2.39 | 191.52 | 0.2076 | 872.9 | 999999 | |
| 5.90 | -8.00 | 2.98 | -8.00 | -7.59 | 243.06 | 2.30 | 191.66 | 0.1973 | 1061.4 | 999999 | |
| 2.36 | -8.00 | 1.20 | -8.00 | -8.34 | 243.03 | 2.27 | 190.81 | 0.2098 | 835.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.09 | 243.02 | 2.26 | 194.72 | 0.1551 | -739.0 | -455.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.75 | 243.01 | 2.25 | 188.91 | 0.2502 | -704.0 | -632.9 | |
| 3.81 | -8.00 | 1.93 | -8.00 | -8.59 | 242.85 | 2.08 | 189.74 | 0.2134 | 914.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.53 | 242.86 | 2.10 | 187.88 | 0.2630 | 710.0 | 542.2 | |
| 67.20 | -8.00 | 33.96 | -8.00 | -7.65 | 242.69 | 1.93 | 189.77 | 0.1972 | 1436.3 | 999999 | |
| 2.09 | -8.00 | 1.06 | -8.00 | -8.80 | 242.63 | 1.87 | 188.60 | 0.2165 | 938.2 | 999999 | |
| 0.82 | 10.81 | 0.41 | 5.41 | -4.68 | 242.62 | 1.86 | 192.79 | 0.1467 | -1021.6 | -450.1 | |
| 9.99 | -8.00 | 5.03 | -8.00 | -6.69 | 242.50 | 1.74 | 189.67 | 0.1803 | 1334.6 | 999999 | |
| 1.36 | -8.00 | 0.69 | -8.00 | -9.02 | 242.51 | 1.75 | 187.90 | 0.2199 | 674.2 | 999999 | |
| 40.78 | -8.00 | 20.57 | -8.00 | -7.31 | 242.23 | 1.46 | 187.70 | 0.1902 | 1642.5 | 999999 | |
| 11.26 | -8.00 | 5.70 | -8.00 | -8.12 | 242.23 | 1.47 | 187.17 | 0.2039 | 1145.9 | 999999 | |
| 5.63 | -8.00 | 2.87 | -8.00 | -9.65 | 242.20 | 1.44 | 186.21 | 0.2299 | 984.0 | 999999 | |
| 4.54 | -8.00 | 2.30 | -8.00 | -8.02 | 241.98 | 1.22 | 186.02 | 0.2018 | 1012.0 | 999999 | |
| 6.63 | -8.00 | 3.35 | -8.00 | -7.77 | 241.92 | 1.16 | 185.85 | 0.1975 | 1151.0 | 999999 | |
| 18.98 | -8.00 | 9.57 | -8.00 | -7.18 | 241.86 | 1.10 | 185.84 | 0.1873 | 1213.6 | 999999 | |
| 0.91 | -8.00 | 0.46 | -8.00 | -9.27 | 241.83 | 1.07 | 184.76 | 0.2229 | 674.8 | 999999 | |
| 2.72 | -8.00 | 1.38 | -8.00 | -8.96 | 241.80 | 1.04 | 184.74 | 0.2175 | 675.3 | 999999 | |
| 1.36 | -8.00 | 0.69 | -8.00 | -8.18 | 241.67 | 0.91 | 184.45 | 0.2040 | 779.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.64 | 241.65 | 0.88 | 183.82 | 0.2290 | 790.0 | 598.0 | |
| 2.91 | -8.00 | 1.47 | -8.00 | -7.31 | 241.61 | 0.85 | 184.49 | 0.1890 | 1186.2 | 999999 | |
| 1.09 | -8.00 | 0.55 | -8.00 | -9.11 | 241.61 | 0.85 | 183.84 | 0.2199 | 805.9 | 999999 | |
| 8.63 | -8.00 | 4.35 | -8.00 | -7.09 | 241.34 | 0.57 | 183.09 | 0.1850 | 1020.3 | 999999 | |
| 0.00 | 4.72 | 0.00 | 2.41 | -9.99 | 241.34 | 0.57 | 182.42 | 0.2346 | 791.0 | 694.3 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -4.37 | 241.21 | 0.45 | 183.28 | 0.1379 | 1006.0 | 842.0 | |
| 2.63 | -8.00 | 1.33 | -8.00 | -7.62 | 241.15 | 0.39 | 182.00 | 0.1939 | 802.9 | 999999 | |
| 0.45 | 1.63 | 0.23 | 0.83 | -9.42 | 241.15 | 0.39 | 181.71 | 0.2248 | 811.0 | 611.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.24 | 241.06 | 0.30 | 181.23 | 0.2387 | 596.0 | 535.5 | |
| 0.27 | -8.00 | 0.14 | -8.00 | -7.15 | 241.03 | 0.27 | 181.43 | 0.1858 | 1081.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.11 | 241.03 | 0.27 | 181.20 | 0.2194 | 935.0 | 746.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.02 | 241.03 | 0.27 | 181.12 | 0.2349 | 632.0 | 454.1 | |
| 0.64 | 2.00 | 0.32 | 1.02 | -9.39 | 240.97 | 0.20 | 180.90 | 0.2242 | 932.3 | 739.9 | |
| 5.18 | -8.00 | 2.61 | -8.00 | -6.59 | 240.81 | 0.05 | 180.30 | 0.1761 | 1186.0 | 999999 | |
| 1.45 | 59.12 | 0.74 | 29.96 | -8.39 | 240.69 | -0.07 | 179.65 | 0.2071 | 1201.4 | 410.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.50 | 240.69 | -0.07 | 179.52 | 0.1398 | 1017.0 | 836.8 | |
| 0.54 | -8.00 | 0.27 | -8.00 | -7.12 | 240.66 | -0.10 | 179.45 | 0.1852 | 967.0 | 999999 | |
| 2.09 | -8.00 | 1.05 | -8.00 | -6.97 | 240.57 | -0.19 | 178.94 | 0.1826 | 1061.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.49 | 240.53 | -0.23 | 179.06 | 0.2429 | -812.0 | -673.8 | |
| 2.09 | -47.00 | 1.06 | -47.00 | -8.74 | 240.50 | -0.26 | 178.80 | 0.2130 | 1082.7 | 999999 | |
| 1.18 | -8.00 | 0.59 | -8.00 | -6.84 | 240.45 | -0.32 | 178.25 | 0.1805 | 892.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.49 | 240.41 | -0.35 | 178.45 | 0.2259 | -742.0 | -447.1 | |
| 10.63 | -8.00 | 5.34 | -8.00 | -6.35 | 240.39 | -0.38 | 177.81 | 0.1720 | 1013.4 | 999999 | |
| 2.18 | -47.00 | 1.11 | -47.00 | -8.96 | 240.35 | -0.41 | 178.11 | 0.2168 | 938.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -4.28 | 240.33 | -0.43 | 176.81 | 0.1363 | 1005.0 | 794.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.83 | 240.26 | -0.50 | 177.47 | 0.1977 | -652.0 | -332.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -10.21 | 240.25 | -0.51 | 177.89 | 0.2382 | 716.0 | 463.6 | |
| 1.18 | 4.18 | 0.60 | 2.12 | -9.11 | 240.07 | -0.69 | 176.88 | 0.2197 | 872.2 | 649.4 | |
| 0.00 | 7.81 | 0.00 | 3.94 | -7.59 | 240.04 | -0.72 | 176.31 | 0.1936 | 178.0 | -99.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.38 | 239.83 | -0.93 | 174.64 | 0.1731 | 234.0 | 241.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.14 | 239.58 | -1.18 | 174.67 | 0.2209 | 845.0 | 581.1 | |
| 1.36 | 23.07 | 0.69 | 11.65 | -7.37 | 239.52 | -1.24 | 173.51 | 0.1907 | 926.5 | -42.8 | |
| 0.64 | -64.00 | 0.32 | -64.00 | -7.55 | 239.34 | -1.42 | 172.68 | 0.1942 | -618.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -4.90 | 239.35 | -1.41 | 170.45 | 0.1488 | 954.0 | 748.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | -4.62 | 239.32 | -1.44 | 169.92 | 0.1441 | 926.0 | 759.0 | |
| 0.00 | 4.81 | 0.00 | 2.44 | -8.89 | 239.21 | -1.55 | 172.89 | 0.2173 | -805.0 | -478.2 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -6.47 | 239.13 | -1.63 | 170.71 | 0.1763 | -784.0 | -509.3 | |
| 1.09 | 4.18 | 0.55 | 2.10 | -5.70 | 239.10 | -1.66 | 169.77 | 0.1632 | 699.8 | -71.4 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -6.01 | 239.01 | -1.75 | 169.55 | 0.1687 | 549.0 | 384.3 | |
| 0.36 | -64.00 | 0.18 | -64.00 | -7.52 | 238.85 | -1.92 | 170.17 | 0.1950 | -834.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.68 | 238.69 | -2.07 | 169.54 | 0.1981 | -810.0 | -629.3 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -7.34 | 238.69 | -2.07 | 169.22 | 0.1923 | 439.0 | 437.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.86 | 238.44 | -2.33 | 169.40 | 0.2188 | 969.0 | 765.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.43 | 238.42 | -2.35 | 167.92 | 0.1948 | -829.0 | -696.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.09 | 238.39 | -2.37 | 167.39 | 0.1892 | -101.0 | 72.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.99 | 238.16 | -2.60 | 168.28 | 0.2218 | 524.0 | 476.2 | |
| 0.64 | 767.49 | 0.32 | 387.80 | -7.46 | 237.99 | -2.78 | 165.82 | 0.1970 | -744.7 | -437.2 | |
| 4.90 | -79.00 | 2.46 | -79.00 | -5.76 | 237.87 | -2.89 | 162.70 | 0.1693 | -1155.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.08 | 237.83 | -2.94 | 165.83 | 0.2080 | -773.0 | -547.3 | |
| 6.54 | -79.00 | 3.30 | -79.00 | -7.09 | 237.77 | -2.99 | 164.27 | 0.1918 | -800.2 | 999999 | |
| 8.17 | -79.00 | 4.11 | -79.00 | -5.95 | 237.60 | -3.16 | 161.50 | 0.1738 | -1244.1 | 999999 | |
| 1.36 | -79.00 | 0.68 | -79.00 | -5.36 | 237.57 | -3.19 | 160.20 | 0.1644 | 612.1 | 999999 | |
| 10.63 | -79.00 | 5.36 | -79.00 | -7.00 | 237.47 | -3.30 | 162.61 | 0.1918 | -1193.4 | 999999 | |
| 1.45 | -79.00 | 0.73 | -79.00 | -6.13 | 237.47 | -3.29 | 161.17 | 0.1775 | -1018.6 | 999999 | |
| 0.00 | 23.70 | 0.00 | 12.02 | -8.30 | 237.36 | -3.40 | 163.99 | 0.2137 | -65.0 | -170.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.68 | 237.28 | -3.49 | 162.73 | 0.2039 | -946.0 | -724.6 | |
| 1.82 | -79.00 | 0.91 | -79.00 | -5.52 | 237.14 | -3.62 | 158.13 | 0.1696 | 715.7 | 999999 | |
| 2.45 | -79.00 | 1.24 | -79.00 | -6.78 | 237.13 | -3.63 | 160.58 | 0.1901 | -1177.1 | 999999 | |
| 1.91 | -79.00 | 0.96 | -79.00 | -5.76 | 237.11 | -3.65 | 158.49 | 0.1737 | -937.4 | 999999 | |
| 10.35 | -79.00 | 5.22 | -79.00 | -6.50 | 237.07 | -3.69 | 159.78 | 0.1859 | -942.5 | 999999 | |
| 3.54 | -79.00 | 1.78 | -79.00 | -6.13 | 237.07 | -3.69 | 159.08 | 0.1799 | -1154.3 | 999999 | |
| 0.91 | 3.18 | 0.46 | 1.61 | -7.93 | 237.03 | -3.74 | 161.96 | 0.2093 | -914.9 | -725.2 | |
| 0.00 | 2.91 | 0.00 | 1.48 | -8.49 | 236.93 | -3.83 | 162.34 | 0.2189 | -421.0 | -451.8 | |
| 15.89 | -79.00 | 8.01 | -79.00 | -6.26 | 236.77 | -4.00 | 157.76 | 0.1838 | -1255.1 | 999999 | |
| 16.26 | -79.00 | 8.19 | -79.00 | -5.95 | 236.52 | -4.24 | 155.86 | 0.1806 | -1108.1 | 999999 | |
| 3.00 | -79.00 | 1.51 | -79.00 | -6.41 | 236.49 | -4.27 | 156.71 | 0.1882 | -1183.1 | 999999 | |
| 1.18 | -79.00 | 0.60 | -79.00 | -7.16 | 236.45 | -4.31 | 158.02 | 0.2002 | -845.3 | 999999 | |
| 0.73 | 2.09 | 0.37 | 1.05 | -5.18 | 236.25 | -4.51 | 152.56 | 0.1707 | -1011.8 | -838.7 | |
| 0.00 | 4.18 | 0.00 | 2.14 | -10.94 | 236.18 | -4.58 | 162.53 | 0.2624 | -430.0 | -642.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.22 | 236.14 | -4.62 | 162.73 | 0.2671 | -683.0 | -492.2 | |
| 20.16 | -79.00 | 10.17 | -79.00 | -6.38 | 236.06 | -4.70 | 154.58 | 0.1908 | -1406.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -5.15 | 235.98 | -4.78 | 151.06 | 0.1725 | -1113.0 | -931.8 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -10.62 | 235.81 | -4.95 | 160.83 | 0.2593 | -735.0 | -613.4 | |
| 1.09 | -79.00 | 0.55 | -79.00 | -6.63 | 235.84 | -4.92 | 154.13 | 0.1962 | -1140.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.60 | 235.71 | -5.06 | 148.01 | 0.1666 | -778.0 | -648.1 | |
| 68.38 | -79.00 | 34.65 | -79.00 | -7.44 | 235.64 | -5.12 | 154.99 | 0.2101 | -1418.3 | 999999 | |
| 3.36 | -79.00 | 1.70 | -79.00 | -6.39 | 235.66 | -5.10 | 152.73 | 0.1938 | -1252.0 | 999999 | |
| 14.89 | -79.00 | 7.53 | -79.00 | -6.88 | 235.62 | -5.14 | 153.70 | 0.2017 | -1386.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.81 | 235.56 | -5.20 | 157.20 | 0.2321 | -334.0 | -296.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.46 | 235.57 | -5.19 | 149.95 | 0.1805 | -818.0 | -706.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.86 | 235.51 | -5.25 | 150.73 | 0.1871 | -810.0 | -704.2 | |
| 0.91 | 10.17 | 0.46 | 5.13 | -5.43 | 235.39 | -5.37 | 148.99 | 0.1817 | -965.3 | -769.7 | |
| 3.36 | -79.00 | 1.70 | -79.00 | -6.29 | 235.32 | -5.44 | 150.98 | 0.1952 | -1084.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -11.10 | 235.24 | -5.52 | 159.45 | 0.2701 | -837.0 | -571.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.06 | 234.94 | -5.82 | 155.24 | 0.2403 | -837.0 | -573.1 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -5.65 | 234.96 | -5.80 | 147.62 | 0.1888 | -182.0 | -143.8 | |
| 0.82 | 7.90 | 0.41 | 3.99 | -6.14 | 234.92 | -5.84 | 148.83 | 0.1963 | -982.9 | -776.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.93 | 234.89 | -5.87 | 148.12 | 0.1934 | -179.0 | -200.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.04 | 234.59 | -6.17 | 157.17 | 0.2732 | -790.0 | -619.3 | |
| 0.91 | 3.36 | 0.46 | 1.70 | -6.51 | 234.61 | -6.15 | 148.47 | 0.2046 | -1048.9 | -798.8 | |
| 0.00 | 4.81 | 0.00 | 2.44 | -6.79 | 234.33 | -6.44 | 148.04 | 0.2112 | -819.0 | -773.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -11.70 | 234.23 | -6.53 | 156.96 | 0.2859 | -818.0 | -671.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -10.82 | 234.19 | -6.57 | 155.52 | 0.2726 | -850.0 | -687.3 | |
| 0.00 | 11.90 | 0.00 | 6.05 | -7.26 | 233.76 | -7.00 | 147.03 | 0.2231 | -596.0 | -853.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.57 | 233.54 | -7.22 | 146.97 | 0.2296 | -859.0 | -684.8 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -6.49 | 233.53 | -7.23 | 144.13 | 0.2145 | -828.0 | -698.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.20 | 233.18 | -7.59 | 144.74 | 0.2279 | -981.0 | -797.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.05 | 233.09 | -7.68 | 144.02 | 0.2267 | -939.0 | -726.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.39 | 233.05 | -7.71 | 144.77 | 0.2318 | -844.0 | -584.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.17 | 232.95 | -7.81 | 148.47 | 0.2578 | -633.0 | -535.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.48 | 232.94 | -7.82 | 149.08 | 0.2624 | -758.0 | -635.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.33 | 232.92 | -7.84 | 144.18 | 0.2321 | -855.0 | -737.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.54 | 232.81 | -7.96 | 146.67 | 0.2502 | -645.0 | -528.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.06 | 232.45 | -8.31 | 139.04 | 0.2202 | -805.0 | -693.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
