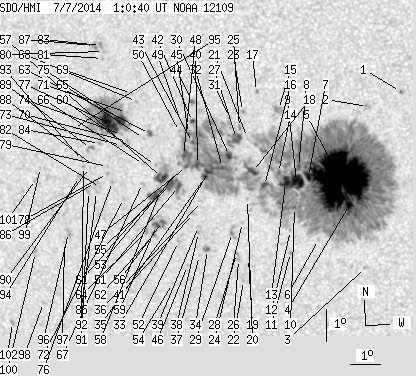

SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 365.53 | 1846.50 | 197.69 | 1000.54 | -7.86 | 220.30 | -20.46 | 119.48 | 0.3986 | 470.1 | 138.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.27 | 0.19 | 0.67 | -5.24 | 224.12 | -16.64 | 117.66 | 0.3234 | 682.5 | 564.7 | |
| 0.00 | 3.18 | 0.00 | 1.68 | -5.72 | 223.05 | -17.71 | 117.48 | 0.3427 | -696.0 | -582.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.74 | 222.74 | -18.02 | 128.65 | 0.3909 | -894.0 | -684.1 | |
| 6.45 | 1509.82 | 3.45 | 812.29 | -8.77 | 222.33 | -18.43 | 123.85 | 0.3778 | 1135.9 | 274.5 | |
| 212.33 | -4.00 | 113.38 | -4.00 | -7.97 | 222.08 | -18.68 | 121.68 | 0.3743 | 1625.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -9.89 | 221.26 | -19.51 | 124.75 | 0.4020 | 30.0 | 97.8 | |
| 5.09 | -4.00 | 2.73 | -4.00 | -7.93 | 221.04 | -19.72 | 120.22 | 0.3884 | 904.0 | 999999 | |
| 3.45 | -4.00 | 1.86 | -4.00 | -7.62 | 220.73 | -20.03 | 119.15 | 0.3904 | 672.6 | 999999 | |
| 18.16 | -4.00 | 9.79 | -4.00 | -8.09 | 220.64 | -20.12 | 120.08 | 0.3953 | 927.9 | 999999 | |
| 1.09 | -4.00 | 0.59 | -4.00 | -8.90 | 220.53 | -20.23 | 121.71 | 0.4033 | 527.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.32 | 220.30 | -20.46 | 124.36 | 0.4183 | -853.0 | -719.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.63 | 220.35 | -20.41 | 123.01 | 0.4117 | 620.0 | 445.0 | |
| 9.63 | -4.00 | 5.20 | -4.00 | -8.13 | 220.28 | -20.49 | 119.73 | 0.4006 | 742.2 | 999999 | |
| 1.45 | -4.00 | 0.79 | -4.00 | -7.82 | 220.06 | -20.70 | 118.80 | 0.4013 | 647.0 | 999999 | |
| 0.00 | 6.81 | 0.00 | 3.66 | -5.87 | 220.15 | -20.61 | 114.42 | 0.3862 | 495.0 | 349.6 | |
| 3.27 | -4.00 | 1.78 | -4.00 | -8.24 | 219.58 | -21.18 | 119.14 | 0.4112 | 742.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -5.33 | 219.45 | -21.31 | 112.44 | 0.3931 | 928.0 | 778.1 | |
| 4.90 | -4.00 | 2.67 | -4.00 | -7.81 | 219.21 | -21.56 | 117.81 | 0.4132 | 1006.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -10.53 | 218.89 | -21.87 | 123.05 | 0.4387 | -842.0 | -645.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.69 | 218.99 | -21.77 | 119.43 | 0.4228 | -642.0 | -519.3 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -6.76 | 219.10 | -21.67 | 115.37 | 0.4075 | 432.0 | 463.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -11.23 | 218.67 | -22.09 | 124.12 | 0.4474 | -749.0 | -616.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -5.96 | 218.97 | -21.79 | 113.43 | 0.4042 | -874.0 | -671.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -9.41 | 218.77 | -21.99 | 120.67 | 0.4312 | 473.0 | 257.4 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -6.45 | 218.85 | -21.92 | 114.44 | 0.4091 | 889.0 | 738.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.57 | 218.55 | -22.21 | 122.73 | 0.4435 | 676.0 | 409.4 | |
| 6.45 | -4.00 | 3.50 | -4.00 | -6.80 | 218.73 | -22.03 | 115.09 | 0.4130 | 946.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -10.39 | 218.50 | -22.26 | 122.30 | 0.4426 | 705.0 | 507.6 | |
| 0.00 | 6.18 | 0.00 | 3.40 | -9.73 | 218.42 | -22.34 | 120.92 | 0.4386 | -691.0 | -442.2 | |
| 3.36 | -4.00 | 1.83 | -4.00 | -7.33 | 218.47 | -22.29 | 115.99 | 0.4203 | 989.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.15 | 218.53 | -22.23 | 113.45 | 0.4118 | 644.0 | 444.6 | |
| 1.36 | -4.00 | 0.75 | -4.00 | -7.71 | 218.21 | -22.55 | 116.55 | 0.4265 | -23.3 | 999999 | |
| 2.82 | -4.00 | 1.55 | -4.00 | -7.84 | 217.74 | -23.02 | 116.36 | 0.4342 | -1109.9 | 999999 | |
| 1.27 | 3.54 | 0.71 | 1.97 | -10.28 | 217.54 | -23.23 | 121.03 | 0.4547 | -1065.5 | -898.4 | |
| 3.09 | -4.00 | 1.70 | -4.00 | -8.00 | 217.63 | -23.13 | 116.58 | 0.4368 | -975.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.78 | 217.44 | -23.32 | 117.99 | 0.4448 | -665.0 | -435.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.48 | 217.25 | -23.51 | 121.10 | 0.4600 | -800.0 | -628.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -9.76 | 217.27 | -23.49 | 119.74 | 0.4542 | -777.0 | -636.2 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -9.57 | 217.29 | -23.47 | 119.39 | 0.4527 | -745.0 | -633.5 | |
| 2.82 | -4.00 | 1.55 | -4.00 | -7.64 | 217.38 | -23.38 | 115.57 | 0.4378 | -769.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -9.17 | 217.15 | -23.61 | 118.45 | 0.4516 | -777.0 | -685.5 | |
| 1.63 | -4.00 | 0.90 | -4.00 | -6.31 | 217.29 | -23.47 | 112.67 | 0.4308 | -1026.6 | 999999 | |
| 1.27 | -4.00 | 0.70 | -4.00 | -6.96 | 217.25 | -23.51 | 114.03 | 0.4353 | 34.0 | 999999 | |
| 0.73 | 3.36 | 0.40 | 1.84 | -5.69 | 217.32 | -23.44 | 111.34 | 0.4268 | -1160.1 | -844.8 | |
| 0.91 | -4.00 | 0.50 | -4.00 | -6.68 | 217.14 | -23.63 | 113.34 | 0.4353 | -737.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -10.80 | 216.82 | -23.95 | 121.25 | 0.4683 | -756.0 | -580.7 | |
| 1.18 | -4.00 | 0.65 | -4.00 | -7.71 | 217.01 | -23.75 | 115.37 | 0.4436 | -891.7 | 999999 | |
| 1.54 | -4.00 | 0.85 | -4.00 | -7.37 | 216.93 | -23.83 | 114.59 | 0.4425 | -1180.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.38 | 216.92 | -23.84 | 112.50 | 0.4367 | -972.0 | -803.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -6.63 | 216.84 | -23.93 | 112.96 | 0.4393 | -958.0 | -800.6 | |
| 3.63 | 66.11 | 2.02 | 36.80 | -8.34 | 216.70 | -24.06 | 116.36 | 0.4521 | -1001.6 | -671.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.06 | 216.57 | -24.19 | 119.60 | 0.4659 | -683.0 | -478.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.87 | 216.70 | -24.07 | 115.42 | 0.4491 | -565.0 | -500.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -11.38 | 216.25 | -24.51 | 121.74 | 0.4801 | -623.0 | -438.1 | |
| 7.54 | -51.00 | 4.19 | -51.00 | -8.28 | 216.43 | -24.33 | 116.00 | 0.4554 | -1066.9 | 999999 | |
| 1.45 | 15.98 | 0.81 | 8.96 | -9.44 | 216.08 | -24.68 | 117.94 | 0.4682 | -1041.4 | -728.4 | |
| 8.17 | -51.00 | 4.55 | -51.00 | -8.07 | 216.14 | -24.62 | 115.32 | 0.4581 | -1102.9 | 999999 | |
| 1.54 | -51.00 | 0.86 | -51.00 | -8.48 | 216.08 | -24.68 | 116.07 | 0.4616 | -1045.7 | 999999 | |
| 2.91 | -56.00 | 1.63 | -56.00 | -9.57 | 215.86 | -24.90 | 117.99 | 0.4721 | -926.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.70 | 215.96 | -24.80 | 114.42 | 0.4583 | -761.0 | -605.5 | |
| 7.08 | -51.00 | 3.96 | -51.00 | -8.67 | 215.86 | -24.90 | 116.25 | 0.4659 | -918.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -9.86 | 215.74 | -25.02 | 118.41 | 0.4758 | -803.0 | -662.0 | |
| 1.73 | 3.81 | 0.96 | 2.12 | -6.71 | 215.82 | -24.94 | 112.29 | 0.4545 | -1009.8 | -800.3 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -9.77 | 215.50 | -25.26 | 118.03 | 0.4783 | -704.0 | -628.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -6.87 | 215.61 | -25.15 | 112.45 | 0.4585 | -734.0 | -572.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -7.68 | 215.56 | -25.20 | 114.03 | 0.4640 | -929.0 | -675.9 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -8.27 | 215.48 | -25.28 | 115.14 | 0.4687 | -672.0 | -578.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -5.73 | 215.43 | -25.33 | 109.97 | 0.4548 | -812.0 | -708.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -5.49 | 215.27 | -25.49 | 109.35 | 0.4559 | -663.0 | -465.7 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -6.98 | 215.06 | -25.71 | 112.23 | 0.4670 | -750.0 | -627.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.08 | 215.07 | -25.69 | 110.43 | 0.4618 | -863.0 | -643.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -8.76 | 214.80 | -25.96 | 115.49 | 0.4813 | -937.0 | -704.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -7.11 | 214.84 | -25.92 | 112.32 | 0.4708 | -790.0 | -514.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -6.77 | 214.86 | -25.90 | 111.66 | 0.4686 | -797.0 | -664.0 | |
| 9.08 | 123.51 | 5.08 | 69.36 | -6.30 | 214.86 | -25.90 | 110.72 | 0.4661 | -1287.0 | -385.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -8.24 | 214.46 | -26.30 | 114.21 | 0.4828 | -844.0 | -683.6 | |
| 27.79 | -75.00 | 15.61 | -75.00 | -6.41 | 214.41 | -26.36 | 110.60 | 0.4732 | -1071.6 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -7.99 | 214.30 | -26.46 | 113.62 | 0.4835 | -830.0 | -675.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.77 | 214.32 | -26.44 | 113.22 | 0.4820 | -866.0 | -638.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -4.22 | 214.37 | -26.39 | 106.11 | 0.4632 | -958.0 | -844.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -4.44 | 214.33 | -26.43 | 106.54 | 0.4648 | -788.0 | -573.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.44 | 214.03 | -26.73 | 114.25 | 0.4900 | -726.0 | -609.0 | |
| 0.00 | 2.91 | 0.00 | 1.62 | -4.04 | 214.28 | -26.48 | 105.68 | 0.4639 | -906.0 | -794.7 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -7.07 | 214.09 | -26.67 | 111.67 | 0.4813 | -834.0 | -646.6 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -8.56 | 213.88 | -26.88 | 114.37 | 0.4928 | -547.0 | -481.5 | |
| 0.00 | 4.00 | 0.00 | 2.27 | -8.28 | 213.87 | -26.89 | 113.84 | 0.4913 | -617.0 | -674.3 | |
| 0.00 | 3.18 | 0.00 | 1.78 | -4.04 | 214.07 | -26.69 | 105.57 | 0.4670 | -829.0 | -721.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -7.79 | 213.87 | -26.89 | 112.89 | 0.4884 | -678.0 | -571.4 | |
| 0.00 | 4.27 | 0.00 | 2.42 | -7.23 | 213.77 | -26.99 | 111.75 | 0.4867 | -730.0 | -636.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -7.82 | 213.70 | -27.07 | 112.83 | 0.4911 | -628.0 | -489.8 | |
| 0.00 | 3.36 | 0.00 | 1.92 | -8.57 | 213.60 | -27.16 | 114.17 | 0.4967 | -645.0 | -472.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -7.80 | 213.49 | -27.27 | 112.63 | 0.4938 | -759.0 | -615.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.61 | 213.47 | -27.29 | 112.26 | 0.4931 | -555.0 | -457.9 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -8.11 | 213.33 | -27.43 | 113.10 | 0.4979 | -585.0 | -516.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -6.63 | 213.22 | -27.54 | 110.20 | 0.4913 | -760.0 | -539.5 | |
| 0.00 | 3.63 | 0.00 | 2.10 | -9.87 | 212.79 | -27.97 | 115.90 | 0.5156 | -843.0 | -734.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -10.19 | 212.62 | -28.14 | 116.33 | 0.5199 | -620.0 | -542.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.11 | 211.67 | -29.09 | 118.82 | 0.5447 | 813.0 | 692.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -7.87 | 211.98 | -28.78 | 111.70 | 0.5153 | -483.0 | -476.6 | |
| 0.00 | 2.91 | 0.00 | 1.70 | -10.54 | 211.56 | -29.20 | 116.10 | 0.5362 | -600.0 | -452.0 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -8.25 | 211.78 | -28.98 | 112.24 | 0.5202 | -678.0 | -570.2 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -12.78 | 210.47 | -30.29 | 118.96 | 0.5644 | -774.0 | -584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
