SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.72 | 0.00 | 6.75 | 6.14 | 259.57 | 19.36 | 276.51 | 0.3396 | 770.7 | 627.8 | |
|
previous
or next observation for the same group /

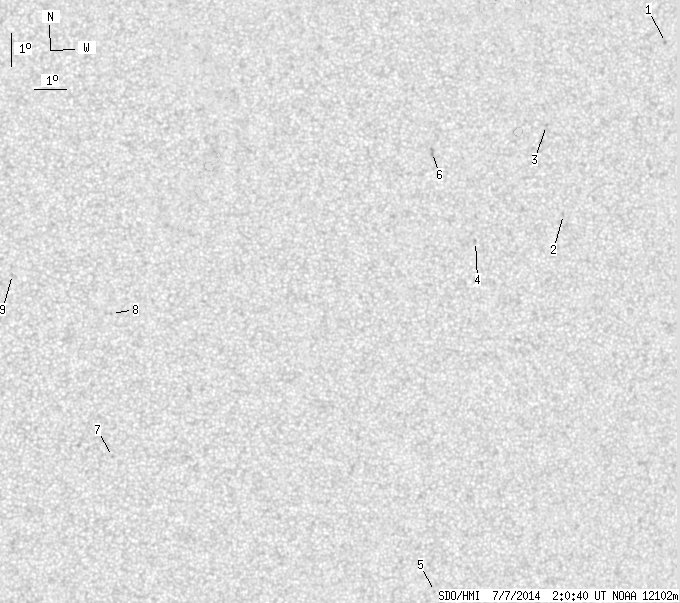

back to the solar disc SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.87 | 11.49 | 267.36 | 27.15 | 288.01 | 0.4721 | 827.0 | 633.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 6.32 | 263.48 | 23.27 | 277.82 | 0.3980 | 758.0 | 566.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 9.05 | 263.07 | 22.86 | 284.78 | 0.3985 | 790.0 | 591.5 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 5.56 | 260.54 | 20.33 | 276.53 | 0.3496 | 672.0 | 601.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -5.11 | 259.18 | 18.97 | 245.65 | 0.3569 | 737.0 | 567.4 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 8.31 | 259.26 | 19.05 | 285.07 | 0.3359 | 938.0 | 747.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -0.80 | 248.99 | 8.78 | 243.97 | 0.1706 | 784.0 | 631.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 3.56 | 248.98 | 8.77 | 270.58 | 0.1528 | 757.0 | 547.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 4.77 | 245.94 | 5.73 | 282.65 | 0.1025 | 673.0 | 529.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
