SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.35 | 33.35 | 12.59 | 33.63 | -13.49 | 298.78 | 58.57 | 252.35 | 0.8724 | 203.2 | 58.9 | |
|
previous
or next observation for the same group /

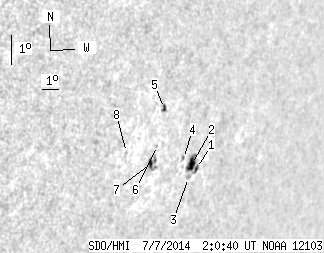

back to the solar disc SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 15.35 | 1.44 | 16.03 | -13.87 | 300.22 | 60.01 | 252.26 | 0.8847 | 164.6 | 337.7 | |
| 7.18 | -1.00 | 7.47 | -1.00 | -13.72 | 299.84 | 59.63 | 252.34 | 0.8815 | 608.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.90 | -14.14 | 299.83 | 59.62 | 251.88 | 0.8821 | 321.0 | 276.6 | |
| 0.00 | 1.82 | 0.00 | 1.85 | -13.50 | 299.25 | 59.04 | 252.45 | 0.8765 | 521.0 | 458.6 | |
| 1.45 | 3.27 | 1.40 | 3.14 | -11.83 | 297.51 | 57.30 | 253.95 | 0.8591 | -235.4 | -143.2 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -12.99 | 297.50 | 57.29 | 252.62 | 0.8612 | -306.0 | -282.0 | |
| 2.36 | 9.45 | 2.28 | 9.16 | -13.55 | 297.30 | 57.09 | 251.93 | 0.8605 | -532.1 | -262.2 | |
| 0.00 | 0.82 | 0.00 | 0.76 | -13.12 | 295.78 | 55.57 | 252.04 | 0.8465 | -407.0 | -347.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
