SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.61 | 51.51 | 16.97 | 44.36 | -7.57 | 294.06 | 53.85 | 258.19 | 0.8197 | 85.7 | -56.1 | |
|
previous
or next observation for the same group /

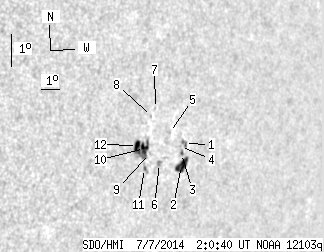

back to the solar disc SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.00 | 0.00 | 3.55 | -7.35 | 295.37 | 55.16 | 258.72 | 0.8321 | 665.0 | 438.9 | |
| 9.17 | 11.90 | 8.17 | 10.60 | -8.03 | 295.34 | 55.13 | 257.91 | 0.8329 | 539.8 | 312.8 | |
| 0.54 | 1.73 | 0.48 | 1.53 | -7.65 | 295.26 | 55.05 | 258.34 | 0.8316 | 535.7 | 490.8 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -7.43 | 295.17 | 54.96 | 258.59 | 0.8303 | 593.0 | 532.4 | |
| 0.00 | 1.63 | 0.00 | 1.42 | -6.96 | 294.50 | 54.29 | 259.02 | 0.8231 | 566.0 | 364.4 | |
| 0.00 | 2.91 | 0.00 | 2.51 | -7.90 | 294.14 | 53.93 | 257.81 | 0.8212 | 270.0 | 192.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -6.17 | 293.64 | 53.43 | 259.80 | 0.8134 | -367.0 | -345.3 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -6.41 | 293.47 | 53.26 | 259.48 | 0.8121 | -319.0 | -293.9 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -7.56 | 293.55 | 53.34 | 258.10 | 0.8149 | 334.0 | 269.7 | |
| 5.09 | 22.52 | 4.29 | 18.94 | -7.39 | 293.27 | 53.05 | 258.25 | 0.8117 | -425.3 | -437.1 | |
| 0.54 | 3.91 | 0.46 | 3.32 | -8.02 | 293.38 | 53.17 | 257.51 | 0.8139 | -409.8 | -270.3 | |
| 4.27 | -10.00 | 3.57 | -10.00 | -7.28 | 292.89 | 52.68 | 258.30 | 0.8077 | -643.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
