SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.45 | 703.72 | 67.37 | 410.75 | -11.81 | 268.28 | 28.07 | 240.81 | 0.5302 | 216.5 | 53.7 | |
|
previous
or next observation for the same group /

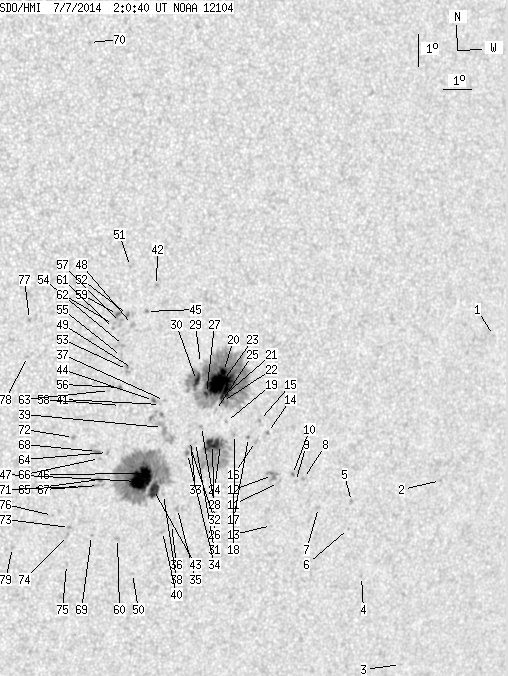

back to the solar disc SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.60 | -9.21 | 279.44 | 39.23 | 251.68 | 0.6598 | 497.0 | 412.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -13.73 | 278.05 | 37.84 | 244.53 | 0.6623 | 612.0 | 526.8 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -19.68 | 277.82 | 37.60 | 236.40 | 0.6921 | 639.0 | 573.4 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -16.71 | 275.53 | 35.32 | 238.84 | 0.6494 | 604.0 | 476.4 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -14.27 | 274.68 | 34.46 | 241.73 | 0.6249 | 719.0 | 558.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -15.13 | 274.72 | 34.51 | 240.51 | 0.6305 | 403.0 | 328.5 | |
| 0.00 | 2.09 | 0.00 | 1.30 | -14.41 | 273.45 | 33.24 | 240.69 | 0.6110 | 344.0 | 292.3 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -13.46 | 272.73 | 32.52 | 241.61 | 0.5965 | 754.0 | 580.3 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -13.55 | 272.45 | 32.24 | 241.28 | 0.5935 | 631.0 | 477.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -13.32 | 272.30 | 32.09 | 241.52 | 0.5903 | 863.0 | 795.5 | |
| 0.00 | 2.54 | 0.00 | 1.55 | -13.56 | 271.82 | 31.61 | 240.81 | 0.5858 | 237.0 | 297.2 | |
| 0.00 | 7.63 | 0.00 | 4.64 | -13.33 | 271.57 | 31.36 | 240.98 | 0.5812 | 703.0 | 706.9 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -14.93 | 271.78 | 31.56 | 238.70 | 0.5942 | 570.0 | 506.7 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -11.95 | 271.20 | 30.99 | 242.87 | 0.5681 | 712.0 | 578.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -11.56 | 270.86 | 30.65 | 243.26 | 0.5614 | 639.0 | 555.6 | |
| 0.00 | 2.45 | 0.00 | 1.47 | -12.22 | 270.80 | 30.59 | 242.14 | 0.5646 | 495.0 | 431.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -12.09 | 270.53 | 30.31 | 242.16 | 0.5603 | 699.0 | 570.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -11.97 | 270.01 | 29.80 | 241.94 | 0.5529 | 552.0 | 481.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -11.55 | 269.67 | 29.46 | 242.38 | 0.5459 | 513.0 | 373.2 | |
| 3.91 | 265.85 | 2.28 | 155.52 | -9.97 | 269.40 | 29.18 | 244.84 | 0.5326 | 1134.5 | 393.1 | |
| 2.18 | -20.00 | 1.28 | -20.00 | -10.76 | 269.44 | 29.23 | 243.53 | 0.5380 | 705.0 | 999999 | |
| 1.36 | -20.00 | 0.80 | -20.00 | -10.92 | 269.46 | 29.25 | 243.28 | 0.5392 | 713.5 | 999999 | |
| 39.87 | -20.00 | 23.33 | -20.00 | -10.38 | 269.33 | 29.12 | 244.10 | 0.5342 | 1157.5 | 999999 | |
| 1.36 | 78.66 | 0.81 | 46.53 | -12.28 | 269.54 | 29.33 | 241.08 | 0.5489 | 699.9 | 167.1 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -11.19 | 269.24 | 29.03 | 242.64 | 0.5380 | 290.0 | 283.0 | |
| 12.08 | -24.00 | 7.13 | -24.00 | -12.27 | 269.25 | 29.04 | 240.87 | 0.5452 | 909.1 | 999999 | |
| 1.45 | -20.00 | 0.85 | -20.00 | -10.65 | 268.86 | 28.65 | 243.28 | 0.5296 | 1060.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -11.68 | 268.79 | 28.58 | 241.46 | 0.5354 | 768.0 | 625.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -9.70 | 268.56 | 28.35 | 244.70 | 0.5197 | 321.0 | 288.5 | |
| 5.36 | -20.00 | 3.11 | -20.00 | -10.23 | 268.47 | 28.25 | 243.69 | 0.5217 | 1201.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.18 | 268.64 | 28.43 | 240.50 | 0.5367 | 650.0 | 526.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -12.34 | 268.48 | 28.27 | 240.11 | 0.5357 | 749.0 | 601.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -12.12 | 268.45 | 28.24 | 240.46 | 0.5339 | 771.0 | 595.7 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -12.52 | 268.39 | 28.18 | 239.73 | 0.5359 | 695.0 | 570.9 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -14.27 | 268.26 | 28.05 | 236.78 | 0.5468 | -642.0 | -485.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.78 | 268.12 | 27.90 | 235.85 | 0.5489 | -551.0 | -476.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -10.82 | 267.40 | 27.19 | 241.77 | 0.5114 | 781.0 | 647.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -13.81 | 267.70 | 27.49 | 237.01 | 0.5365 | -621.0 | -451.4 | |
| 0.00 | 24.61 | 0.00 | 14.23 | -11.67 | 267.42 | 27.21 | 240.31 | 0.5174 | -327.0 | -36.9 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -14.99 | 267.82 | 27.61 | 235.25 | 0.5470 | -598.0 | -593.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -10.94 | 267.27 | 27.06 | 241.45 | 0.5105 | 689.0 | 537.0 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -7.22 | 266.84 | 26.63 | 247.99 | 0.4815 | 757.0 | 594.0 | |
| 10.90 | 219.53 | 6.36 | 127.26 | -13.64 | 267.33 | 27.11 | 236.94 | 0.5305 | -856.4 | -511.6 | |
| 0.64 | 1.82 | 0.36 | 1.04 | -10.81 | 267.02 | 26.81 | 241.46 | 0.5062 | 907.3 | 761.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -8.02 | 266.54 | 26.33 | 246.22 | 0.4819 | 862.0 | 714.6 | |
| 12.81 | -43.00 | 7.43 | -43.00 | -13.12 | 266.98 | 26.77 | 237.47 | 0.5223 | -1270.3 | 999999 | |
| 22.16 | -43.00 | 12.85 | -43.00 | -13.36 | 266.77 | 26.55 | 236.86 | 0.5215 | -1237.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -8.41 | 266.09 | 25.88 | 245.10 | 0.4780 | 887.0 | 733.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -9.78 | 266.20 | 25.99 | 242.60 | 0.4883 | 618.0 | 512.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -16.32 | 266.95 | 26.73 | 232.36 | 0.5473 | -630.0 | -449.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -6.60 | 265.91 | 25.70 | 248.51 | 0.4648 | 718.0 | 530.6 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -8.09 | 265.90 | 25.69 | 245.55 | 0.4733 | 932.0 | 866.0 | |
| 0.00 | 3.54 | 0.00 | 2.01 | -9.81 | 266.03 | 25.82 | 242.40 | 0.4862 | 874.0 | 743.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.05 | 265.83 | 25.62 | 243.64 | 0.4785 | 838.0 | 725.6 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -9.40 | 265.79 | 25.58 | 242.95 | 0.4802 | 762.0 | 598.1 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -10.37 | 265.83 | 25.62 | 241.19 | 0.4874 | 706.0 | 612.0 | |
| 0.00 | 3.45 | 0.00 | 1.94 | -8.33 | 265.68 | 25.46 | 244.89 | 0.4717 | 786.0 | 685.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -10.94 | 265.89 | 25.67 | 240.21 | 0.4921 | 536.0 | 401.5 | |
| 0.64 | 3.27 | 0.36 | 1.83 | -8.08 | 265.56 | 25.35 | 245.28 | 0.4685 | 1070.4 | 848.6 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -15.17 | 266.25 | 26.04 | 233.43 | 0.5297 | -826.0 | -635.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.51 | 265.45 | 25.24 | 244.34 | 0.4697 | 769.0 | 619.1 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -8.39 | 265.44 | 25.23 | 244.58 | 0.4688 | 688.0 | 526.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.45 | 265.46 | 25.25 | 240.69 | 0.4831 | 617.0 | 475.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -12.41 | 265.58 | 25.37 | 237.31 | 0.4992 | -739.0 | -662.2 | |
| 0.73 | 2.72 | 0.42 | 1.56 | -13.26 | 265.39 | 25.18 | 235.67 | 0.5036 | -926.0 | -647.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -12.59 | 265.32 | 25.11 | 236.73 | 0.4973 | -525.0 | -450.7 | |
| 0.00 | 3.63 | 0.00 | 2.08 | -13.45 | 265.38 | 25.17 | 235.33 | 0.5049 | -624.0 | -523.3 | |
| 0.00 | 3.81 | 0.00 | 2.17 | -12.37 | 265.20 | 24.99 | 236.99 | 0.4939 | -983.0 | -795.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -15.05 | 265.33 | 25.12 | 232.66 | 0.5176 | -552.0 | -549.2 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 0.32 | 264.36 | 24.15 | 262.98 | 0.4139 | 593.0 | 465.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.47 | 264.76 | 24.55 | 234.65 | 0.4974 | 725.0 | 537.6 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -11.90 | 264.36 | 24.15 | 236.95 | 0.4796 | -910.0 | -727.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -14.77 | 264.53 | 24.32 | 232.24 | 0.5057 | -865.0 | -606.3 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -15.03 | 264.49 | 24.28 | 231.78 | 0.5074 | -673.0 | -541.0 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -15.96 | 264.57 | 24.36 | 230.40 | 0.5167 | -606.0 | -501.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -14.37 | 263.90 | 23.68 | 232.18 | 0.4946 | -647.0 | -541.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.16 | 262.60 | 22.38 | 242.33 | 0.4274 | -787.0 | -668.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.31 | 262.60 | 22.39 | 239.96 | 0.4360 | -722.0 | -539.3 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -15.36 | 262.64 | 22.42 | 229.07 | 0.4888 | -775.0 | -585.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
