SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 24.52 | 1.01 | 12.46 | 7.19 | 252.25 | 12.04 | 287.63 | 0.2182 | 528.0 | 475.1 | |
|
previous
or next observation for the same group /

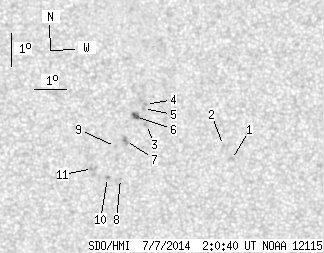

back to the solar disc SDO HMI 2014-07-07 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.35 | 6.62 | 255.08 | 14.87 | 282.43 | 0.2621 | -786.0 | -704.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 7.05 | 254.84 | 14.63 | 284.25 | 0.2597 | -803.0 | -591.6 | |
| 0.00 | 3.27 | 0.00 | 1.66 | 7.73 | 252.43 | 12.22 | 289.65 | 0.2236 | 475.0 | 562.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 8.34 | 252.41 | 12.20 | 292.23 | 0.2270 | 831.0 | 756.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.22 | 252.35 | 12.14 | 291.83 | 0.2252 | 801.0 | 657.6 | |
| 2.00 | 4.54 | 1.01 | 2.31 | 7.97 | 252.09 | 11.88 | 291.22 | 0.2196 | 1121.2 | 836.9 | |
| 0.00 | 3.63 | 0.00 | 1.84 | 7.25 | 251.75 | 11.54 | 288.49 | 0.2102 | 1007.0 | 786.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.09 | 251.57 | 11.36 | 283.26 | 0.2021 | 776.0 | 707.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 7.07 | 251.43 | 11.22 | 288.11 | 0.2041 | 837.0 | 703.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.12 | 251.16 | 10.95 | 283.89 | 0.1954 | 941.0 | 793.8 | |
| 0.00 | 3.91 | 0.00 | 1.97 | 6.40 | 250.70 | 10.49 | 285.89 | 0.1889 | 602.0 | 661.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
