SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.18 | 24.09 | 2.05 | 15.39 | 11.60 | 278.45 | 38.79 | 284.13 | 0.6353 | -404.2 | -334.4 | |
|
previous
or next observation for the same group /

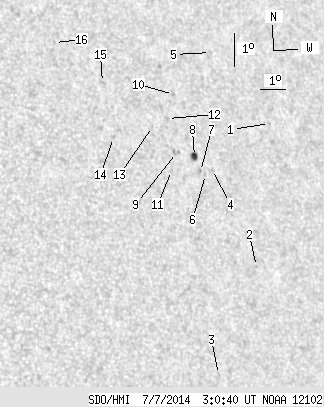

back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.68 | 12.06 | 282.31 | 42.65 | 283.94 | 0.6849 | -563.0 | -447.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 7.71 | 281.07 | 41.41 | 277.67 | 0.6637 | -672.0 | -622.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 4.48 | 279.24 | 39.57 | 272.78 | 0.6381 | -431.0 | -376.8 | |
| 0.00 | 0.55 | 0.00 | 0.35 | 10.74 | 279.71 | 40.04 | 282.48 | 0.6497 | -679.0 | -543.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 14.35 | 280.31 | 40.65 | 287.77 | 0.6650 | -318.0 | -327.9 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 10.60 | 279.40 | 39.74 | 282.32 | 0.6454 | -522.0 | -492.4 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 10.70 | 279.21 | 39.55 | 282.51 | 0.6432 | -656.0 | -516.5 | |
| 3.18 | 4.81 | 2.05 | 3.10 | 11.17 | 279.05 | 39.38 | 283.27 | 0.6418 | -793.2 | -600.7 | |
| 0.00 | 3.91 | 0.00 | 2.49 | 11.32 | 278.35 | 38.69 | 283.66 | 0.6330 | -675.0 | -637.0 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 13.11 | 278.54 | 38.88 | 286.40 | 0.6395 | -615.0 | -494.9 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 10.78 | 278.06 | 38.40 | 282.87 | 0.6282 | -719.0 | -623.3 | |
| 0.00 | 1.82 | 0.00 | 1.16 | 12.38 | 278.17 | 38.51 | 285.36 | 0.6329 | -671.0 | -493.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 12.16 | 277.53 | 37.87 | 285.18 | 0.6241 | -507.0 | -427.5 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 11.88 | 275.96 | 36.30 | 285.16 | 0.6024 | 617.0 | 552.7 | |
| 0.00 | 2.18 | 0.00 | 1.35 | 13.58 | 275.82 | 36.16 | 288.00 | 0.6052 | 620.0 | 423.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 14.89 | 274.20 | 34.54 | 290.75 | 0.5881 | 525.0 | 429.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
