SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.52 | 0.00 | 7.79 | 7.40 | 261.60 | 21.94 | 280.89 | 0.3787 | 745.7 | 571.2 | |
|
previous
or next observation for the same group /

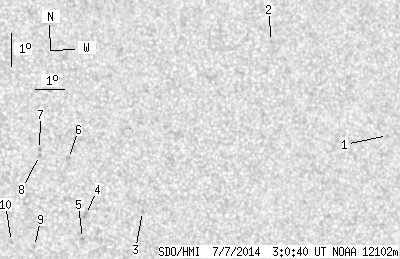

back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.74 | 8.50 | 271.17 | 31.51 | 280.51 | 0.5277 | 570.0 | 438.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 11.51 | 267.34 | 27.68 | 287.78 | 0.4799 | 732.0 | 537.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 6.43 | 262.54 | 22.88 | 278.18 | 0.3919 | 832.0 | 648.0 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 6.38 | 260.65 | 20.99 | 278.63 | 0.3616 | 860.0 | 698.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 5.65 | 260.52 | 20.86 | 276.64 | 0.3583 | 781.0 | 618.6 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 8.10 | 260.18 | 20.51 | 283.58 | 0.3585 | 648.0 | 490.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 8.40 | 259.24 | 19.58 | 284.96 | 0.3446 | 728.0 | 565.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 8.22 | 259.23 | 19.57 | 284.45 | 0.3438 | 799.0 | 577.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 5.44 | 258.95 | 19.29 | 276.42 | 0.3323 | 775.0 | 573.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 5.61 | 258.21 | 18.55 | 277.14 | 0.3204 | 732.0 | 531.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
