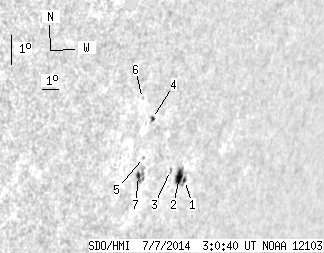

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.54 | 29.17 | 10.97 | 29.94 | -13.45 | 298.79 | 59.12 | 252.52 | 0.8768 | 231.3 | 10.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 14.90 | 0.88 | 15.85 | -13.90 | 300.26 | 60.60 | 252.36 | 0.8893 | 85.0 | 281.3 | |
| 7.09 | -1.00 | 7.51 | -1.00 | -13.75 | 299.88 | 60.21 | 252.43 | 0.8861 | 583.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.70 | -13.52 | 299.21 | 59.55 | 252.54 | 0.8806 | 429.0 | 430.1 | |
| 1.09 | 2.09 | 1.06 | 2.04 | -11.79 | 297.48 | 57.82 | 254.11 | 0.8634 | -315.8 | -353.6 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -13.01 | 297.38 | 57.71 | 252.69 | 0.8647 | -297.0 | -262.4 | |
| 0.00 | 1.09 | 0.00 | 1.04 | -11.12 | 296.68 | 57.02 | 254.70 | 0.8554 | -220.0 | -239.2 | |
| 1.54 | 8.45 | 1.52 | 8.33 | -13.58 | 297.29 | 57.63 | 252.03 | 0.8651 | -527.1 | -260.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
