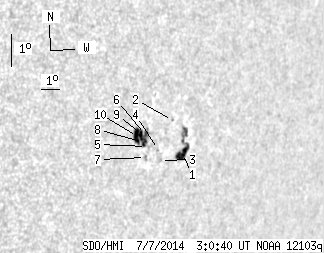

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.99 | 51.42 | 21.76 | 45.07 | -7.77 | 294.22 | 54.56 | 258.09 | 0.8269 | -112.3 | 213.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.45 | 22.62 | 8.55 | 20.43 | -8.05 | 295.40 | 55.74 | 258.00 | 0.8387 | 551.0 | 512.4 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -6.99 | 294.65 | 54.99 | 259.11 | 0.8300 | 464.0 | 436.4 | |
| 0.00 | 2.09 | 0.00 | 1.84 | -8.21 | 294.24 | 54.57 | 257.57 | 0.8280 | 398.0 | 257.0 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -7.86 | 294.06 | 54.40 | 257.96 | 0.8257 | -162.0 | -55.6 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -7.73 | 293.40 | 53.74 | 257.97 | 0.8191 | 83.0 | 58.6 | |
| 2.00 | 22.25 | 1.71 | 18.94 | -7.35 | 293.28 | 53.62 | 258.40 | 0.8173 | -306.7 | -234.3 | |
| 0.00 | 2.09 | 0.00 | 1.80 | -8.07 | 293.41 | 53.75 | 257.56 | 0.8198 | -423.0 | -312.4 | |
| 3.36 | -6.00 | 2.87 | -6.00 | -7.60 | 293.22 | 53.56 | 258.10 | 0.8171 | -386.6 | 999999 | |
| 3.00 | -6.00 | 2.55 | -6.00 | -7.34 | 293.07 | 53.41 | 258.37 | 0.8152 | -712.8 | 999999 | |
| 7.18 | -6.00 | 6.08 | -6.00 | -7.39 | 292.87 | 53.21 | 258.27 | 0.8133 | -760.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
