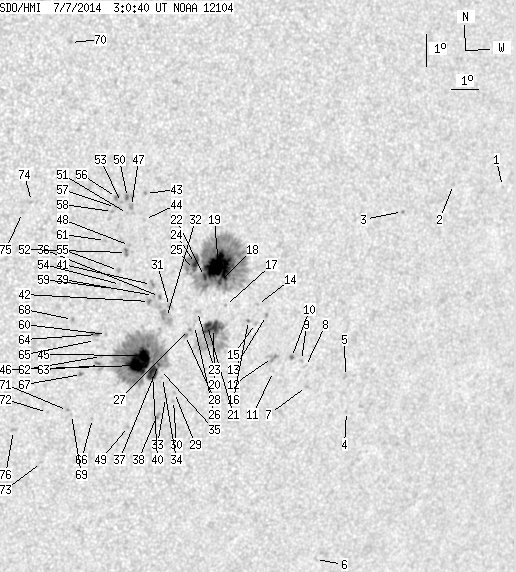

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.19 | 662.47 | 69.94 | 388.61 | -11.86 | 268.24 | 28.58 | 241.14 | 0.5371 | 202.5 | 41.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.55 | 0.00 | 0.36 | -8.25 | 279.81 | 40.15 | 253.45 | 0.6680 | 368.0 | 357.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -8.11 | 277.84 | 38.18 | 252.88 | 0.6426 | 609.0 | 464.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.87 | 275.95 | 36.29 | 250.87 | 0.6212 | 446.0 | 537.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -15.15 | 274.75 | 35.09 | 240.87 | 0.6375 | 517.0 | 362.2 | |
| 0.00 | 2.09 | 0.00 | 1.33 | -14.02 | 274.51 | 34.84 | 242.33 | 0.6281 | 648.0 | 562.7 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -19.96 | 274.60 | 34.94 | 234.21 | 0.6659 | 558.0 | 405.6 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -14.28 | 273.07 | 33.41 | 240.99 | 0.6123 | 666.0 | 562.4 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -13.64 | 272.92 | 33.26 | 241.85 | 0.6067 | 514.0 | 376.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -13.44 | 272.74 | 33.08 | 242.02 | 0.6033 | 713.0 | 581.4 | |
| 0.73 | 2.00 | 0.45 | 1.23 | -13.33 | 272.35 | 32.69 | 241.92 | 0.5979 | 859.9 | 719.4 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -13.76 | 271.75 | 32.09 | 240.84 | 0.5930 | 657.0 | 471.4 | |
| 0.00 | 5.63 | 0.00 | 3.45 | -13.31 | 271.64 | 31.98 | 241.45 | 0.5889 | 777.0 | 719.1 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -11.96 | 271.24 | 31.57 | 243.26 | 0.5757 | 713.0 | 542.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -11.60 | 270.86 | 31.20 | 243.57 | 0.5688 | 661.0 | 556.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -12.20 | 270.86 | 31.20 | 242.62 | 0.5724 | 584.0 | 546.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -12.10 | 270.60 | 30.93 | 242.59 | 0.5684 | 744.0 | 612.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -11.60 | 269.70 | 30.04 | 242.74 | 0.5538 | 556.0 | 421.0 | |
| 2.09 | 254.34 | 1.23 | 149.61 | -10.83 | 269.40 | 29.74 | 243.78 | 0.5451 | 674.9 | 404.6 | |
| 42.78 | -18.00 | 25.17 | -18.00 | -10.36 | 269.31 | 29.65 | 244.52 | 0.5412 | 1181.2 | 999999 | |
| 12.35 | 68.85 | 7.34 | 40.97 | -12.31 | 269.36 | 29.69 | 241.31 | 0.5538 | 830.3 | 140.8 | |
| 3.82 | -20.00 | 2.26 | -20.00 | -12.21 | 269.13 | 29.47 | 241.29 | 0.5503 | 978.3 | 999999 | |
| 2.36 | -18.00 | 1.38 | -18.00 | -10.66 | 268.85 | 29.18 | 243.66 | 0.5368 | 1049.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.39 | -11.75 | 268.72 | 29.05 | 241.72 | 0.5420 | 801.0 | 636.6 | |
| 4.00 | -18.00 | 2.33 | -18.00 | -10.24 | 268.48 | 28.82 | 244.11 | 0.5294 | 1224.6 | 999999 | |
| 0.64 | -18.00 | 0.37 | -18.00 | -10.42 | 268.47 | 28.80 | 243.77 | 0.5303 | 915.4 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -12.19 | 268.66 | 29.00 | 240.94 | 0.5442 | 659.0 | 566.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -12.32 | 268.50 | 28.84 | 240.61 | 0.5429 | 728.0 | 655.6 | |
| 0.00 | 2.00 | 0.00 | 1.18 | -12.50 | 268.38 | 28.71 | 240.20 | 0.5426 | 680.0 | 598.5 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -14.31 | 268.22 | 28.56 | 237.16 | 0.5534 | -720.0 | -494.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -14.57 | 268.22 | 28.56 | 236.76 | 0.5553 | -649.0 | -479.6 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -11.56 | 267.70 | 28.04 | 241.20 | 0.5276 | 692.0 | 470.9 | |
| 0.00 | 11.90 | 0.00 | 6.94 | -11.91 | 267.63 | 27.97 | 240.56 | 0.5290 | -556.0 | -451.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -14.46 | 267.92 | 28.25 | 236.66 | 0.5508 | -506.0 | -335.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -13.82 | 267.72 | 28.06 | 237.51 | 0.5437 | -584.0 | -499.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -13.56 | 267.62 | 27.96 | 237.83 | 0.5405 | -298.0 | -399.6 | |
| 0.36 | 1.73 | 0.21 | 1.00 | -11.24 | 267.31 | 27.65 | 241.44 | 0.5203 | 637.0 | 549.7 | |
| 1.45 | 223.00 | 0.85 | 129.88 | -13.40 | 267.53 | 27.86 | 238.01 | 0.5382 | -862.4 | -494.8 | |
| 0.00 | 3.36 | 0.00 | 1.99 | -15.06 | 267.68 | 28.02 | 235.50 | 0.5525 | -640.0 | -647.2 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -11.20 | 267.10 | 27.44 | 241.32 | 0.5173 | 663.0 | 618.3 | |
| 10.45 | -37.00 | 6.13 | -37.00 | -13.65 | 267.34 | 27.68 | 237.44 | 0.5377 | -852.3 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.41 | -10.85 | 267.00 | 27.33 | 241.84 | 0.5135 | 752.0 | 583.7 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -11.38 | 266.98 | 27.32 | 240.89 | 0.5169 | 780.0 | 623.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.99 | 266.55 | 26.88 | 246.69 | 0.4896 | 803.0 | 680.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.80 | 266.57 | 26.91 | 245.18 | 0.4947 | 633.0 | 525.4 | |
| 14.99 | -37.00 | 8.74 | -37.00 | -13.09 | 266.96 | 27.30 | 237.99 | 0.5288 | -1292.7 | 999999 | |
| 21.98 | -37.00 | 12.81 | -37.00 | -13.41 | 266.78 | 27.12 | 237.32 | 0.5290 | -1204.1 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.90 | -8.38 | 266.09 | 26.43 | 245.58 | 0.4855 | 870.0 | 707.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -9.60 | 266.12 | 26.46 | 243.33 | 0.4935 | 776.0 | 673.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -15.36 | 266.72 | 27.06 | 234.15 | 0.5433 | -637.0 | -516.9 | |
| 0.64 | 1.82 | 0.36 | 1.03 | -8.10 | 265.93 | 26.27 | 246.00 | 0.4816 | 923.6 | 853.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.60 | 265.97 | 26.31 | 245.08 | 0.4851 | 789.0 | 622.6 | |
| 0.00 | 3.27 | 0.00 | 1.86 | -9.82 | 266.03 | 26.37 | 242.86 | 0.4938 | 917.0 | 743.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.25 | 265.74 | 26.08 | 245.55 | 0.4798 | 944.0 | 782.9 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -10.82 | 265.91 | 26.25 | 240.94 | 0.4990 | 447.0 | 371.2 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -10.38 | 265.80 | 26.14 | 241.64 | 0.4945 | 746.0 | 642.1 | |
| 0.00 | 2.73 | 0.00 | 1.53 | -8.09 | 265.55 | 25.89 | 245.71 | 0.4762 | 1025.0 | 883.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.40 | 265.54 | 25.88 | 245.10 | 0.4780 | 722.0 | 639.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.52 | 265.45 | 25.79 | 244.79 | 0.4774 | 752.0 | 578.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -10.94 | 265.65 | 25.99 | 240.49 | 0.4963 | 400.0 | 495.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -12.39 | 265.58 | 25.92 | 237.89 | 0.5061 | -746.0 | -541.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -9.42 | 265.28 | 25.61 | 242.93 | 0.4809 | 645.0 | 481.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -13.08 | 265.49 | 25.82 | 236.61 | 0.5102 | -655.0 | -499.0 | |
| 0.00 | 4.54 | 0.00 | 2.62 | -13.37 | 265.45 | 25.79 | 236.09 | 0.5120 | -818.0 | -749.5 | |
| 0.55 | 3.91 | 0.31 | 2.23 | -12.38 | 265.27 | 25.61 | 237.59 | 0.5020 | -969.7 | -778.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -12.57 | 265.22 | 25.56 | 237.22 | 0.5029 | -510.0 | -347.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -15.06 | 265.41 | 25.75 | 233.30 | 0.5253 | -770.0 | -630.0 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -13.64 | 264.85 | 25.19 | 235.04 | 0.5068 | 893.0 | 695.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -11.88 | 264.36 | 24.70 | 237.55 | 0.4865 | -851.0 | -673.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -14.91 | 264.66 | 24.99 | 232.75 | 0.5150 | -614.0 | -486.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -3.25 | 263.78 | 24.12 | 254.57 | 0.4249 | 742.0 | 539.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -14.78 | 264.50 | 24.84 | 232.79 | 0.5120 | -840.0 | -622.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.82 | 263.81 | 24.15 | 231.96 | 0.5042 | -605.0 | -500.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -16.43 | 263.81 | 24.14 | 229.42 | 0.5186 | -678.0 | -528.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -8.13 | 262.68 | 23.02 | 243.01 | 0.4362 | -739.0 | -578.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.47 | 262.40 | 22.74 | 242.03 | 0.4346 | -710.0 | -471.8 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -15.37 | 262.70 | 23.04 | 229.79 | 0.4961 | -684.0 | -597.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
