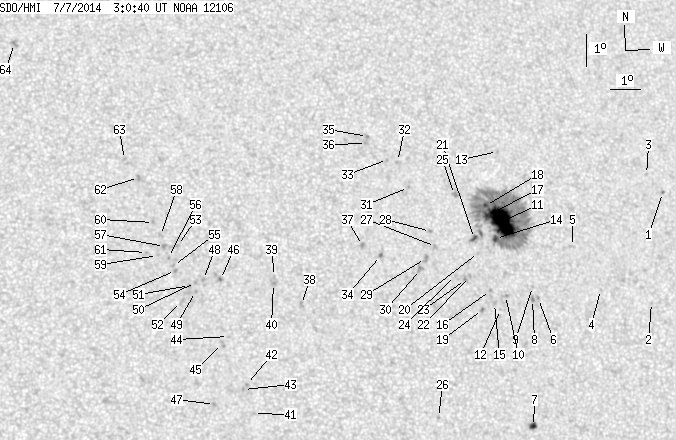

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.22 | 362.09 | 28.44 | 195.66 | 14.82 | 260.14 | 20.48 | 301.17 | 0.3960 | -280.4 | -225.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.73 | 15.95 | 267.42 | 27.76 | 296.37 | 0.5018 | -727.0 | -625.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.55 | 266.58 | 26.91 | 290.31 | 0.4730 | -687.0 | -584.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 16.53 | 266.93 | 27.27 | 297.80 | 0.4986 | -743.0 | -609.0 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 13.00 | 264.85 | 25.19 | 292.34 | 0.4502 | -505.0 | -524.2 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 14.36 | 264.04 | 24.37 | 295.81 | 0.4459 | -733.0 | -572.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 12.78 | 262.70 | 23.04 | 293.47 | 0.4178 | -792.0 | -639.6 | |
| 2.73 | 4.63 | 1.47 | 2.49 | 8.85 | 262.21 | 22.55 | 284.44 | 0.3929 | -943.0 | -687.2 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 12.75 | 262.49 | 22.83 | 293.58 | 0.4147 | -937.0 | -803.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 13.15 | 262.53 | 22.87 | 294.45 | 0.4175 | -666.0 | -539.2 | |
| 0.00 | 2.54 | 0.00 | 1.38 | 12.90 | 261.59 | 21.93 | 294.68 | 0.4024 | -779.0 | -747.0 | |
| 43.51 | 253.25 | 23.72 | 138.15 | 15.19 | 261.73 | 22.07 | 299.68 | 0.4191 | -1320.0 | -392.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.47 | 261.39 | 21.73 | 293.86 | 0.3969 | -715.0 | -574.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 17.38 | 261.82 | 22.16 | 304.12 | 0.4366 | 713.0 | 620.7 | |
| 2.63 | -11.00 | 1.43 | -11.00 | 14.67 | 261.43 | 21.77 | 298.84 | 0.4114 | -787.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 12.66 | 261.20 | 21.54 | 294.47 | 0.3953 | -770.0 | -641.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 13.06 | 261.11 | 21.44 | 295.51 | 0.3963 | -847.0 | -692.0 | |
| 0.27 | -11.00 | 0.15 | -11.00 | 15.39 | 261.21 | 21.54 | 300.66 | 0.4133 | -1233.3 | 999999 | |
| 1.54 | -11.00 | 0.84 | -11.00 | 15.70 | 261.21 | 21.55 | 301.33 | 0.4156 | -1017.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 12.48 | 260.78 | 21.12 | 294.43 | 0.3881 | -1000.0 | -864.6 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 14.25 | 260.81 | 21.15 | 298.54 | 0.3998 | -699.0 | -531.1 | |
| 1.54 | 4.09 | 0.83 | 2.21 | 14.68 | 260.72 | 21.06 | 299.62 | 0.4016 | -1007.7 | -826.1 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 13.51 | 260.44 | 20.78 | 297.22 | 0.3896 | -832.0 | -676.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 13.42 | 260.30 | 20.64 | 297.15 | 0.3869 | -918.0 | -690.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 13.55 | 259.98 | 20.31 | 297.80 | 0.3832 | -738.0 | -606.7 | |
| 0.00 | 3.18 | 0.00 | 1.72 | 16.07 | 260.19 | 20.53 | 303.26 | 0.4048 | 356.0 | 26.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 9.20 | 259.09 | 19.43 | 287.33 | 0.3454 | 736.0 | 560.9 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 14.47 | 259.39 | 19.73 | 300.61 | 0.3814 | -853.0 | -666.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 14.93 | 259.27 | 19.61 | 301.84 | 0.3833 | -883.0 | -688.8 | |
| 0.00 | 3.91 | 0.00 | 2.08 | 14.10 | 259.02 | 19.36 | 300.18 | 0.3736 | -818.0 | -762.2 | |
| 0.00 | 3.36 | 0.00 | 1.79 | 13.76 | 258.83 | 19.17 | 299.60 | 0.3683 | -927.0 | -794.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 16.32 | 258.67 | 19.01 | 305.72 | 0.3866 | 621.0 | 514.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.14 | 258.38 | 18.72 | 307.88 | 0.3903 | 581.0 | 501.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 17.21 | 258.05 | 18.39 | 308.50 | 0.3867 | 714.0 | 511.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 14.22 | 257.54 | 17.88 | 302.37 | 0.3539 | 858.0 | 697.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.95 | 257.46 | 17.80 | 310.91 | 0.3864 | 845.0 | 711.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.73 | 257.40 | 17.74 | 310.54 | 0.3835 | 739.0 | 648.3 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 14.54 | 256.97 | 17.31 | 303.96 | 0.3488 | 818.0 | 669.0 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 12.75 | 254.85 | 15.19 | 302.47 | 0.3042 | 808.0 | 636.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.63 | 254.03 | 14.37 | 306.35 | 0.3008 | 722.0 | 558.0 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 13.42 | 253.99 | 14.32 | 305.84 | 0.2982 | 881.0 | 668.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.43 | 253.14 | 13.48 | 294.48 | 0.2537 | 651.0 | 581.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 10.32 | 252.95 | 13.29 | 297.96 | 0.2573 | 759.0 | 638.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 10.17 | 252.85 | 13.19 | 297.60 | 0.2546 | 918.0 | 709.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.81 | 252.45 | 12.79 | 303.91 | 0.2622 | 495.0 | 399.6 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 11.59 | 252.25 | 12.59 | 303.61 | 0.2575 | 637.0 | 593.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 13.57 | 252.29 | 12.62 | 309.63 | 0.2771 | 926.0 | 797.9 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 9.72 | 251.91 | 12.25 | 297.63 | 0.2371 | 847.0 | 663.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 13.58 | 251.74 | 12.08 | 310.86 | 0.2702 | 866.0 | 669.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.21 | 251.47 | 11.80 | 310.42 | 0.2627 | 951.0 | 791.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.49 | 251.48 | 11.82 | 311.20 | 0.2659 | 956.0 | 704.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.40 | 251.28 | 11.62 | 311.40 | 0.2624 | 1016.0 | 857.0 | |
| 0.00 | 3.63 | 0.00 | 1.86 | 12.90 | 251.00 | 11.34 | 310.60 | 0.2536 | 333.0 | 328.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.64 | 250.96 | 11.30 | 315.67 | 0.2725 | 767.0 | 624.7 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 13.87 | 250.86 | 11.20 | 313.80 | 0.2623 | 1071.0 | 852.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.02 | 250.80 | 11.14 | 314.38 | 0.2634 | 897.0 | 709.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.27 | 250.66 | 10.99 | 315.44 | 0.2646 | 974.0 | 792.1 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 14.61 | 250.54 | 10.88 | 316.65 | 0.2673 | 938.0 | 774.3 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 14.96 | 250.43 | 10.77 | 317.84 | 0.2702 | 782.0 | 576.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.34 | 250.31 | 10.64 | 316.53 | 0.2613 | 824.0 | 611.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.37 | 250.23 | 10.57 | 319.40 | 0.2729 | 856.0 | 711.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.44 | 249.96 | 10.30 | 317.72 | 0.2584 | 730.0 | 557.3 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 16.78 | 249.82 | 10.16 | 323.74 | 0.2868 | 843.0 | 672.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.35 | 249.40 | 9.74 | 326.05 | 0.2904 | 568.0 | 504.2 | |
| 0.00 | 4.09 | 0.00 | 2.14 | 21.05 | 246.00 | 6.34 | 341.14 | 0.3201 | 988.0 | 712.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
