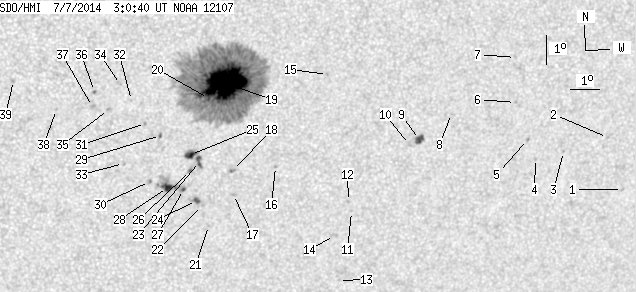

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.56 | 657.29 | 61.93 | 367.61 | -19.34 | 255.47 | 15.81 | 213.58 | 0.4662 | 678.6 | 347.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.64 | -22.89 | 270.11 | 30.45 | 226.90 | 0.6417 | -602.0 | -543.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -21.10 | 269.13 | 29.46 | 228.28 | 0.6170 | 316.0 | 335.0 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -21.52 | 267.57 | 27.91 | 226.27 | 0.6048 | 763.0 | 609.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -21.72 | 266.58 | 26.92 | 225.02 | 0.5967 | 408.0 | 366.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -21.07 | 266.16 | 26.49 | 225.42 | 0.5865 | 690.0 | 599.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -19.82 | 265.49 | 25.83 | 226.39 | 0.5682 | 593.0 | 500.0 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -18.33 | 265.24 | 25.58 | 228.20 | 0.5519 | -551.0 | -455.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -20.12 | 263.25 | 23.59 | 223.48 | 0.5482 | 645.0 | 521.0 | |
| 4.45 | 6.81 | 2.63 | 4.03 | -20.97 | 262.25 | 22.59 | 221.18 | 0.5469 | 856.4 | 621.8 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -21.12 | 261.93 | 22.26 | 220.58 | 0.5454 | 739.0 | 488.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -23.35 | 260.23 | 20.57 | 215.73 | 0.5544 | -701.0 | -620.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.00 | 260.07 | 20.40 | 215.92 | 0.5491 | -772.0 | -631.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -25.73 | 260.17 | 20.51 | 213.05 | 0.5808 | -593.0 | -495.0 | |
| 0.00 | 3.45 | 0.00 | 2.06 | -24.16 | 259.75 | 20.09 | 214.21 | 0.5597 | -75.0 | -165.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.72 | 258.75 | 19.09 | 219.54 | 0.4886 | -841.0 | -704.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.76 | 257.34 | 17.68 | 213.62 | 0.5115 | -739.0 | -640.8 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -22.68 | 256.01 | 16.35 | 210.60 | 0.5122 | -868.0 | -683.5 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -21.86 | 255.88 | 16.22 | 211.30 | 0.5009 | -848.0 | -714.0 | |
| 87.66 | 566.81 | 48.85 | 315.63 | -18.95 | 255.33 | 15.67 | 213.91 | 0.4598 | 1395.5 | 428.0 | |
| 0.27 | -19.00 | 0.15 | -19.00 | -19.44 | 254.81 | 15.15 | 212.42 | 0.4615 | 857.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -23.72 | 255.27 | 15.61 | 208.40 | 0.5200 | -636.0 | -618.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.03 | 254.98 | 15.32 | 208.66 | 0.5091 | -429.0 | -446.6 | |
| 3.18 | 13.08 | 1.80 | 7.40 | -21.54 | 254.72 | 15.05 | 209.82 | 0.4878 | 708.3 | 554.9 | |
| 1.82 | 4.91 | 1.04 | 2.81 | -22.86 | 254.76 | 15.10 | 208.49 | 0.5052 | -1038.9 | -787.3 | |
| 5.45 | -23.00 | 3.08 | -23.00 | -21.30 | 254.39 | 14.72 | 209.55 | 0.4822 | 800.0 | 999999 | |
| 0.55 | 2.73 | 0.31 | 1.55 | -21.83 | 254.44 | 14.78 | 209.05 | 0.4896 | 625.3 | 405.7 | |
| 0.82 | 22.25 | 0.47 | 12.64 | -22.47 | 254.27 | 14.61 | 208.11 | 0.4967 | -657.2 | -599.1 | |
| 5.81 | -27.00 | 3.30 | -27.00 | -22.40 | 253.72 | 14.06 | 207.29 | 0.4918 | -1062.0 | 999999 | |
| 0.55 | 1.91 | 0.30 | 1.07 | -20.64 | 253.31 | 13.65 | 208.45 | 0.4655 | 658.0 | 576.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.18 | 253.09 | 13.43 | 206.45 | 0.4846 | -896.0 | -755.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.23 | 252.78 | 13.11 | 207.95 | 0.4561 | 729.0 | 568.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -19.46 | 252.25 | 12.59 | 207.84 | 0.4417 | -703.0 | -540.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.56 | 252.15 | 12.49 | 205.46 | 0.4699 | -536.0 | -588.2 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -18.92 | 251.84 | 12.18 | 207.68 | 0.4314 | -602.0 | -451.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.75 | 251.51 | 11.85 | 206.14 | 0.4404 | 827.0 | 649.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -19.14 | 251.00 | 11.34 | 205.81 | 0.4285 | -836.0 | -745.6 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -19.64 | 250.97 | 11.31 | 205.22 | 0.4352 | 132.0 | 100.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.72 | 249.79 | 10.13 | 202.80 | 0.4289 | -759.0 | -576.3 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -18.75 | 248.33 | 8.67 | 200.67 | 0.4059 | -707.0 | -668.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
