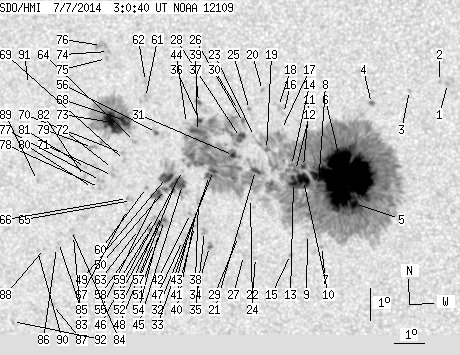

SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 342.20 | 1850.11 | 183.83 | 995.23 | -7.82 | 220.35 | -19.31 | 120.87 | 0.3827 | 484.5 | 163.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -5.00 | 225.44 | -14.23 | 120.87 | 0.2864 | 893.0 | 792.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -4.95 | 225.19 | -14.48 | 120.25 | 0.2896 | 752.0 | 685.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -5.24 | 224.23 | -15.43 | 119.51 | 0.3059 | 755.0 | 513.2 | |
| 0.64 | 3.09 | 0.33 | 1.62 | -5.66 | 223.00 | -16.66 | 118.82 | 0.3270 | -824.4 | -582.4 | |
| 6.36 | 1511.14 | 3.38 | 807.53 | -8.77 | 222.33 | -17.33 | 125.52 | 0.3632 | 1148.3 | 297.6 | |
| 201.02 | -5.00 | 106.68 | -5.00 | -8.00 | 222.05 | -17.61 | 123.29 | 0.3601 | 1641.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.14 | 221.18 | -18.48 | 126.75 | 0.3910 | 514.0 | 415.7 | |
| 0.27 | -5.00 | 0.15 | -5.00 | -8.23 | 221.19 | -18.47 | 122.60 | 0.3737 | 838.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.77 | 220.75 | -18.91 | 125.35 | 0.3933 | 471.0 | 295.8 | |
| 16.62 | -5.00 | 8.89 | -5.00 | -8.09 | 220.71 | -18.95 | 121.61 | 0.3791 | 953.8 | 999999 | |
| 2.09 | -5.00 | 1.12 | -5.00 | -7.65 | 220.73 | -18.93 | 120.64 | 0.3752 | 759.7 | 999999 | |
| 1.73 | -5.00 | 0.92 | -5.00 | -7.78 | 220.47 | -19.19 | 120.58 | 0.3800 | 831.7 | 999999 | |
| 8.27 | -5.00 | 4.43 | -5.00 | -8.15 | 220.38 | -19.28 | 121.32 | 0.3842 | 696.2 | 999999 | |
| 1.00 | -5.00 | 0.53 | -5.00 | -7.63 | 220.34 | -19.32 | 120.07 | 0.3805 | 866.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -10.41 | 220.15 | -19.51 | 125.84 | 0.4069 | -982.0 | -795.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.02 | 220.15 | -19.51 | 116.03 | 0.3712 | 697.0 | 588.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.52 | 220.07 | -19.59 | 117.13 | 0.3759 | 183.0 | 152.7 | |
| 0.00 | 4.72 | 0.00 | 2.52 | -5.81 | 220.00 | -19.66 | 115.33 | 0.3719 | 156.0 | 75.7 | |
| 0.73 | -5.00 | 0.39 | -5.00 | -7.15 | 219.55 | -20.11 | 117.99 | 0.3880 | 949.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.32 | 219.50 | -20.17 | 113.60 | 0.3762 | 853.0 | 711.3 | |
| 4.00 | -5.00 | 2.16 | -5.00 | -7.81 | 219.16 | -20.50 | 119.02 | 0.3985 | 953.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.53 | 218.99 | -20.67 | 124.53 | 0.4231 | -493.0 | -509.4 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -6.75 | 219.18 | -20.49 | 116.65 | 0.3905 | 187.0 | 144.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -8.68 | 218.94 | -20.72 | 120.67 | 0.4083 | -608.0 | -624.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -5.92 | 219.05 | -20.61 | 114.56 | 0.3867 | -915.0 | -730.6 | |
| 0.00 | 3.91 | 0.00 | 2.10 | -6.32 | 218.83 | -20.83 | 115.29 | 0.3925 | 831.0 | 752.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.47 | 218.59 | -21.07 | 123.92 | 0.4278 | 675.0 | 576.9 | |
| 5.63 | -5.00 | 3.04 | -5.00 | -6.79 | 218.71 | -20.95 | 116.23 | 0.3974 | 990.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -9.88 | 218.47 | -21.19 | 122.58 | 0.4244 | -777.0 | -618.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.96 | 218.69 | -20.98 | 114.28 | 0.3922 | 696.0 | 591.5 | |
| 2.82 | -5.00 | 1.52 | -5.00 | -7.36 | 218.46 | -21.21 | 117.22 | 0.4051 | 975.7 | 999999 | |
| 2.54 | -5.00 | 1.39 | -5.00 | -7.84 | 217.77 | -21.89 | 117.52 | 0.4183 | -1088.0 | 999999 | |
| 3.18 | -5.00 | 1.74 | -5.00 | -7.99 | 217.63 | -22.03 | 117.71 | 0.4214 | -939.8 | 999999 | |
| 0.91 | 3.09 | 0.50 | 1.70 | -10.21 | 217.48 | -22.18 | 122.08 | 0.4404 | -1058.7 | -869.5 | |
| 0.00 | 4.18 | 0.00 | 2.30 | -9.75 | 217.35 | -22.32 | 121.01 | 0.4384 | -925.0 | -736.5 | |
| 1.82 | -5.00 | 0.99 | -5.00 | -6.29 | 217.38 | -22.28 | 113.76 | 0.4134 | -1035.8 | 999999 | |
| 1.18 | 2.91 | 0.64 | 1.58 | -5.74 | 217.38 | -22.29 | 112.50 | 0.4101 | -1111.5 | -891.0 | |
| 0.00 | 3.45 | 0.00 | 1.90 | -8.81 | 217.21 | -22.45 | 118.97 | 0.4332 | -719.0 | -676.1 | |
| 7.54 | -5.00 | 4.11 | -5.00 | -6.64 | 217.30 | -22.36 | 114.44 | 0.4168 | -444.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.19 | 217.08 | -22.58 | 119.60 | 0.4377 | -703.0 | -637.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.60 | 217.02 | -22.64 | 120.35 | 0.4417 | -666.0 | -524.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.19 | 216.92 | -22.75 | 119.43 | 0.4400 | -792.0 | -717.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.98 | 216.76 | -22.90 | 120.82 | 0.4481 | -588.0 | -416.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.40 | 216.95 | -22.71 | 113.58 | 0.4204 | -891.0 | -728.6 | |
| 4.36 | 63.49 | 2.40 | 35.03 | -8.30 | 216.71 | -22.95 | 117.39 | 0.4364 | -1045.0 | -635.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -7.86 | 216.73 | -22.93 | 116.51 | 0.4330 | -683.0 | -584.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -10.05 | 216.58 | -23.08 | 120.76 | 0.4510 | -640.0 | -544.2 | |
| 9.17 | -45.00 | 5.06 | -45.00 | -8.27 | 216.47 | -23.19 | 117.10 | 0.4395 | -1083.8 | 999999 | |
| 9.36 | -45.00 | 5.16 | -45.00 | -8.09 | 216.18 | -23.48 | 116.45 | 0.4423 | -1094.9 | 999999 | |
| 1.73 | -45.00 | 0.95 | -45.00 | -8.47 | 216.13 | -23.54 | 117.15 | 0.4457 | -979.3 | 999999 | |
| 1.18 | 9.90 | 0.66 | 5.50 | -9.43 | 216.02 | -23.64 | 118.98 | 0.4540 | -1051.4 | -798.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -9.28 | 215.93 | -23.73 | 118.59 | 0.4541 | -778.0 | -658.8 | |
| 1.45 | -51.00 | 0.81 | -51.00 | -9.53 | 215.85 | -23.81 | 118.99 | 0.4571 | -980.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -9.85 | 215.79 | -23.87 | 119.54 | 0.4602 | -858.0 | -732.2 | |
| 5.81 | -45.00 | 3.22 | -45.00 | -8.63 | 215.85 | -23.82 | 117.21 | 0.4507 | -917.3 | 999999 | |
| 1.09 | 3.09 | 0.60 | 1.70 | -6.70 | 215.93 | -23.73 | 113.31 | 0.4370 | -1054.9 | -784.5 | |
| 0.00 | 2.73 | 0.00 | 1.52 | -10.13 | 215.63 | -24.03 | 119.93 | 0.4644 | -570.0 | -450.5 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -9.35 | 215.69 | -23.97 | 118.48 | 0.4579 | -828.0 | -666.3 | |
| 0.55 | 2.36 | 0.30 | 1.32 | -9.73 | 215.53 | -24.13 | 119.05 | 0.4629 | -781.5 | -610.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.42 | 215.49 | -24.17 | 116.45 | 0.4543 | -855.0 | -699.1 | |
| 0.00 | 7.36 | 0.00 | 4.05 | -5.63 | 215.61 | -24.05 | 110.75 | 0.4354 | -783.0 | -661.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -5.13 | 215.64 | -24.03 | 109.69 | 0.4325 | -743.0 | -675.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -9.74 | 215.12 | -24.54 | 118.67 | 0.4685 | -602.0 | -545.9 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -7.00 | 215.17 | -24.49 | 113.28 | 0.4497 | -920.0 | -773.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.84 | 214.95 | -24.71 | 116.77 | 0.4646 | -900.0 | -744.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.78 | 214.82 | -24.84 | 116.54 | 0.4660 | -902.0 | -806.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.12 | 214.79 | -24.87 | 117.18 | 0.4686 | -487.0 | -399.2 | |
| 10.17 | 136.98 | 5.64 | 76.20 | -6.35 | 214.87 | -24.79 | 111.70 | 0.4504 | -1239.2 | -366.5 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -7.60 | 214.80 | -24.86 | 114.18 | 0.4587 | -801.0 | -612.6 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -7.38 | 214.74 | -24.92 | 113.70 | 0.4582 | -904.0 | -752.0 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -8.07 | 214.36 | -25.30 | 114.75 | 0.4679 | -881.0 | -706.0 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -7.86 | 214.37 | -25.29 | 114.33 | 0.4663 | -852.0 | -639.6 | |
| 28.98 | -68.00 | 16.12 | -68.00 | -6.43 | 214.43 | -25.24 | 111.50 | 0.4572 | -1073.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -4.24 | 214.42 | -25.24 | 106.89 | 0.4462 | -998.0 | -794.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -4.46 | 214.35 | -25.31 | 107.31 | 0.4483 | -876.0 | -674.4 | |
| 0.00 | 6.81 | 0.00 | 3.77 | -4.06 | 214.19 | -25.47 | 106.36 | 0.4489 | -711.0 | -697.2 | |
| 0.00 | 2.91 | 0.00 | 1.63 | -8.24 | 213.94 | -25.72 | 114.72 | 0.4748 | -645.0 | -701.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -8.46 | 213.89 | -25.77 | 115.10 | 0.4769 | -551.0 | -536.2 | |
| 0.00 | 3.72 | 0.00 | 2.09 | -7.22 | 213.73 | -25.93 | 112.56 | 0.4716 | -781.0 | -620.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -8.47 | 213.65 | -26.02 | 114.91 | 0.4803 | -572.0 | -448.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.85 | 213.45 | -26.21 | 113.56 | 0.4793 | -649.0 | -530.6 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -8.13 | 213.40 | -26.27 | 114.06 | 0.4817 | -590.0 | -548.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -9.99 | 212.86 | -26.80 | 117.08 | 0.5007 | -908.0 | -815.9 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -9.83 | 212.81 | -26.85 | 116.75 | 0.5004 | -785.0 | -671.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -10.22 | 212.32 | -27.34 | 117.04 | 0.5095 | -619.0 | -538.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -10.38 | 212.24 | -27.43 | 117.25 | 0.5117 | -583.0 | -469.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -12.18 | 211.90 | -27.76 | 120.08 | 0.5282 | 847.0 | 715.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -10.42 | 211.81 | -27.85 | 116.98 | 0.5176 | -527.0 | -477.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -8.30 | 211.76 | -27.91 | 113.12 | 0.5056 | -707.0 | -577.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -10.49 | 211.56 | -28.10 | 116.90 | 0.5214 | -630.0 | -505.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -5.33 | 211.64 | -28.03 | 107.40 | 0.4922 | -680.0 | -512.8 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -12.77 | 210.41 | -29.25 | 119.78 | 0.5512 | -775.0 | -550.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
