SDO HMI 2014-07-07 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 346.59 | 2176.73 | 174.99 | 1099.79 | -7.29 | 239.74 | 0.63 | 182.85 | 0.1961 | -69.8 | 101.6 | |
|
previous
or next observation for the same group /

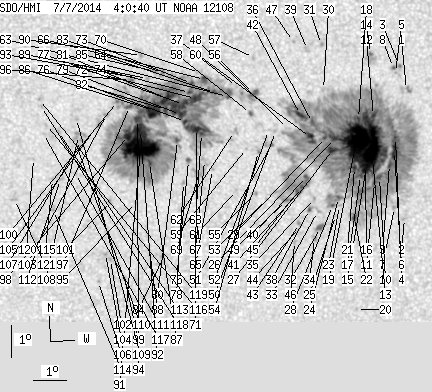

back to the solar disc SDO HMI 2014-07-07 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.45 | 0.00 | 2.75 | -5.73 | 243.83 | 4.71 | 206.99 | 0.1810 | 702.0 | 584.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.74 | 243.81 | 4.69 | 199.39 | 0.2440 | -119.0 | -228.5 | |
| 0.36 | 4.54 | 0.18 | 2.28 | -4.99 | 243.61 | 4.50 | 207.85 | 0.1679 | -840.5 | -549.4 | |
| 1.18 | 1204.23 | 0.60 | 609.02 | -7.21 | 243.50 | 4.39 | 202.19 | 0.2019 | 1156.8 | 501.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.20 | 243.49 | 4.37 | 206.62 | 0.1703 | -577.0 | -495.5 | |
| 7.09 | -4.00 | 3.59 | -4.00 | -7.65 | 243.47 | 4.36 | 201.28 | 0.2086 | 1263.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.39 | 243.49 | 4.38 | 198.64 | 0.2367 | 672.0 | 428.8 | |
| 0.64 | -3.00 | 0.32 | -3.00 | -5.05 | 243.42 | 4.31 | 206.71 | 0.1674 | -853.4 | 999999 | |
| 2.82 | -4.00 | 1.43 | -4.00 | -8.05 | 243.32 | 4.21 | 199.94 | 0.2142 | 1002.7 | 999999 | |
| 2.82 | -4.00 | 1.43 | -4.00 | -8.45 | 243.02 | 3.91 | 198.00 | 0.2190 | 837.6 | 999999 | |
| 1.54 | -4.00 | 0.78 | -4.00 | -8.61 | 242.87 | 3.75 | 197.13 | 0.2207 | 804.6 | 999999 | |
| 2.82 | -4.00 | 1.42 | -4.00 | -6.53 | 242.82 | 3.71 | 200.22 | 0.1867 | 1072.8 | 999999 | |
| 39.06 | -4.00 | 19.76 | -4.00 | -7.52 | 242.76 | 3.65 | 198.26 | 0.2024 | 1497.0 | 999999 | |
| 0.55 | 10.45 | 0.27 | 5.24 | -4.61 | 242.72 | 3.60 | 203.90 | 0.1554 | -968.8 | -354.0 | |
| 8.18 | -4.00 | 4.14 | -4.00 | -8.08 | 242.61 | 3.50 | 196.75 | 0.2108 | 1202.5 | 999999 | |
| 4.63 | -4.00 | 2.35 | -4.00 | -8.20 | 242.58 | 3.47 | 196.44 | 0.2127 | 1168.4 | 999999 | |
| 2.00 | -4.00 | 1.01 | -4.00 | -8.39 | 242.43 | 3.32 | 195.52 | 0.2150 | 1065.0 | 999999 | |
| 1.09 | -4.00 | 0.55 | -4.00 | -6.62 | 242.36 | 3.25 | 197.73 | 0.1856 | 1298.1 | 999999 | |
| 51.87 | -4.00 | 26.20 | -4.00 | -7.27 | 242.30 | 3.19 | 196.43 | 0.1960 | 1661.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -12.60 | 242.35 | 3.23 | 191.22 | 0.2842 | 776.0 | 536.4 | |
| 1.27 | -4.00 | 0.64 | -4.00 | -8.14 | 242.24 | 3.13 | 194.99 | 0.2101 | 1184.5 | 999999 | |
| 2.82 | -4.00 | 1.44 | -4.00 | -9.70 | 242.26 | 3.14 | 193.30 | 0.2360 | 1008.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.32 | 241.79 | 2.68 | 191.72 | 0.2280 | 672.0 | 575.2 | |
| 1.73 | -4.00 | 0.88 | -4.00 | -9.07 | 241.76 | 2.64 | 191.81 | 0.2237 | 826.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.63 | 241.67 | 2.55 | 190.93 | 0.2328 | 656.0 | 441.5 | |
| 2.36 | -4.00 | 1.19 | -4.00 | -7.23 | 241.62 | 2.51 | 193.11 | 0.1924 | 1141.4 | 999999 | |
| 5.09 | -4.00 | 2.57 | -4.00 | -7.57 | 241.56 | 2.45 | 192.42 | 0.1979 | 1072.0 | 999999 | |
| 1.00 | -4.00 | 0.51 | -4.00 | -9.32 | 241.57 | 2.46 | 190.79 | 0.2272 | 819.4 | 999999 | |
| 1.64 | -4.00 | 0.83 | -4.00 | -7.20 | 241.35 | 2.23 | 191.74 | 0.1909 | 1100.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -5.72 | 241.28 | 2.17 | 193.20 | 0.1656 | -336.0 | -153.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -4.33 | 241.22 | 2.10 | 195.01 | 0.1420 | 1044.0 | 852.0 | |
| 2.63 | 4.91 | 1.34 | 2.50 | -10.01 | 241.21 | 2.09 | 188.74 | 0.2377 | 921.4 | 674.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.50 | 241.11 | 2.00 | 188.67 | 0.2290 | 585.0 | 521.8 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -10.35 | 241.02 | 1.91 | 187.78 | 0.2431 | 754.0 | 645.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.10 | 241.02 | 1.90 | 188.54 | 0.2219 | 941.0 | 741.2 | |
| 2.82 | -4.00 | 1.42 | -4.00 | -6.73 | 240.95 | 1.83 | 190.12 | 0.1817 | 1186.5 | 999999 | |
| 8.18 | -4.00 | 4.12 | -4.00 | -7.20 | 240.89 | 1.77 | 189.37 | 0.1894 | 1197.7 | 999999 | |
| 0.91 | 1.91 | 0.46 | 0.97 | -9.44 | 240.86 | 1.75 | 187.65 | 0.2274 | 799.9 | 628.3 | |
| 0.00 | 3.63 | 0.00 | 1.82 | -4.48 | 240.79 | 1.68 | 191.83 | 0.1429 | 768.0 | 674.6 | |
| 1.36 | -4.00 | 0.69 | -4.00 | -8.41 | 240.77 | 1.65 | 187.86 | 0.2097 | 1206.9 | 999999 | |
| 1.54 | -4.00 | 0.78 | -4.00 | -8.75 | 240.64 | 1.53 | 187.08 | 0.2152 | 1144.0 | 999999 | |
| 4.00 | -4.00 | 2.01 | -4.00 | -6.49 | 240.58 | 1.46 | 188.31 | 0.1764 | 1216.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.88 | 240.56 | 1.44 | 186.11 | 0.2341 | 740.0 | 624.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.00 | 240.56 | 1.44 | 186.05 | 0.2363 | -3.0 | 3.6 | |
| 1.54 | -4.00 | 0.78 | -4.00 | -8.88 | 240.49 | 1.38 | 186.31 | 0.2170 | 997.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.44 | 240.40 | 1.29 | 185.24 | 0.2434 | -772.0 | -616.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -4.23 | 240.36 | 1.25 | 189.14 | 0.1373 | 917.0 | 694.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -6.92 | 240.18 | 1.07 | 185.82 | 0.1830 | 630.0 | 434.3 | |
| 0.64 | -4.00 | 0.32 | -4.00 | -9.16 | 240.15 | 1.04 | 184.66 | 0.2212 | 1001.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.01 | 239.81 | 0.70 | 183.78 | 0.1840 | 430.0 | 382.1 | |
| 0.36 | 4.27 | 0.18 | 2.15 | -7.41 | 239.69 | 0.58 | 183.00 | 0.1908 | 956.8 | 705.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.98 | 239.60 | 0.48 | 182.63 | 0.1833 | 83.0 | 171.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.13 | 239.53 | 0.42 | 181.90 | 0.2201 | 472.0 | 279.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -7.63 | 239.29 | 0.18 | 180.90 | 0.1943 | -771.0 | -441.4 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.94 | 239.19 | 0.08 | 180.38 | 0.2168 | -742.0 | -680.7 | |
| 3.54 | 17.44 | 1.78 | 8.76 | -5.83 | 239.14 | 0.02 | 180.15 | 0.1633 | -81.6 | -124.5 | |
| 0.00 | 2.18 | 0.00 | 1.09 | -4.72 | 239.14 | 0.03 | 180.18 | 0.1441 | 752.0 | 600.1 | |
| 1.09 | 2.63 | 0.55 | 1.33 | -6.45 | 239.04 | -0.07 | 179.61 | 0.1740 | -554.0 | -326.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.54 | 238.92 | -0.19 | 179.00 | 0.1927 | -743.0 | -648.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.62 | 238.62 | -0.50 | 176.89 | 0.1598 | -628.0 | -507.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.84 | 238.61 | -0.50 | 177.68 | 0.2153 | 835.0 | 546.2 | |
| 0.00 | 4.09 | 0.00 | 2.06 | -7.01 | 238.55 | -0.56 | 176.96 | 0.1839 | 678.0 | 526.6 | |
| 1.09 | 785.44 | 0.55 | 396.19 | -5.93 | 238.34 | -0.77 | 175.33 | 0.1655 | -737.3 | -488.5 | |
| 2.63 | -63.00 | 1.32 | -63.00 | -5.80 | 237.94 | -1.17 | 172.85 | 0.1640 | -1096.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.19 | 237.87 | -1.24 | 173.97 | 0.2050 | -462.0 | -445.5 | |
| 3.91 | -63.00 | 1.96 | -63.00 | -5.40 | 237.64 | -1.48 | 170.62 | 0.1579 | 203.2 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.11 | -7.91 | 237.63 | -1.49 | 172.62 | 0.2008 | -654.0 | -517.8 | |
| 2.36 | -63.00 | 1.19 | -63.00 | -7.07 | 237.54 | -1.57 | 171.56 | 0.1867 | -999.1 | 999999 | |
| 0.00 | 11.81 | 0.00 | 5.98 | -8.25 | 237.47 | -1.64 | 172.09 | 0.2069 | -148.0 | -157.9 | |
| 0.00 | 3.45 | 0.00 | 1.73 | -5.18 | 237.49 | -1.63 | 169.42 | 0.1547 | 724.0 | 608.9 | |
| 13.81 | -63.00 | 6.96 | -63.00 | -6.92 | 237.39 | -1.73 | 170.62 | 0.1845 | -1061.4 | 999999 | |
| 9.08 | -63.00 | 4.57 | -63.00 | -5.99 | 237.36 | -1.75 | 169.56 | 0.1688 | -1229.2 | 999999 | |
| 1.27 | -63.00 | 0.64 | -63.00 | -5.52 | 237.24 | -1.87 | 168.30 | 0.1613 | 698.1 | 999999 | |
| 1.82 | -63.00 | 0.91 | -63.00 | -5.80 | 237.18 | -1.94 | 168.28 | 0.1662 | -1183.7 | 999999 | |
| 1.27 | 3.63 | 0.64 | 1.84 | -7.91 | 237.13 | -1.98 | 170.21 | 0.2020 | -862.1 | -627.7 | |
| 2.09 | -63.00 | 1.05 | -63.00 | -6.70 | 237.05 | -2.06 | 168.60 | 0.1818 | -1119.0 | 999999 | |
| 6.72 | -63.00 | 3.38 | -63.00 | -6.17 | 236.99 | -2.12 | 167.67 | 0.1732 | -1224.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.59 | 236.98 | -2.14 | 170.04 | 0.2141 | -803.0 | -626.1 | |
| 3.45 | -63.00 | 1.74 | -63.00 | -6.48 | 236.90 | -2.22 | 167.53 | 0.1787 | -1124.9 | 999999 | |
| 1.82 | -63.00 | 0.92 | -63.00 | -7.29 | 236.80 | -2.31 | 167.95 | 0.1926 | -769.5 | 999999 | |
| 10.08 | -63.00 | 5.07 | -63.00 | -5.99 | 236.47 | -2.64 | 164.49 | 0.1722 | -1325.7 | 999999 | |
| 2.27 | -63.00 | 1.14 | -63.00 | -6.33 | 236.44 | -2.68 | 164.82 | 0.1780 | -1407.4 | 999999 | |
| 0.45 | 3.45 | 0.23 | 1.73 | -5.19 | 236.35 | -2.76 | 162.42 | 0.1595 | -1028.0 | -783.4 | |
| 0.00 | 3.18 | 0.00 | 1.63 | -10.98 | 236.31 | -2.81 | 169.12 | 0.2560 | -781.0 | -667.8 | |
| 0.00 | 3.36 | 0.00 | 1.69 | -5.16 | 236.14 | -2.97 | 161.08 | 0.1602 | -929.0 | -824.6 | |
| 18.08 | -63.00 | 9.10 | -63.00 | -6.36 | 236.07 | -3.04 | 162.90 | 0.1803 | -1401.2 | 999999 | |
| 3.09 | -63.00 | 1.56 | -63.00 | -7.97 | 235.93 | -3.18 | 164.58 | 0.2076 | -883.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.69 | 235.90 | -3.21 | 167.37 | 0.2527 | -763.0 | -582.5 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -5.37 | 235.89 | -3.22 | 160.10 | 0.1651 | -872.0 | -712.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -4.66 | 235.71 | -3.40 | 157.44 | 0.1548 | -985.0 | -771.3 | |
| 57.14 | -63.00 | 28.90 | -63.00 | -7.54 | 235.66 | -3.45 | 162.70 | 0.2018 | -1429.9 | 999999 | |
| 14.08 | -63.00 | 7.11 | -63.00 | -6.98 | 235.66 | -3.45 | 161.86 | 0.1926 | -1470.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -5.37 | 235.65 | -3.47 | 158.72 | 0.1666 | -601.0 | -570.9 | |
| 5.36 | -63.00 | 2.70 | -63.00 | -6.64 | 235.58 | -3.54 | 160.83 | 0.1875 | -1215.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.22 | 235.49 | -3.63 | 164.20 | 0.2302 | -710.0 | -514.6 | |
| 0.64 | 7.54 | 0.32 | 3.79 | -5.44 | 235.40 | -3.71 | 157.50 | 0.1692 | -897.0 | -631.3 | |
| 2.91 | -63.00 | 1.46 | -63.00 | -6.24 | 235.33 | -3.78 | 158.85 | 0.1825 | -1115.1 | 999999 | |
| 9.36 | -63.00 | 4.73 | -63.00 | -7.14 | 235.29 | -3.82 | 160.33 | 0.1972 | -1231.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -11.58 | 235.11 | -4.00 | 165.30 | 0.2704 | -775.0 | -627.3 | |
| 0.64 | -63.00 | 0.32 | -63.00 | -6.08 | 234.97 | -4.15 | 156.67 | 0.1824 | -930.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.19 | 234.71 | -4.40 | 161.01 | 0.2337 | -807.0 | -713.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.01 | 234.69 | -4.43 | 163.19 | 0.2632 | -913.0 | -791.3 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -6.49 | 234.62 | -4.49 | 155.87 | 0.1911 | -1002.0 | -834.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -10.82 | 234.53 | -4.58 | 162.43 | 0.2609 | -947.0 | -834.6 | |
| 0.00 | 3.63 | 0.00 | 1.84 | -6.77 | 234.37 | -4.74 | 155.31 | 0.1973 | -986.0 | -910.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.71 | 234.30 | -4.81 | 162.62 | 0.2763 | -770.0 | -671.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.30 | 233.84 | -5.27 | 154.09 | 0.2094 | -1162.0 | -997.0 | |
| 0.00 | 6.45 | 0.00 | 3.27 | -7.14 | 233.75 | -5.36 | 153.37 | 0.2077 | -937.0 | -913.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.62 | 233.70 | -5.41 | 151.93 | 0.2001 | -821.0 | -783.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -7.42 | 233.69 | -5.43 | 153.69 | 0.2125 | -804.0 | -694.4 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.32 | 233.64 | -5.47 | 155.30 | 0.2267 | -942.0 | -652.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.51 | 233.18 | -5.94 | 153.84 | 0.2330 | -702.0 | -665.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.02 | 233.14 | -5.98 | 150.51 | 0.2108 | -937.0 | -859.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -9.48 | 232.94 | -6.17 | 154.74 | 0.2496 | -681.0 | -510.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -8.51 | 232.93 | -6.18 | 152.90 | 0.2349 | -873.0 | -641.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.81 | 232.77 | -6.34 | 148.49 | 0.2108 | -569.0 | -597.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.09 | 232.67 | -6.44 | 148.79 | 0.2158 | -693.0 | -568.9 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -6.25 | 232.62 | -6.49 | 146.44 | 0.2042 | -915.0 | -689.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.03 | 232.57 | -6.55 | 145.60 | 0.2016 | -930.0 | -708.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.86 | 232.35 | -6.76 | 149.38 | 0.2300 | -818.0 | -704.2 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.15 | 231.74 | -7.38 | 149.92 | 0.2540 | -800.0 | -708.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
