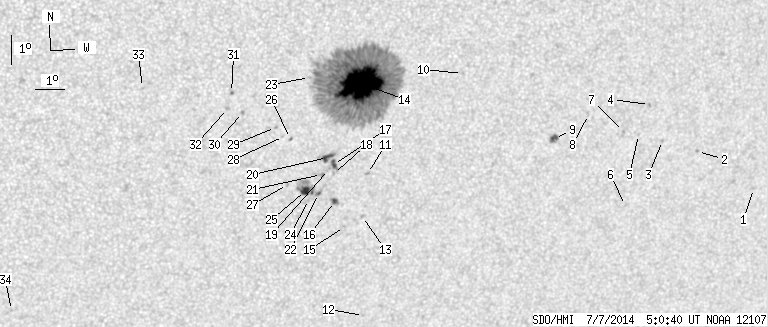

SDO HMI 2014-07-07 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.93 | 624.69 | 62.43 | 351.38 | -19.33 | 255.38 | 16.81 | 215.22 | 0.4750 | 816.2 | 355.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.01 | -22.85 | 270.05 | 31.49 | 227.83 | 0.6516 | -285.0 | -311.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -21.51 | 267.60 | 29.03 | 227.33 | 0.6162 | 724.0 | 520.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -21.10 | 266.21 | 27.64 | 226.54 | 0.5985 | 650.0 | 596.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -19.88 | 265.49 | 26.93 | 227.44 | 0.5803 | 784.0 | 638.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -20.87 | 265.28 | 26.71 | 225.90 | 0.5870 | 571.0 | 484.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -23.27 | 265.29 | 26.72 | 222.88 | 0.6092 | 162.0 | 245.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -20.75 | 264.71 | 26.14 | 225.47 | 0.5802 | 770.0 | 657.9 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -20.15 | 263.34 | 24.77 | 224.79 | 0.5605 | 578.0 | 462.6 | |
| 3.18 | 5.63 | 1.89 | 3.35 | -20.92 | 262.25 | 23.69 | 222.54 | 0.5572 | 861.1 | 664.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.67 | 258.71 | 20.15 | 221.08 | 0.4985 | -744.0 | -658.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.94 | 255.86 | 17.29 | 212.82 | 0.5107 | -795.0 | -676.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -26.85 | 256.42 | 17.85 | 208.53 | 0.5748 | -556.0 | -514.8 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -23.40 | 255.87 | 17.31 | 211.23 | 0.5287 | -654.0 | -483.0 | |
| 92.12 | 539.93 | 51.62 | 302.48 | -18.93 | 255.28 | 16.71 | 215.63 | 0.4688 | 1416.7 | 417.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -23.73 | 255.29 | 16.72 | 210.03 | 0.5284 | -460.0 | -387.0 | |
| 2.00 | 3.82 | 1.15 | 2.20 | -22.87 | 254.83 | 16.27 | 210.26 | 0.5142 | -920.0 | -680.8 | |
| 2.54 | 5.45 | 1.45 | 3.11 | -21.61 | 254.65 | 16.09 | 211.36 | 0.4969 | 762.8 | 452.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.92 | 254.69 | 16.12 | 211.08 | 0.5010 | 246.0 | 265.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -21.78 | 254.50 | 15.93 | 210.94 | 0.4978 | 519.0 | 498.5 | |
| 4.09 | 8.54 | 2.32 | 4.85 | -21.37 | 254.42 | 15.85 | 211.27 | 0.4921 | 857.8 | 564.2 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -21.94 | 254.28 | 15.71 | 210.41 | 0.4982 | 267.0 | 303.2 | |
| 0.82 | 25.35 | 0.47 | 14.49 | -22.59 | 254.25 | 15.68 | 209.67 | 0.5062 | -533.8 | -549.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.70 | 253.55 | 14.98 | 213.05 | 0.4508 | 190.0 | 178.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.78 | 253.93 | 15.36 | 208.97 | 0.5064 | -276.0 | -407.9 | |
| 6.18 | -22.00 | 3.53 | -22.00 | -22.48 | 253.79 | 15.23 | 209.08 | 0.5014 | -1113.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.71 | 253.10 | 14.53 | 209.87 | 0.4733 | 300.0 | 477.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.26 | 253.15 | 14.59 | 208.28 | 0.4939 | -629.0 | -509.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.64 | 252.86 | 14.29 | 209.54 | 0.4705 | 477.0 | 407.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.34 | 252.56 | 13.99 | 209.37 | 0.4642 | 686.0 | 659.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -19.82 | 251.41 | 12.85 | 207.91 | 0.4487 | 907.0 | 676.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.15 | 251.00 | 12.43 | 207.89 | 0.4365 | -826.0 | -743.3 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -19.68 | 250.90 | 12.34 | 207.13 | 0.4431 | 114.0 | 32.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.95 | 248.06 | 9.49 | 202.24 | 0.4138 | -442.0 | -522.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -26.50 | 244.09 | 5.52 | 189.77 | 0.5095 | -548.0 | -446.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
