SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.91 | 26.81 | 7.63 | 28.92 | -13.47 | 298.77 | 60.75 | 252.85 | 0.8895 | 166.5 | -0.8 | |
|
previous
or next observation for the same group /

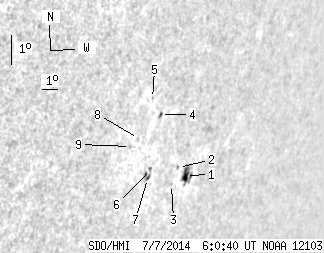

back to the solar disc SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.54 | 13.36 | 6.22 | 15.05 | -13.87 | 299.94 | 61.92 | 252.66 | 0.8991 | 562.4 | 295.8 | |
| 0.00 | 1.00 | 0.00 | 1.10 | -13.58 | 299.34 | 61.32 | 252.85 | 0.8943 | 289.0 | 302.4 | |
| 0.00 | 0.91 | 0.00 | 0.99 | -14.11 | 299.12 | 61.10 | 252.22 | 0.8935 | 230.0 | 263.3 | |
| 0.55 | 2.54 | 0.56 | 2.61 | -11.81 | 297.48 | 59.46 | 254.43 | 0.8771 | -400.8 | -273.0 | |
| 0.00 | 1.09 | 0.00 | 1.09 | -11.27 | 296.81 | 58.79 | 254.90 | 0.8708 | -341.0 | -339.8 | |
| 0.00 | 1.64 | 0.00 | 1.69 | -13.55 | 297.53 | 59.51 | 252.50 | 0.8803 | -417.0 | -398.4 | |
| 0.82 | 4.18 | 0.85 | 4.32 | -13.83 | 297.46 | 59.44 | 252.17 | 0.8803 | -421.2 | -343.0 | |
| 0.00 | 1.00 | 0.00 | 0.99 | -12.50 | 296.39 | 58.37 | 253.41 | 0.8694 | -268.0 | -220.2 | |
| 0.00 | 1.09 | 0.00 | 1.08 | -12.73 | 296.00 | 57.98 | 253.06 | 0.8665 | -139.0 | -192.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
