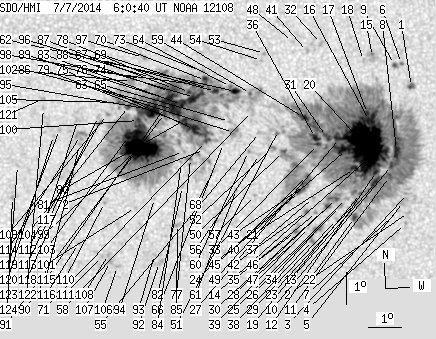

SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 407.68 | 2196.17 | 205.95 | 1109.99 | -7.22 | 239.76 | 1.74 | 188.19 | 0.1969 | 15.1 | 79.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 4.18 | 0.92 | 2.11 | -5.63 | 243.99 | 5.97 | 213.08 | 0.1906 | 1046.3 | 851.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.55 | 243.95 | 5.93 | 204.27 | 0.2490 | -769.0 | -522.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.95 | 243.91 | 5.89 | 205.15 | 0.2396 | 298.0 | 308.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.89 | 243.86 | 5.84 | 203.39 | 0.2537 | -809.0 | -584.7 | |
| 0.00 | 6.45 | 0.00 | 3.29 | -9.20 | 243.79 | 5.77 | 204.27 | 0.2425 | 100.0 | 123.2 | |
| 0.36 | 4.27 | 0.18 | 2.15 | -4.92 | 243.68 | 5.66 | 213.81 | 0.1774 | -861.8 | -751.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.48 | 243.64 | 5.62 | 203.24 | 0.2459 | 89.0 | 21.0 | |
| 8.45 | 1161.79 | 4.29 | 588.21 | -7.61 | 243.55 | 5.53 | 206.34 | 0.2163 | 1260.3 | 482.7 | |
| 1.09 | -6.00 | 0.55 | -6.00 | -4.95 | 243.46 | 5.44 | 212.70 | 0.1758 | -997.7 | 999999 | |
| 2.63 | -8.00 | 1.34 | -8.00 | -8.08 | 243.40 | 5.38 | 204.80 | 0.2224 | 980.1 | 999999 | |
| 2.82 | -8.00 | 1.43 | -8.00 | -8.42 | 243.34 | 5.32 | 203.94 | 0.2273 | 848.4 | 999999 | |
| 2.91 | -8.00 | 1.48 | -8.00 | -8.26 | 242.94 | 4.92 | 202.58 | 0.2221 | 881.4 | 999999 | |
| 5.09 | -8.00 | 2.59 | -8.00 | -8.60 | 242.91 | 4.89 | 201.88 | 0.2273 | 854.0 | 999999 | |
| 59.97 | -8.00 | 30.40 | -8.00 | -7.73 | 242.81 | 4.79 | 202.99 | 0.2129 | 1356.7 | 999999 | |
| 0.00 | 8.36 | 0.00 | 4.20 | -4.70 | 242.78 | 4.77 | 210.09 | 0.1660 | -509.0 | -334.2 | |
| 12.81 | -8.00 | 6.47 | -8.00 | -6.67 | 242.71 | 4.69 | 204.64 | 0.1956 | 1342.8 | 999999 | |
| 1.91 | -8.00 | 0.96 | -8.00 | -6.46 | 242.64 | 4.63 | 204.82 | 0.1918 | 1307.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -4.82 | 242.51 | 4.49 | 208.28 | 0.1655 | 196.0 | 42.2 | |
| 0.91 | -8.00 | 0.46 | -8.00 | -8.94 | 242.45 | 4.43 | 199.48 | 0.2300 | 962.4 | 999999 | |
| 56.60 | -8.00 | 28.63 | -8.00 | -7.20 | 242.37 | 4.36 | 202.04 | 0.2016 | 1714.4 | 999999 | |
| 4.27 | -8.00 | 2.17 | -8.00 | -8.16 | 242.26 | 4.24 | 199.87 | 0.2163 | 1167.8 | 999999 | |
| 2.54 | -8.00 | 1.30 | -8.00 | -9.69 | 242.27 | 4.26 | 197.75 | 0.2411 | 1076.6 | 999999 | |
| 0.73 | -8.00 | 0.37 | -8.00 | -9.25 | 242.27 | 4.25 | 198.31 | 0.2340 | 793.5 | 999999 | |
| 13.45 | -8.00 | 6.81 | -8.00 | -7.57 | 242.01 | 3.99 | 199.71 | 0.2053 | 1194.2 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.39 | -9.10 | 242.02 | 4.00 | 197.51 | 0.2301 | 892.0 | 723.2 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -9.34 | 241.84 | 3.82 | 196.44 | 0.2333 | 737.0 | 606.3 | |
| 4.18 | -8.00 | 2.11 | -8.00 | -7.23 | 241.79 | 3.77 | 199.27 | 0.1985 | 1157.5 | 999999 | |
| 1.45 | -8.00 | 0.74 | -8.00 | -9.09 | 241.71 | 3.69 | 196.23 | 0.2286 | 873.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.75 | 241.72 | 3.70 | 195.48 | 0.2394 | 656.0 | 554.4 | |
| 1.82 | -8.00 | 0.93 | -8.00 | -9.34 | 241.43 | 3.42 | 194.79 | 0.2314 | 879.0 | 999999 | |
| 5.63 | -8.00 | 2.85 | -8.00 | -7.16 | 241.39 | 3.37 | 197.45 | 0.1953 | 1129.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.27 | -4.29 | 241.22 | 3.20 | 202.27 | 0.1477 | 926.0 | 726.7 | |
| 2.00 | -8.00 | 1.01 | -8.00 | -7.41 | 241.11 | 3.09 | 195.75 | 0.1980 | 1179.1 | 999999 | |
| 0.00 | 5.36 | 0.00 | 2.74 | -10.06 | 241.13 | 3.11 | 192.82 | 0.2420 | 838.0 | 788.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -9.53 | 241.10 | 3.08 | 193.19 | 0.2331 | 795.0 | 699.6 | |
| 5.18 | -8.00 | 2.62 | -8.00 | -7.19 | 241.05 | 3.03 | 195.75 | 0.1942 | 1221.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.06 | 241.00 | 2.98 | 193.26 | 0.2249 | 904.0 | 727.4 | |
| 0.00 | 3.73 | 0.00 | 1.90 | -10.41 | 240.98 | 2.96 | 191.91 | 0.2472 | 804.0 | 734.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -10.00 | 240.85 | 2.83 | 191.76 | 0.2400 | 658.0 | 496.0 | |
| 0.91 | -8.00 | 0.46 | -8.00 | -8.37 | 240.81 | 2.79 | 193.15 | 0.2127 | 1192.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.09 | -4.53 | 240.79 | 2.78 | 198.99 | 0.1490 | 999.0 | 789.3 | |
| 0.64 | 2.18 | 0.32 | 1.11 | -9.50 | 240.79 | 2.77 | 191.93 | 0.2314 | 763.4 | 571.9 | |
| 4.27 | -8.00 | 2.17 | -8.00 | -8.68 | 240.72 | 2.70 | 192.42 | 0.2176 | 1106.0 | 999999 | |
| 5.45 | -8.00 | 2.75 | -8.00 | -6.57 | 240.68 | 2.66 | 194.73 | 0.1822 | 1143.1 | 999999 | |
| 1.91 | -8.00 | 0.97 | -8.00 | -8.87 | 240.57 | 2.55 | 191.56 | 0.2202 | 962.0 | 999999 | |
| 0.45 | 4.18 | 0.23 | 2.13 | -10.12 | 240.45 | 2.43 | 190.04 | 0.2408 | -514.8 | 181.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -10.44 | 240.42 | 2.40 | 189.70 | 0.2459 | -667.0 | -551.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -4.22 | 240.33 | 2.32 | 196.63 | 0.1415 | 758.0 | 655.4 | |
| 0.00 | 6.27 | 0.00 | 3.19 | -9.18 | 240.13 | 2.12 | 189.41 | 0.2240 | 730.0 | 584.2 | |
| 1.27 | -8.00 | 0.64 | -8.00 | -7.62 | 240.07 | 2.05 | 190.38 | 0.1976 | -641.3 | 999999 | |
| 0.00 | 7.00 | 0.00 | 3.53 | -6.97 | 239.91 | 1.89 | 190.20 | 0.1860 | 269.0 | 678.4 | |
| 0.00 | 4.45 | 0.00 | 2.25 | -7.53 | 239.70 | 1.68 | 188.61 | 0.1949 | 562.0 | 558.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -4.59 | 239.48 | 1.46 | 190.19 | 0.1442 | 946.0 | 780.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -4.81 | 239.39 | 1.37 | 189.32 | 0.1476 | 913.0 | 753.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -7.03 | 239.33 | 1.31 | 187.05 | 0.1856 | 66.0 | -77.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.71 | 239.33 | 1.31 | 186.63 | 0.1972 | -618.0 | -381.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.99 | 239.21 | 1.19 | 185.41 | 0.2188 | -849.0 | -658.3 | |
| 0.00 | 4.63 | 0.00 | 2.33 | -6.38 | 239.08 | 1.06 | 186.12 | 0.1739 | 24.0 | -77.1 | |
| 0.64 | 848.15 | 0.32 | 427.43 | -5.82 | 239.05 | 1.03 | 186.29 | 0.1643 | -770.6 | -458.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.62 | 238.99 | 0.97 | 184.97 | 0.1950 | -697.0 | -464.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.80 | 238.62 | 0.60 | 182.79 | 0.2148 | 740.0 | 573.4 | |
| 4.18 | -59.00 | 2.10 | -59.00 | -5.76 | 238.59 | 0.57 | 183.53 | 0.1625 | -957.4 | 999999 | |
| 0.00 | 7.18 | 0.00 | 3.62 | -7.03 | 238.53 | 0.51 | 182.77 | 0.1844 | 256.0 | 331.6 | |
| 0.27 | -59.00 | 0.14 | -59.00 | -5.61 | 238.44 | 0.42 | 182.63 | 0.1597 | -935.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.69 | 238.41 | 0.39 | 182.17 | 0.1784 | 912.0 | 585.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.37 | 238.22 | 0.20 | 181.07 | 0.1900 | -288.0 | -294.6 | |
| 3.54 | -59.00 | 1.78 | -59.00 | -5.76 | 237.98 | -0.04 | 179.76 | 0.1622 | -1086.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.21 | 237.91 | -0.10 | 179.49 | 0.2044 | -646.0 | -470.2 | |
| 0.73 | -59.00 | 0.36 | -59.00 | -5.67 | 237.76 | -0.25 | 178.42 | 0.1607 | -1159.6 | 999999 | |
| 4.36 | -59.00 | 2.19 | -59.00 | -5.42 | 237.67 | -0.35 | 177.79 | 0.1565 | 244.5 | 999999 | |
| 1.09 | -59.00 | 0.55 | -59.00 | -7.31 | 237.67 | -0.35 | 178.16 | 0.1890 | -797.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.56 | 237.64 | -0.38 | 178.04 | 0.1933 | -94.0 | -129.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -5.14 | 237.58 | -0.44 | 177.12 | 0.1517 | 966.0 | 706.3 | |
| 11.63 | -59.00 | 5.84 | -59.00 | -5.94 | 237.33 | -0.68 | 175.88 | 0.1658 | -1212.3 | 999999 | |
| 10.27 | -59.00 | 5.17 | -59.00 | -6.93 | 237.33 | -0.69 | 176.26 | 0.1829 | -1132.9 | 999999 | |
| 2.63 | -59.00 | 1.32 | -59.00 | -5.54 | 237.33 | -0.68 | 175.70 | 0.1589 | 153.6 | 999999 | |
| 0.55 | 6.63 | 0.28 | 3.35 | -7.83 | 237.21 | -0.81 | 175.93 | 0.1985 | -967.5 | -580.0 | |
| 1.73 | -59.00 | 0.87 | -59.00 | -5.79 | 237.18 | -0.84 | 174.88 | 0.1634 | -1263.5 | 999999 | |
| 3.45 | -59.00 | 1.74 | -59.00 | -6.78 | 237.06 | -0.96 | 174.68 | 0.1806 | -1210.8 | 999999 | |
| 3.82 | -59.00 | 1.92 | -59.00 | -6.66 | 236.99 | -1.02 | 174.28 | 0.1786 | -1144.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.62 | 236.99 | -1.03 | 174.76 | 0.1951 | -620.0 | -509.6 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -8.71 | 236.96 | -1.06 | 175.07 | 0.2137 | -605.0 | -475.4 | |
| 7.45 | -59.00 | 3.75 | -59.00 | -6.16 | 236.93 | -1.08 | 173.64 | 0.1702 | -1224.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.96 | 236.93 | -1.09 | 174.60 | 0.2010 | -769.0 | -627.9 | |
| 0.00 | 3.27 | 0.00 | 1.67 | -9.89 | 236.80 | -1.22 | 174.84 | 0.2342 | -772.0 | -575.1 | |
| 16.26 | -59.00 | 8.18 | -59.00 | -6.32 | 236.72 | -1.30 | 172.50 | 0.1733 | -1279.7 | 999999 | |
| 3.73 | -59.00 | 1.87 | -59.00 | -5.67 | 236.69 | -1.33 | 171.80 | 0.1622 | -487.9 | 999999 | |
| 2.63 | -59.00 | 1.32 | -59.00 | -5.76 | 236.57 | -1.45 | 171.15 | 0.1641 | -678.4 | 999999 | |
| 11.81 | -59.00 | 5.94 | -59.00 | -6.01 | 236.54 | -1.48 | 171.19 | 0.1685 | -1376.6 | 999999 | |
| 3.09 | -59.00 | 1.55 | -59.00 | -6.25 | 236.41 | -1.60 | 170.70 | 0.1730 | -1468.6 | 999999 | |
| 2.36 | -59.00 | 1.19 | -59.00 | -6.44 | 236.41 | -1.60 | 170.87 | 0.1762 | -1222.6 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.28 | -11.09 | 236.23 | -1.79 | 173.09 | 0.2554 | -629.0 | -481.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.84 | 236.08 | -1.94 | 172.37 | 0.2515 | -735.0 | -710.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.08 | 236.09 | -1.93 | 171.35 | 0.2219 | 622.0 | 433.7 | |
| 23.80 | -59.00 | 11.98 | -59.00 | -6.32 | 235.98 | -2.03 | 168.35 | 0.1754 | -1356.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -5.33 | 235.99 | -2.03 | 167.11 | 0.1587 | -821.0 | -687.3 | |
| 0.00 | 2.73 | 0.00 | 1.37 | -4.71 | 235.78 | -2.24 | 164.80 | 0.1492 | -1031.0 | -810.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.36 | 235.71 | -2.30 | 165.47 | 0.1604 | -885.0 | -735.1 | |
| 62.15 | -59.00 | 31.39 | -59.00 | -7.46 | 235.67 | -2.35 | 167.98 | 0.1959 | -1487.8 | 999999 | |
| 2.45 | -59.00 | 1.24 | -59.00 | -6.66 | 235.61 | -2.40 | 166.75 | 0.1825 | -1314.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -9.36 | 235.50 | -2.52 | 169.01 | 0.2283 | -774.0 | -583.4 | |
| 0.00 | 7.36 | 0.00 | 3.70 | -5.45 | 235.41 | -2.61 | 163.80 | 0.1633 | -828.0 | -744.2 | |
| 5.81 | -59.00 | 2.93 | -59.00 | -7.15 | 235.30 | -2.71 | 165.78 | 0.1921 | -1286.8 | 999999 | |
| 2.36 | -59.00 | 1.19 | -59.00 | -6.22 | 235.31 | -2.71 | 164.50 | 0.1766 | -1090.9 | 999999 | |
| 0.82 | -59.00 | 0.41 | -59.00 | -6.10 | 235.00 | -3.01 | 162.64 | 0.1760 | -998.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -11.22 | 234.92 | -3.09 | 168.25 | 0.2611 | -778.0 | -606.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -11.06 | 234.71 | -3.31 | 167.32 | 0.2593 | -938.0 | -695.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -10.84 | 234.65 | -3.37 | 166.91 | 0.2559 | -1043.0 | -883.6 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -6.47 | 234.66 | -3.35 | 161.49 | 0.1840 | -1033.0 | -864.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.21 | 234.54 | -3.47 | 164.82 | 0.2295 | -607.0 | -498.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.90 | 234.46 | -3.56 | 166.27 | 0.2577 | -785.0 | -595.3 | |
| 0.55 | 2.54 | 0.28 | 1.28 | -6.75 | 234.41 | -3.60 | 160.72 | 0.1899 | -1182.3 | -905.1 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -6.54 | 234.39 | -3.63 | 160.19 | 0.1865 | -740.0 | -635.7 | |
| 0.00 | 7.90 | 0.00 | 4.00 | -7.13 | 233.83 | -4.19 | 158.57 | 0.1994 | -740.0 | -929.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.41 | 233.79 | -4.22 | 158.93 | 0.2041 | -871.0 | -762.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.50 | 233.72 | -4.30 | 163.09 | 0.2543 | -726.0 | -572.3 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -6.66 | 233.74 | -4.28 | 157.26 | 0.1926 | -740.0 | -642.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -8.31 | 233.60 | -4.42 | 159.59 | 0.2197 | -907.0 | -755.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -6.94 | 233.18 | -4.84 | 155.26 | 0.2009 | -915.0 | -739.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.13 | 232.99 | -5.02 | 154.82 | 0.2051 | -925.0 | -639.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -5.99 | 232.70 | -5.32 | 150.83 | 0.1899 | -895.0 | -705.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.29 | 232.70 | -5.32 | 151.59 | 0.1946 | -854.0 | -593.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.07 | 231.87 | -6.15 | 152.15 | 0.2280 | -818.0 | -568.8 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -9.07 | 231.70 | -6.32 | 153.46 | 0.2445 | -773.0 | -653.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
