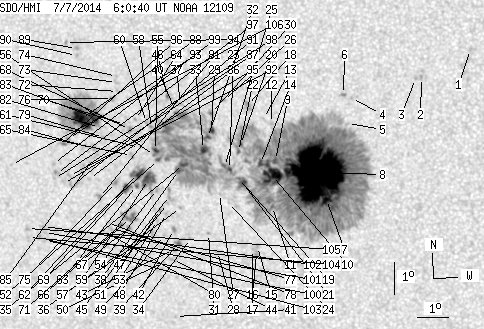

SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 355.28 | 1864.11 | 188.73 | 992.78 | -7.86 | 220.44 | -17.58 | 123.43 | 0.3592 | 475.0 | 139.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.88 | -4.09 | 227.04 | -10.98 | 124.68 | 0.2321 | 819.0 | 644.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -4.97 | 225.49 | -12.53 | 124.11 | 0.2621 | 948.0 | 760.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.00 | 225.30 | -12.72 | 123.81 | 0.2651 | 828.0 | 667.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.64 | 223.27 | -14.75 | 121.86 | 0.2996 | -838.0 | -715.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.42 | 223.12 | -14.90 | 123.76 | 0.3087 | 221.0 | 207.2 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -5.52 | 223.02 | -15.00 | 121.09 | 0.3021 | -872.0 | -649.5 | |
| 6.54 | 1520.86 | 3.45 | 805.27 | -8.79 | 222.36 | -15.66 | 128.37 | 0.3417 | 1179.8 | 286.1 | |
| 217.97 | -7.00 | 114.65 | -7.00 | -7.95 | 222.11 | -15.91 | 125.94 | 0.3368 | 1662.4 | 999999 | |
| 3.00 | -7.00 | 1.59 | -7.00 | -7.60 | 220.77 | -17.24 | 122.95 | 0.3517 | 879.1 | 999999 | |
| 28.17 | -7.00 | 14.93 | -7.00 | -8.07 | 220.66 | -17.36 | 123.88 | 0.3574 | 939.9 | 999999 | |
| 0.55 | -7.00 | 0.29 | -7.00 | -9.04 | 220.61 | -17.41 | 126.03 | 0.3669 | 604.3 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -6.46 | 220.69 | -17.33 | 119.98 | 0.3431 | 117.0 | 144.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -6.31 | 220.44 | -17.58 | 119.24 | 0.3455 | -439.0 | -226.2 | |
| 3.09 | -7.00 | 1.64 | -7.00 | -7.71 | 220.28 | -17.73 | 122.46 | 0.3593 | 822.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -10.30 | 220.05 | -17.97 | 127.89 | 0.3862 | -115.0 | -299.3 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -10.52 | 220.00 | -18.01 | 128.28 | 0.3889 | -663.0 | -672.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -10.40 | 219.88 | -18.14 | 127.83 | 0.3893 | -862.0 | -543.2 | |
| 0.00 | 7.63 | 0.00 | 4.03 | -5.92 | 219.94 | -18.08 | 117.57 | 0.3497 | 334.0 | 142.1 | |
| 3.54 | -7.00 | 1.89 | -7.00 | -8.34 | 219.70 | -18.31 | 123.10 | 0.3727 | 547.7 | 999999 | |
| 1.09 | -7.00 | 0.58 | -7.00 | -7.13 | 219.66 | -18.35 | 120.21 | 0.3631 | 880.1 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -8.19 | 219.58 | -18.44 | 122.57 | 0.3730 | 773.7 | 999999 | |
| 1.00 | -7.00 | 0.53 | -7.00 | -7.35 | 219.59 | -18.43 | 120.63 | 0.3659 | 781.8 | 999999 | |
| 1.64 | -7.00 | 0.87 | -7.00 | -7.91 | 219.27 | -18.75 | 121.52 | 0.3750 | 1026.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -8.94 | 219.18 | -18.83 | 123.71 | 0.3850 | 233.0 | 267.4 | |
| 1.18 | -7.00 | 0.63 | -7.00 | -7.82 | 219.11 | -18.91 | 121.09 | 0.3764 | 962.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -5.78 | 219.17 | -18.85 | 116.24 | 0.3599 | -947.0 | -696.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -8.67 | 218.91 | -19.11 | 122.72 | 0.3864 | -627.0 | -453.1 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -10.48 | 218.73 | -19.29 | 126.33 | 0.4048 | 603.0 | 461.5 | |
| 2.82 | -7.00 | 1.50 | -7.00 | -6.71 | 218.74 | -19.28 | 118.01 | 0.3730 | 952.0 | 999999 | |
| 0.64 | 2.36 | 0.34 | 1.26 | -6.19 | 218.73 | -19.29 | 116.73 | 0.3693 | 949.3 | 755.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.92 | 218.47 | -19.55 | 124.82 | 0.4031 | -636.0 | -510.6 | |
| 2.36 | -7.00 | 1.26 | -7.00 | -6.93 | 218.60 | -19.42 | 118.36 | 0.3766 | 918.8 | 999999 | |
| 5.00 | -7.00 | 2.68 | -7.00 | -7.31 | 218.45 | -19.56 | 119.06 | 0.3816 | 965.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.09 | 217.87 | -20.15 | 124.36 | 0.4126 | -672.0 | -592.9 | |
| 3.27 | -7.00 | 1.76 | -7.00 | -7.79 | 217.77 | -20.24 | 119.32 | 0.3948 | -1010.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.13 | 217.60 | -20.42 | 122.02 | 0.4079 | -794.0 | -704.5 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -5.93 | 217.76 | -20.26 | 115.00 | 0.3816 | -331.0 | -284.3 | |
| 2.45 | -7.00 | 1.32 | -7.00 | -7.98 | 217.60 | -20.42 | 119.53 | 0.3987 | -909.2 | 999999 | |
| 0.82 | 5.91 | 0.45 | 3.22 | -10.26 | 217.46 | -20.56 | 124.17 | 0.4194 | -1091.8 | -831.6 | |
| 0.64 | -7.00 | 0.34 | -7.00 | -6.18 | 217.62 | -20.40 | 115.44 | 0.3853 | -969.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.57 | 217.18 | -20.84 | 128.22 | 0.4437 | -763.0 | -605.8 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -9.82 | 217.32 | -20.69 | 123.11 | 0.4174 | -922.0 | -854.1 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -10.45 | 217.28 | -20.74 | 124.32 | 0.4234 | -740.0 | -597.6 | |
| 0.00 | 3.27 | 0.00 | 1.79 | -10.77 | 217.22 | -20.79 | 124.87 | 0.4269 | -834.0 | -602.4 | |
| 0.00 | 6.09 | 0.00 | 3.30 | -8.76 | 217.26 | -20.76 | 120.82 | 0.4096 | -453.0 | -544.9 | |
| 0.45 | 3.73 | 0.24 | 2.00 | -5.69 | 217.35 | -20.67 | 113.99 | 0.3861 | -1011.6 | -766.5 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -9.01 | 217.18 | -20.84 | 121.25 | 0.4127 | -723.0 | -531.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -9.33 | 217.12 | -20.89 | 121.85 | 0.4160 | -892.0 | -708.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.02 | 217.01 | -21.01 | 123.12 | 0.4232 | -757.0 | -594.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -10.87 | 216.92 | -21.10 | 124.68 | 0.4317 | -668.0 | -507.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -9.21 | 216.93 | -21.08 | 121.36 | 0.4176 | -860.0 | -758.5 | |
| 1.09 | -7.00 | 0.59 | -7.00 | -7.65 | 216.96 | -21.06 | 118.06 | 0.4053 | -992.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -9.55 | 216.81 | -21.21 | 121.93 | 0.4220 | -737.0 | -609.4 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -8.58 | 216.84 | -21.18 | 119.95 | 0.4140 | -804.0 | -654.6 | |
| 2.36 | -7.00 | 1.28 | -7.00 | -7.37 | 216.87 | -21.14 | 117.35 | 0.4044 | -1109.7 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -7.53 | 216.83 | -21.18 | 117.65 | 0.4061 | -822.3 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.79 | -9.96 | 216.62 | -21.40 | 122.53 | 0.4280 | -702.0 | -632.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -6.63 | 216.78 | -21.24 | 115.58 | 0.4006 | -863.0 | -706.4 | |
| 11.45 | 51.06 | 6.23 | 27.83 | -8.28 | 216.59 | -21.42 | 119.01 | 0.4151 | -1097.8 | -723.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.51 | 216.62 | -21.40 | 115.14 | 0.4021 | -864.0 | -679.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.29 | 216.35 | -21.67 | 116.61 | 0.4113 | -633.0 | -371.8 | |
| 8.36 | -59.00 | 4.56 | -59.00 | -8.10 | 216.24 | -21.78 | 118.24 | 0.4187 | -1119.2 | 999999 | |
| 1.09 | -59.00 | 0.60 | -59.00 | -8.47 | 216.18 | -21.83 | 118.97 | 0.4222 | -892.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.42 | 216.26 | -21.76 | 114.59 | 0.4068 | 534.0 | 420.5 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -7.54 | 216.07 | -21.95 | 116.87 | 0.4171 | -741.0 | -726.3 | |
| 3.73 | 17.35 | 2.05 | 9.54 | -9.48 | 215.92 | -22.10 | 120.74 | 0.4335 | -1000.6 | -739.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.79 | 215.86 | -22.15 | 121.31 | 0.4367 | -851.0 | -690.8 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -6.74 | 216.05 | -21.97 | 115.08 | 0.4119 | -1109.0 | -936.7 | |
| 4.27 | -59.00 | 2.34 | -59.00 | -8.57 | 215.84 | -22.17 | 118.81 | 0.4277 | -986.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -6.59 | 215.89 | -22.13 | 114.58 | 0.4132 | -760.0 | -707.5 | |
| 0.73 | -66.00 | 0.40 | -66.00 | -9.71 | 215.57 | -22.45 | 120.80 | 0.4400 | -838.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -5.57 | 215.70 | -22.31 | 112.12 | 0.4096 | -798.0 | -707.3 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -5.29 | 215.68 | -22.34 | 111.47 | 0.4083 | -884.0 | -708.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.11 | 215.69 | -22.33 | 111.05 | 0.4072 | -791.0 | -589.4 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -8.40 | 215.49 | -22.53 | 118.06 | 0.4313 | -949.0 | -764.9 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -5.79 | 215.53 | -22.49 | 112.46 | 0.4135 | -862.0 | -839.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.84 | 215.26 | -22.76 | 120.72 | 0.4453 | -688.0 | -568.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -9.65 | 215.14 | -22.88 | 120.23 | 0.4455 | -784.0 | -616.2 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -7.01 | 215.17 | -22.85 | 114.80 | 0.4263 | -940.0 | -783.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -9.91 | 214.95 | -23.07 | 120.52 | 0.4499 | -548.0 | -390.6 | |
| 0.00 | 4.09 | 0.00 | 2.26 | -8.88 | 214.92 | -23.10 | 118.45 | 0.4426 | -890.0 | -751.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.70 | 215.05 | -22.96 | 114.03 | 0.4260 | -748.0 | -664.8 | |
| 9.18 | 120.66 | 5.02 | 66.27 | -6.39 | 214.90 | -23.12 | 113.23 | 0.4263 | -1271.3 | -375.5 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -7.35 | 214.82 | -23.20 | 115.21 | 0.4336 | -957.0 | -813.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.79 | 214.69 | -23.33 | 116.01 | 0.4383 | -770.0 | -622.5 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -8.29 | 214.63 | -23.39 | 116.97 | 0.4426 | -750.0 | -597.3 | |
| 0.00 | 4.00 | 0.00 | 2.21 | -7.99 | 214.41 | -23.61 | 116.14 | 0.4436 | -889.0 | -737.2 | |
| 26.26 | -83.00 | 14.42 | -83.00 | -6.43 | 214.46 | -23.55 | 112.93 | 0.4329 | -1116.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -4.28 | 214.39 | -23.63 | 108.11 | 0.4223 | -1013.0 | -898.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -4.49 | 214.38 | -23.64 | 108.59 | 0.4235 | -955.0 | -801.8 | |
| 0.00 | 5.81 | 0.00 | 3.23 | -8.49 | 214.07 | -23.94 | 116.84 | 0.4517 | -509.0 | -591.0 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -8.21 | 213.96 | -24.06 | 116.17 | 0.4515 | -789.0 | -607.5 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -7.06 | 213.99 | -24.02 | 113.85 | 0.4436 | -845.0 | -637.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -4.10 | 214.03 | -23.99 | 107.46 | 0.4269 | -744.0 | -569.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -8.47 | 213.74 | -24.28 | 116.48 | 0.4562 | -474.0 | -449.0 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -7.22 | 213.78 | -24.23 | 114.00 | 0.4476 | -778.0 | -680.5 | |
| 0.00 | 3.45 | 0.00 | 1.92 | -8.16 | 213.52 | -24.50 | 115.67 | 0.4572 | -593.0 | -588.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.32 | 213.44 | -24.58 | 115.91 | 0.4594 | -498.0 | -410.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -7.85 | 213.44 | -24.58 | 114.98 | 0.4564 | -663.0 | -567.4 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -10.27 | 212.98 | -25.03 | 119.22 | 0.4790 | -625.0 | -597.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -10.02 | 212.97 | -25.05 | 118.74 | 0.4774 | -759.0 | -610.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -9.83 | 212.95 | -25.06 | 118.37 | 0.4763 | -805.0 | -746.6 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -10.18 | 212.79 | -25.23 | 118.87 | 0.4810 | -691.0 | -588.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -10.19 | 212.41 | -25.61 | 118.53 | 0.4862 | -665.0 | -541.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -9.91 | 212.40 | -25.62 | 118.00 | 0.4844 | -770.0 | -672.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.92 | 212.00 | -26.01 | 113.89 | 0.4770 | -591.0 | -484.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
