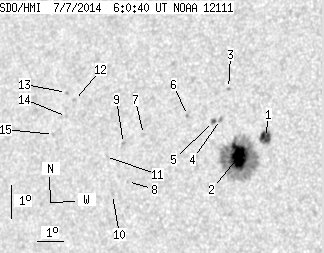

SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.26 | 156.09 | 20.46 | 93.82 | 6.64 | 203.53 | -34.49 | 83.42 | 0.5681 | -610.2 | -349.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.27 | 11.36 | 4.90 | 6.72 | 7.10 | 204.86 | -33.16 | 82.42 | 0.5496 | -984.7 | -673.9 | |
| 24.99 | 126.29 | 14.95 | 75.53 | 6.49 | 203.91 | -34.11 | 83.64 | 0.5627 | -1247.6 | -431.0 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 8.55 | 203.35 | -34.66 | 80.09 | 0.5731 | -697.0 | -455.3 | |
| 0.00 | 2.36 | 0.00 | 1.43 | 7.59 | 203.15 | -34.87 | 81.79 | 0.5747 | -889.0 | -702.3 | |
| 1.00 | 2.73 | 0.61 | 1.65 | 7.52 | 202.89 | -35.13 | 81.94 | 0.5783 | -648.0 | -476.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 7.67 | 201.89 | -36.13 | 81.82 | 0.5925 | 610.0 | 462.4 | |
| 0.00 | 1.82 | 0.00 | 1.14 | 7.03 | 200.25 | -37.76 | 83.07 | 0.6145 | 595.0 | 450.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 5.58 | 199.75 | -38.26 | 85.47 | 0.6205 | 677.0 | 587.3 | |
| 0.00 | 1.82 | 0.00 | 1.15 | 6.73 | 199.50 | -38.52 | 83.63 | 0.6245 | 622.0 | 519.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 5.16 | 199.20 | -38.82 | 86.16 | 0.6280 | 556.0 | 358.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 6.31 | 198.83 | -39.19 | 84.35 | 0.6334 | 519.0 | 564.2 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 7.97 | 197.41 | -40.61 | 81.87 | 0.6534 | 675.0 | 594.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 8.20 | 197.05 | -40.96 | 81.56 | 0.6582 | 553.0 | 463.2 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 7.47 | 197.14 | -40.88 | 82.67 | 0.6565 | 331.0 | 337.6 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 6.90 | 196.67 | -41.35 | 83.57 | 0.6622 | 512.0 | 485.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
