SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.90 | 44.88 | 20.22 | 41.77 | -7.56 | 294.37 | 56.90 | 258.79 | 0.8484 | -127.1 | 191.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

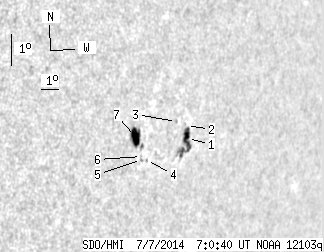

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.54 | 21.35 | 9.21 | 20.58 | -7.65 | 295.69 | 58.22 | 258.92 | 0.8606 | 539.3 | 506.9 | |
| 0.00 | 1.54 | 0.00 | 1.48 | -7.24 | 295.55 | 58.08 | 259.37 | 0.8587 | 505.0 | 381.3 | |
| 0.00 | 1.18 | 0.00 | 1.11 | -7.08 | 294.94 | 57.47 | 259.44 | 0.8531 | 104.0 | 207.2 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -8.21 | 293.47 | 56.00 | 257.85 | 0.8415 | -175.0 | -199.9 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -8.16 | 293.19 | 55.72 | 257.85 | 0.8387 | -359.0 | -389.9 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -8.07 | 293.17 | 55.70 | 257.95 | 0.8384 | -335.0 | -266.0 | |
| 12.36 | 18.72 | 11.01 | 16.70 | -7.43 | 292.71 | 55.24 | 258.63 | 0.8331 | -718.6 | -329.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
