SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 11.80 | 1.05 | 6.52 | -13.93 | 256.95 | 19.48 | 227.27 | 0.4421 | 487.9 | 456.8 | |
|
previous
or next observation for the same group /

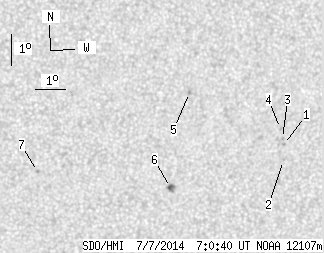

back to the solar disc SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -13.57 | 259.74 | 22.27 | 231.82 | 0.4706 | 724.0 | 594.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -14.08 | 259.79 | 22.32 | 231.01 | 0.4759 | 577.0 | 520.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.38 | 259.69 | 22.22 | 232.09 | 0.4682 | 608.0 | 524.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -13.06 | 259.59 | 22.12 | 232.53 | 0.4641 | 536.0 | 541.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -11.84 | 256.46 | 18.99 | 230.56 | 0.4140 | 962.0 | 756.1 | |
| 1.91 | 4.72 | 1.05 | 2.61 | -14.86 | 256.07 | 18.60 | 224.61 | 0.4408 | 903.2 | 702.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.26 | 251.65 | 14.18 | 218.01 | 0.3873 | -916.0 | -688.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
