SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.71 | 162.29 | 20.00 | 96.92 | 6.65 | 203.55 | -33.92 | 83.33 | 0.5600 | -646.8 | -345.8 | |
|
previous
or next observation for the same group /

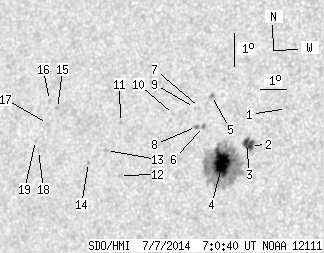

back to the solar disc SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | 8.23 | 206.15 | -31.32 | 79.99 | 0.5245 | -664.0 | -528.6 | |
| 4.18 | 11.18 | 2.46 | 6.58 | 7.06 | 204.94 | -32.53 | 82.41 | 0.5405 | -1069.0 | -657.0 | |
| 3.36 | -2.00 | 1.98 | -2.00 | 7.15 | 204.79 | -32.68 | 82.27 | 0.5428 | -883.2 | 999999 | |
| 25.62 | 129.93 | 15.23 | 77.20 | 6.48 | 203.96 | -33.51 | 83.60 | 0.5542 | -1246.8 | -414.1 | |
| 0.00 | 2.09 | 0.00 | 1.25 | 8.54 | 203.37 | -34.10 | 80.00 | 0.5651 | -792.0 | -527.3 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 7.59 | 203.16 | -34.31 | 81.73 | 0.5667 | -863.0 | -711.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 8.16 | 202.96 | -34.51 | 80.75 | 0.5704 | -551.0 | -527.0 | |
| 0.55 | 2.18 | 0.33 | 1.31 | 7.58 | 202.90 | -34.57 | 81.78 | 0.5704 | -733.7 | -561.6 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 8.16 | 202.77 | -34.70 | 80.79 | 0.5730 | -567.0 | -526.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 7.91 | 202.00 | -35.47 | 81.33 | 0.5835 | -591.0 | -461.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 7.60 | 200.00 | -37.47 | 82.12 | 0.6110 | 681.0 | 468.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 5.98 | 200.11 | -37.36 | 84.77 | 0.6083 | 654.0 | 458.6 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 6.73 | 199.54 | -37.93 | 83.59 | 0.6165 | 644.0 | 545.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 6.33 | 198.87 | -38.60 | 84.27 | 0.6254 | 623.0 | 478.5 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 7.93 | 197.47 | -40.00 | 81.87 | 0.6453 | 588.0 | 584.2 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 8.17 | 197.12 | -40.35 | 81.55 | 0.6502 | 566.0 | 490.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 7.46 | 197.12 | -40.35 | 82.63 | 0.6495 | 499.0 | 419.9 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 6.62 | 196.84 | -40.63 | 83.94 | 0.6527 | 370.0 | 447.3 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 6.92 | 196.69 | -40.78 | 83.49 | 0.6548 | 461.0 | 377.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
