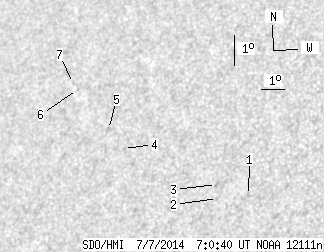

SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.26 | 0.00 | 6.26 | 18.75 | 196.49 | -40.98 | 65.96 | 0.6809 | 43.0 | -39.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.92 | 17.51 | 200.58 | -36.89 | 66.14 | 0.6282 | -691.0 | -517.7 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 17.37 | 199.36 | -38.11 | 66.86 | 0.6428 | -467.0 | -377.2 | |
| 0.00 | 2.54 | 0.00 | 1.65 | 17.81 | 199.21 | -38.26 | 66.27 | 0.6462 | -626.0 | -527.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 18.79 | 195.00 | -42.47 | 66.46 | 0.6995 | 552.0 | 474.2 | |
| 0.00 | 2.45 | 0.00 | 1.72 | 19.36 | 194.16 | -43.31 | 65.97 | 0.7109 | 398.0 | 338.7 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 20.57 | 192.32 | -45.15 | 64.97 | 0.7348 | 599.0 | 424.4 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 20.75 | 192.07 | -45.40 | 64.81 | 0.7381 | 536.0 | 477.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
