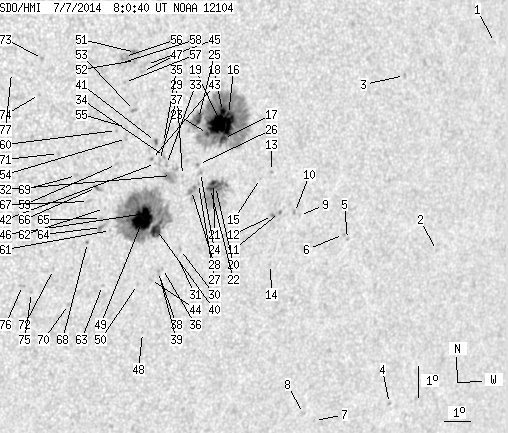

SDO HMI 2014-07-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.86 | 623.32 | 63.22 | 375.95 | -11.88 | 268.20 | 31.28 | 243.14 | 0.5720 | 145.8 | 27.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.25 | 279.76 | 42.84 | 254.38 | 0.7010 | 484.0 | 428.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | -14.75 | 278.51 | 41.59 | 245.04 | 0.7104 | 501.0 | 455.8 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -9.13 | 276.19 | 39.26 | 251.79 | 0.6601 | 455.0 | 457.8 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -19.70 | 277.86 | 40.93 | 238.35 | 0.7270 | 563.0 | 467.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -14.24 | 274.75 | 37.83 | 243.77 | 0.6649 | 514.0 | 438.6 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -14.08 | 274.56 | 37.64 | 243.90 | 0.6618 | 678.0 | 626.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -20.13 | 274.83 | 37.90 | 235.99 | 0.6982 | 308.0 | 281.0 | |
| 0.00 | 1.91 | 0.00 | 1.30 | -19.88 | 274.30 | 37.38 | 235.97 | 0.6912 | 189.0 | 227.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -13.40 | 272.71 | 35.78 | 243.79 | 0.6363 | 516.0 | 416.0 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -13.29 | 272.50 | 35.57 | 243.81 | 0.6331 | 779.0 | 663.9 | |
| 0.36 | 1.73 | 0.23 | 1.09 | -13.27 | 271.91 | 34.99 | 243.49 | 0.6260 | 805.0 | 686.3 | |
| 0.00 | 1.82 | 0.00 | 1.15 | -13.36 | 271.66 | 34.74 | 243.21 | 0.6233 | 832.0 | 734.8 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -11.95 | 271.41 | 34.48 | 245.15 | 0.6126 | 537.0 | 522.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -14.93 | 271.86 | 34.94 | 241.05 | 0.6346 | 512.0 | 535.5 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -12.16 | 271.02 | 34.10 | 244.60 | 0.6089 | 438.0 | 447.8 | |
| 1.54 | 238.42 | 0.94 | 144.48 | -10.10 | 269.56 | 32.64 | 246.93 | 0.5793 | 951.2 | 351.7 | |
| 4.36 | -16.00 | 2.65 | -16.00 | -10.84 | 269.46 | 32.54 | 245.67 | 0.5820 | 669.7 | 999999 | |
| 3.36 | -16.00 | 2.03 | -16.00 | -9.99 | 269.33 | 32.41 | 246.95 | 0.5757 | 1203.5 | 999999 | |
| 36.89 | -16.00 | 22.35 | -16.00 | -10.40 | 269.34 | 32.42 | 246.30 | 0.5780 | 1214.3 | 999999 | |
| 1.36 | 57.52 | 0.83 | 35.27 | -12.36 | 269.36 | 32.44 | 243.22 | 0.5892 | 943.1 | 272.4 | |
| 1.73 | -20.00 | 1.05 | -20.00 | -12.26 | 269.28 | 32.36 | 243.31 | 0.5875 | 975.6 | 999999 | |
| 1.73 | -20.00 | 1.05 | -20.00 | -12.41 | 269.19 | 32.27 | 243.01 | 0.5873 | 871.9 | 999999 | |
| 2.09 | -16.00 | 1.26 | -16.00 | -10.67 | 268.85 | 31.93 | 245.56 | 0.5731 | 1039.4 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -11.89 | 268.75 | 31.83 | 243.53 | 0.5787 | 520.0 | 435.6 | |
| 5.45 | -16.00 | 3.27 | -16.00 | -10.18 | 268.47 | 31.55 | 246.10 | 0.5654 | 1187.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -11.63 | 268.64 | 31.72 | 243.86 | 0.5758 | 803.0 | 620.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -12.24 | 268.72 | 31.80 | 242.96 | 0.5803 | 579.0 | 570.5 | |
| 0.00 | 5.09 | 0.00 | 3.09 | -12.45 | 268.49 | 31.57 | 242.46 | 0.5787 | 701.0 | 596.3 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -11.96 | 268.10 | 31.18 | 242.95 | 0.5708 | 368.0 | 306.5 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -14.32 | 268.36 | 31.44 | 239.48 | 0.5888 | -680.0 | -573.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -14.51 | 268.24 | 31.32 | 239.10 | 0.5886 | -565.0 | -501.1 | |
| 0.00 | 15.54 | 0.00 | 9.32 | -11.95 | 267.70 | 30.78 | 242.68 | 0.5656 | -430.0 | -278.0 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -11.60 | 267.47 | 30.55 | 243.09 | 0.5605 | 532.0 | 374.0 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -11.34 | 267.37 | 30.45 | 243.43 | 0.5576 | 609.0 | 516.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -10.90 | 267.28 | 30.36 | 244.10 | 0.5538 | 723.0 | 557.6 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -14.91 | 267.79 | 30.87 | 238.14 | 0.5859 | -523.0 | -389.2 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -11.46 | 267.20 | 30.28 | 243.11 | 0.5562 | 562.0 | 430.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -15.14 | 267.71 | 30.79 | 237.75 | 0.5865 | -602.0 | -519.7 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -15.00 | 267.66 | 30.73 | 237.90 | 0.5849 | -699.0 | -553.7 | |
| 11.09 | 209.07 | 6.69 | 125.06 | -13.65 | 267.38 | 30.46 | 239.75 | 0.5724 | -835.8 | -515.1 | |
| 0.73 | 2.18 | 0.43 | 1.29 | -10.85 | 266.99 | 30.07 | 243.96 | 0.5498 | 891.8 | 717.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -11.55 | 267.07 | 30.15 | 242.87 | 0.5550 | 373.0 | 366.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -11.42 | 266.91 | 29.99 | 242.96 | 0.5521 | 632.0 | 526.9 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -15.25 | 267.40 | 30.48 | 237.32 | 0.5836 | -701.0 | -491.8 | |
| 0.00 | 3.54 | 0.00 | 2.06 | -8.43 | 266.43 | 29.51 | 247.74 | 0.5286 | 577.0 | 555.1 | |
| 12.63 | -40.00 | 7.56 | -40.00 | -13.13 | 266.91 | 29.99 | 240.20 | 0.5630 | -1319.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -8.64 | 266.31 | 29.39 | 247.28 | 0.5280 | 681.0 | 560.3 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -16.97 | 267.40 | 30.48 | 234.80 | 0.5958 | -543.0 | -441.6 | |
| 20.90 | -40.00 | 12.51 | -40.00 | -13.41 | 266.80 | 29.88 | 239.67 | 0.5636 | -1214.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -15.40 | 266.95 | 30.03 | 236.73 | 0.5792 | -538.0 | -496.5 | |
| 0.00 | 4.18 | 0.00 | 2.42 | -8.04 | 266.01 | 29.09 | 248.15 | 0.5207 | 872.0 | 815.6 | |
| 0.00 | 2.36 | 0.00 | 1.37 | -8.29 | 266.03 | 29.11 | 247.72 | 0.5223 | 875.0 | 748.5 | |
| 0.00 | 2.54 | 0.00 | 1.49 | -9.85 | 266.14 | 29.21 | 245.03 | 0.5325 | 824.0 | 670.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -10.73 | 265.94 | 29.02 | 243.39 | 0.5352 | 439.0 | 371.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -10.38 | 265.90 | 28.98 | 243.95 | 0.5326 | 678.0 | 549.2 | |
| 0.00 | 5.91 | 0.00 | 3.41 | -8.15 | 265.64 | 28.71 | 247.69 | 0.5161 | 548.0 | 777.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.97 | 265.70 | 28.78 | 246.28 | 0.5215 | 813.0 | 728.3 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -8.37 | 265.48 | 28.55 | 247.19 | 0.5150 | 746.0 | 668.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -11.54 | 265.67 | 28.75 | 241.80 | 0.5368 | 646.0 | 395.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -10.46 | 265.56 | 28.64 | 243.54 | 0.5285 | 698.0 | 612.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -13.63 | 265.71 | 28.79 | 238.41 | 0.5516 | -615.0 | -501.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.92 | 265.41 | 28.49 | 239.30 | 0.5427 | -763.0 | -598.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.39 | 265.67 | 28.75 | 235.64 | 0.5639 | -498.0 | -440.1 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -13.52 | 265.38 | 28.46 | 238.29 | 0.5466 | -807.0 | -628.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -13.24 | 265.34 | 28.42 | 238.73 | 0.5441 | -746.0 | -592.2 | |
| 0.64 | 4.09 | 0.37 | 2.39 | -12.24 | 265.04 | 28.12 | 240.10 | 0.5334 | -828.4 | -639.0 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -12.68 | 264.81 | 27.89 | 239.17 | 0.5335 | -177.0 | -157.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -13.99 | 264.94 | 28.02 | 237.16 | 0.5446 | 669.0 | 591.1 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -11.84 | 264.29 | 27.37 | 240.13 | 0.5209 | -448.0 | -335.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -15.97 | 264.54 | 27.62 | 233.72 | 0.5550 | -585.0 | -455.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -11.13 | 263.59 | 26.67 | 240.74 | 0.5068 | -613.0 | -466.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -14.82 | 263.84 | 26.92 | 234.82 | 0.5375 | -705.0 | -605.3 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -8.13 | 262.79 | 25.87 | 245.57 | 0.4763 | -730.0 | -653.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -9.25 | 262.77 | 25.85 | 243.42 | 0.4831 | -535.0 | -474.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -15.54 | 263.16 | 26.24 | 233.02 | 0.5353 | -622.0 | -499.9 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -15.30 | 262.81 | 25.89 | 233.03 | 0.5292 | -848.0 | -637.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.54 | 261.76 | 24.84 | 243.89 | 0.4645 | -645.0 | -547.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
