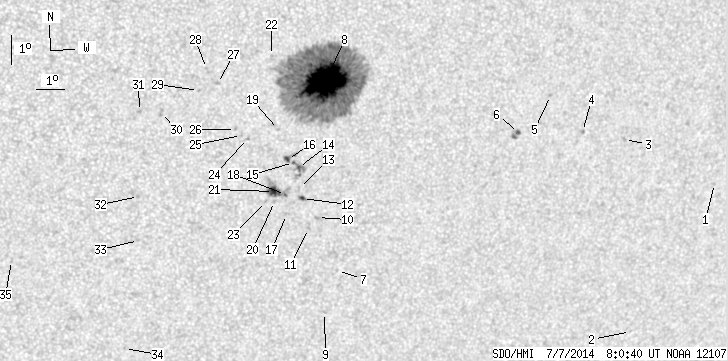

SDO HMI 2014-07-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.57 | 627.85 | 50.29 | 356.29 | -19.38 | 255.21 | 18.28 | 217.43 | 0.4891 | 643.0 | 350.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.60 | -22.80 | 270.12 | 33.20 | 229.29 | 0.6682 | -529.0 | -475.4 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -27.87 | 268.28 | 31.36 | 221.87 | 0.6915 | -476.0 | -387.6 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -21.18 | 266.26 | 29.34 | 228.04 | 0.6166 | 803.0 | 604.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -20.86 | 264.63 | 27.70 | 226.90 | 0.5972 | 746.0 | 717.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -19.62 | 263.23 | 26.30 | 227.14 | 0.5715 | 722.0 | 577.2 | |
| 1.00 | 5.18 | 0.60 | 3.12 | -20.82 | 262.28 | 25.36 | 224.53 | 0.5730 | 832.8 | 746.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -25.38 | 256.58 | 19.66 | 212.32 | 0.5705 | -623.0 | -445.6 | |
| 75.32 | 539.81 | 42.60 | 305.19 | -18.92 | 255.26 | 18.33 | 218.13 | 0.4838 | 1469.4 | 434.4 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -26.84 | 256.36 | 19.44 | 210.58 | 0.5860 | -691.0 | -491.9 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -23.52 | 255.58 | 18.65 | 212.98 | 0.5409 | -595.0 | -507.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.90 | 255.31 | 18.39 | 212.21 | 0.5433 | -680.0 | -603.9 | |
| 1.27 | 3.82 | 0.74 | 2.22 | -22.86 | 254.96 | 18.04 | 212.85 | 0.5280 | -966.4 | -808.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.52 | 254.81 | 17.89 | 213.02 | 0.5227 | -577.0 | -444.2 | |
| 1.18 | 11.72 | 0.68 | 6.76 | -21.81 | 254.68 | 17.76 | 213.65 | 0.5130 | 588.9 | 156.0 | |
| 0.45 | -14.00 | 0.26 | -14.00 | -21.63 | 254.49 | 17.56 | 213.57 | 0.5093 | 630.4 | 999999 | |
| 1.54 | 6.72 | 0.89 | 3.86 | -21.53 | 254.27 | 17.34 | 213.37 | 0.5062 | 813.9 | 650.4 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -23.40 | 254.47 | 17.55 | 211.57 | 0.5307 | -560.0 | -446.9 | |
| 0.36 | 22.44 | 0.21 | 12.97 | -22.71 | 254.35 | 17.43 | 212.14 | 0.5213 | -885.0 | -569.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.51 | 253.84 | 16.92 | 213.93 | 0.4902 | 725.0 | 583.5 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.94 | 254.00 | 17.07 | 211.37 | 0.5214 | -743.0 | -497.6 | |
| 7.45 | -18.00 | 4.31 | -18.00 | -22.60 | 253.92 | 17.00 | 211.63 | 0.5166 | -1097.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.06 | 253.35 | 16.43 | 216.32 | 0.4557 | 237.0 | 171.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.94 | 253.68 | 16.76 | 210.92 | 0.5189 | -505.0 | -444.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.79 | 252.82 | 15.89 | 211.99 | 0.4852 | 435.0 | 456.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.69 | 252.60 | 15.68 | 211.77 | 0.4821 | 573.0 | 486.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.49 | 252.38 | 15.46 | 211.65 | 0.4777 | 873.0 | 757.2 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -18.95 | 251.63 | 14.70 | 212.25 | 0.4518 | -704.0 | -497.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -18.44 | 251.22 | 14.30 | 212.16 | 0.4419 | -815.0 | -602.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.17 | 251.01 | 14.09 | 210.90 | 0.4497 | -806.0 | -650.3 | |
| 0.00 | 3.36 | 0.00 | 1.86 | -19.88 | 249.84 | 12.92 | 207.97 | 0.4501 | -651.0 | -610.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -19.83 | 249.11 | 12.19 | 206.67 | 0.4443 | -761.0 | -667.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.69 | 249.31 | 12.39 | 204.19 | 0.4850 | -698.0 | -514.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.20 | 249.46 | 12.54 | 203.10 | 0.5066 | -872.0 | -692.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -27.99 | 249.38 | 12.46 | 200.06 | 0.5574 | -686.0 | -535.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -24.83 | 245.18 | 8.26 | 195.36 | 0.4942 | -654.0 | -607.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
