group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12106	44.80	339.08	25.02	187.63	14.79	260.31	23.94	297.46	0.4427	-271.6	-223.0

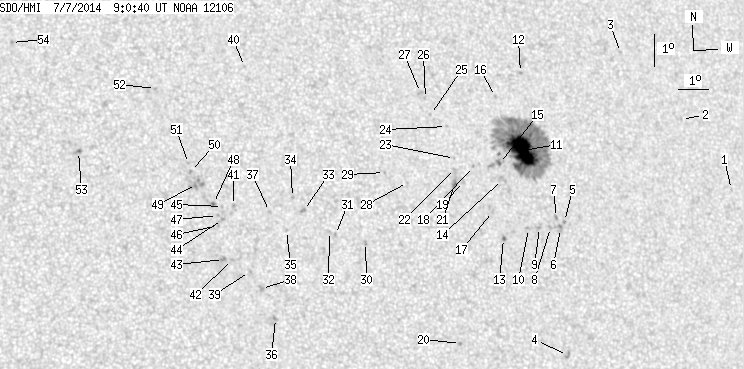

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-07-07 09:00:40 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.91	0.00	0.54	13.73	269.06	32.68	289.56	0.5588	570.0	453.2
2	0.00	0.91	0.00	0.54	15.96	267.57	31.19	294.19	0.5480	-669.0	-575.5
3	0.00	1.45	0.00	0.85	18.13	265.70	29.33	299.12	0.5349	-678.0	-544.7
4	0.00	3.00	0.00	1.66	8.81	262.62	26.25	282.65	0.4497	-767.0	-735.8
5	0.00	1.36	0.00	0.76	12.93	262.92	26.54	291.25	0.4692	-776.0	-654.1
6	0.00	3.27	0.00	1.83	12.71	262.75	26.38	290.92	0.4659	-583.0	-481.0
7	0.00	1.54	0.00	0.86	13.06	262.65	26.28	291.69	0.4660	-770.0	-639.1
8	0.00	1.82	0.00	1.01	12.75	262.41	26.03	291.22	0.4611	-780.0	-615.8
9	0.00	1.64	0.00	0.91	12.77	262.03	25.65	291.49	0.4556	-803.0	-656.9
10	0.00	2.00	0.00	1.11	12.74	261.64	25.27	291.70	0.4499	-698.0	-638.7
11	43.61	236.05	24.37	132.01	15.16	261.72	25.35	296.63	0.4641	-1333.1	-373.3
12	0.00	1.27	0.00	0.72	17.60	262.00	25.62	301.11	0.4834	839.0	668.1
13	0.55	1.73	0.30	0.95	12.46	260.75	24.38	291.70	0.4356	-991.8	-806.7
14	0.00	4.45	0.00	2.46	14.28	260.92	24.54	295.47	0.4477	-302.0	-535.0
15	0.64	11.81	0.35	6.54	14.78	260.87	24.50	296.54	0.4500	-1081.3	-761.8
16	0.00	1.36	0.00	0.76	16.87	261.01	24.63	300.61	0.4653	-781.0	-584.1
17	0.00	1.27	0.00	0.70	13.30	260.46	24.09	293.75	0.4357	-795.0	-702.5
18	0.00	0.82	0.00	0.45	14.71	259.97	23.59	297.17	0.4369	-778.0	-659.8
19	0.00	1.82	0.00	1.00	14.26	259.57	23.20	296.55	0.4285	-607.0	-465.5
20	0.00	1.45	0.00	0.78	9.27	259.02	22.65	285.38	0.3958	856.0	711.8
21	0.00	3.91	0.00	2.14	14.20	259.26	22.88	296.71	0.4238	-957.0	-864.7
22	0.00	0.91	0.00	0.50	14.67	259.31	22.93	297.67	0.4274	-881.0	-607.0
23	0.00	1.09	0.00	0.60	14.98	259.34	22.97	298.30	0.4299	-712.0	-552.2
24	0.00	0.73	0.00	0.40	15.98	259.19	22.81	300.55	0.4346	599.0	411.6
25	0.00	1.27	0.00	0.70	16.37	258.69	22.31	301.86	0.4307	623.0	435.9
26	0.00	1.27	0.00	0.70	16.87	258.58	22.20	303.01	0.4330	574.0	398.5
27	0.00	2.27	0.00	1.25	17.06	258.43	22.05	303.56	0.4325	671.0	561.0
28	0.00	0.55	0.00	0.29	14.27	257.67	21.29	298.39	0.4018	656.0	455.8
29	0.00	0.82	0.00	0.44	14.60	256.93	20.55	299.93	0.3936	655.0	564.8
30	0.00	1.91	0.00	1.02	12.45	256.10	19.72	295.66	0.3672	713.0	642.2
31	0.00	1.27	0.00	0.67	12.71	255.13	18.75	297.41	0.3547	780.0	569.9
32	0.00	0.82	0.00	0.43	12.81	254.94	18.56	297.88	0.3527	817.0	619.8
33	0.00	2.09	0.00	1.10	13.48	254.13	17.76	300.60	0.3460	803.0	775.1
34	0.00	1.36	0.00	0.72	13.89	253.80	17.43	302.09	0.3446	746.0	525.9
35	0.00	1.27	0.00	0.67	12.87	253.53	17.15	299.81	0.3328	804.0	567.1
36	0.00	1.64	0.00	0.85	10.17	253.00	16.62	292.73	0.3066	878.0	756.8
37	0.00	1.82	0.00	0.95	13.47	253.01	16.64	302.13	0.3303	792.0	693.2
38	0.00	3.27	0.00	1.70	11.10	252.60	16.22	296.03	0.3065	783.0	649.9
39	0.00	1.00	0.00	0.52	11.63	252.24	15.87	298.09	0.3049	524.0	486.2
40	0.00	1.00	0.00	0.53	18.00	252.57	16.20	313.53	0.3675	801.0	592.5
41	0.00	1.54	0.00	0.81	13.67	251.85	15.48	304.48	0.3160	842.0	697.6
42	0.00	1.54	0.00	0.80	12.01	251.71	15.34	299.99	0.3001	803.0	603.8
43	0.00	2.73	0.00	1.41	12.01	251.42	15.05	300.46	0.2959	906.0	792.3
44	0.00	1.45	0.00	0.76	13.25	251.47	15.09	303.95	0.3069	905.0	709.4
45	0.00	1.00	0.00	0.52	13.65	251.49	15.12	305.01	0.3108	677.0	555.0
46	0.00	0.91	0.00	0.47	13.06	251.33	14.95	303.67	0.3033	945.0	772.5
47	0.00	1.00	0.00	0.52	13.37	251.31	14.94	304.56	0.3059	850.0	744.2
48	0.00	1.54	0.00	0.80	13.75	251.21	14.83	305.77	0.3078	1083.0	944.5
49	0.00	9.18	0.00	4.78	14.34	250.70	14.32	308.30	0.3067	727.0	819.9
50	0.00	1.54	0.00	0.80	14.75	250.53	14.15	309.68	0.3086	817.0	734.6
51	0.00	0.91	0.00	0.47	15.00	250.48	14.11	310.41	0.3105	654.0	492.2
52	0.00	1.36	0.00	0.71	17.36	249.57	13.20	317.81	0.3259	819.0	647.0
53	0.00	2.73	0.00	1.40	15.42	246.95	10.57	319.47	0.2734	1034.0	884.3
54	0.00	1.45	0.00	0.76	18.87	244.96	8.59	331.92	0.3016	836.0	744.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
