SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.98 | 0.00 | 12.15 | -13.77 | 256.01 | 19.64 | 227.58 | 0.4432 | 469.2 | 374.4 | |
|
previous
or next observation for the same group /

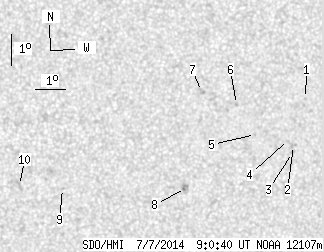

back to the solar disc SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.11 | 259.97 | 23.59 | 235.92 | 0.4744 | 777.0 | 605.2 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -13.60 | 259.71 | 23.33 | 233.03 | 0.4838 | 729.0 | 653.0 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -13.82 | 259.69 | 23.32 | 232.64 | 0.4856 | 610.0 | 414.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -13.40 | 259.51 | 23.14 | 233.15 | 0.4797 | 348.0 | 508.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -13.21 | 258.38 | 22.00 | 232.11 | 0.4641 | 739.0 | 533.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.24 | 257.65 | 21.28 | 232.93 | 0.4463 | 785.0 | 520.2 | |
| 0.00 | 3.27 | 0.00 | 1.79 | -11.80 | 256.45 | 20.07 | 232.17 | 0.4272 | 597.0 | 496.5 | |
| 0.00 | 5.09 | 0.00 | 2.83 | -14.88 | 256.18 | 19.80 | 226.33 | 0.4545 | 831.0 | 748.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.80 | 252.09 | 15.72 | 219.98 | 0.4094 | -586.0 | -503.3 | |
| 0.00 | 4.54 | 0.00 | 2.45 | -14.68 | 250.68 | 14.31 | 217.57 | 0.3938 | -138.0 | -241.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
