SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.99 | 159.92 | 22.25 | 94.08 | 6.70 | 203.77 | -32.61 | 83.11 | 0.5411 | -788.4 | -355.1 | |
|
previous
or next observation for the same group /

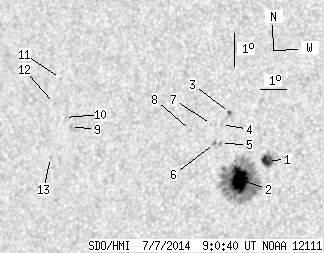

back to the solar disc SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.09 | 12.45 | 4.70 | 7.23 | 7.13 | 204.93 | -31.45 | 82.12 | 0.5247 | -958.0 | -557.3 | |
| 29.17 | 134.84 | 17.12 | 79.12 | 6.52 | 203.96 | -32.42 | 83.41 | 0.5382 | -1214.0 | -381.1 | |
| 0.73 | 2.91 | 0.43 | 1.72 | 8.55 | 203.42 | -32.95 | 79.76 | 0.5487 | -583.2 | -413.4 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 8.18 | 203.16 | -33.21 | 80.49 | 0.5518 | -555.0 | -445.1 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 7.60 | 203.18 | -33.20 | 81.54 | 0.5508 | -739.0 | -610.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 7.59 | 202.96 | -33.42 | 81.59 | 0.5540 | -681.0 | -539.7 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 8.17 | 202.79 | -33.58 | 80.58 | 0.5571 | -635.0 | -608.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 7.96 | 202.03 | -34.34 | 81.09 | 0.5677 | -575.0 | -423.8 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 7.92 | 197.42 | -38.95 | 81.79 | 0.6314 | 819.0 | 706.7 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 8.18 | 197.15 | -39.22 | 81.40 | 0.6353 | 499.0 | 550.0 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 9.37 | 196.84 | -39.53 | 79.59 | 0.6408 | 636.0 | 561.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 8.59 | 196.70 | -39.67 | 80.81 | 0.6417 | 486.0 | 431.8 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 6.94 | 196.73 | -39.65 | 83.39 | 0.6399 | 651.0 | 528.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
