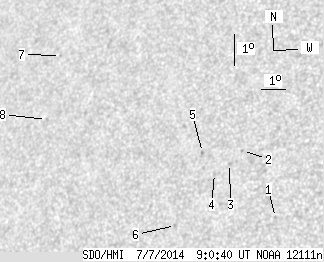

SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.35 | 0.00 | 6.06 | 17.57 | 198.08 | -38.29 | 66.62 | 0.6444 | -293.4 | -264.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.89 | 202.49 | -33.88 | 67.34 | 0.5832 | -693.0 | -527.7 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 17.94 | 200.78 | -35.60 | 64.89 | 0.6138 | -633.0 | -545.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 17.51 | 200.36 | -36.01 | 65.74 | 0.6173 | -644.0 | -531.1 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 17.18 | 199.84 | -36.53 | 66.49 | 0.6224 | -621.0 | -518.2 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 17.82 | 199.21 | -37.17 | 65.79 | 0.6328 | -632.0 | -590.8 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 15.51 | 198.65 | -37.72 | 69.56 | 0.6314 | -293.0 | -373.6 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 20.65 | 192.30 | -44.08 | 64.50 | 0.7234 | 620.0 | 513.5 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 18.61 | 192.37 | -44.00 | 67.23 | 0.7163 | 549.0 | 378.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
