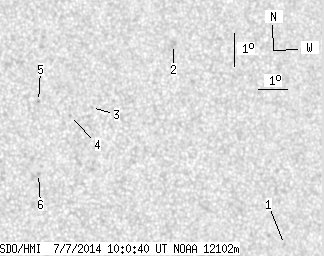

SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.54 | 0.00 | 4.74 | 7.34 | 262.13 | 26.31 | 279.45 | 0.4480 | 401.7 | 401.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | 3.04 | 267.02 | 31.20 | 270.01 | 0.5193 | 573.0 | 371.4 | |
| 0.00 | 3.54 | 0.00 | 1.99 | 9.26 | 263.49 | 27.67 | 283.09 | 0.4724 | 465.0 | 552.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 7.41 | 260.54 | 24.71 | 280.00 | 0.4227 | 502.0 | 495.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 7.19 | 259.81 | 23.99 | 279.69 | 0.4109 | -757.0 | -563.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.64 | 258.77 | 22.94 | 281.18 | 0.3955 | 825.0 | 697.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 5.45 | 258.66 | 22.83 | 275.62 | 0.3898 | 802.0 | 587.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
