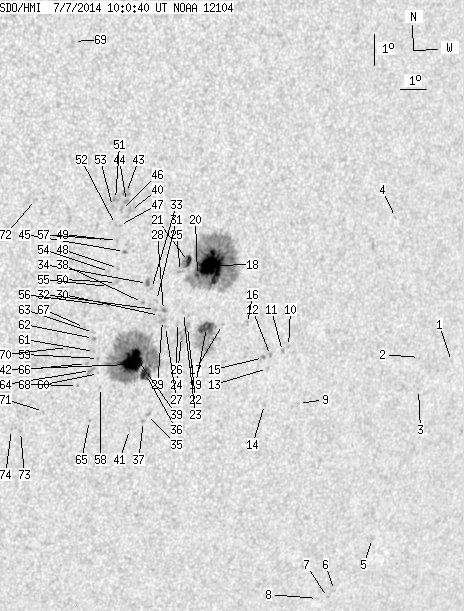

SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.49 | 583.51 | 65.62 | 356.55 | -11.87 | 268.26 | 32.43 | 243.96 | 0.5866 | 205.5 | 25.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -13.82 | 279.56 | 43.73 | 247.22 | 0.7303 | 594.0 | 602.0 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -13.63 | 278.13 | 42.31 | 246.85 | 0.7137 | 369.0 | 360.3 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -14.66 | 278.33 | 42.50 | 245.58 | 0.7201 | 145.0 | 192.4 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -9.15 | 276.34 | 40.51 | 252.27 | 0.6756 | 658.0 | 482.8 | |
| 0.00 | 2.09 | 0.00 | 1.52 | -19.47 | 277.68 | 41.85 | 239.13 | 0.7352 | 211.0 | 244.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -21.15 | 276.57 | 40.75 | 236.45 | 0.7328 | 358.0 | 371.7 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -21.37 | 276.35 | 40.52 | 236.04 | 0.7317 | 457.0 | 312.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -21.38 | 275.92 | 40.09 | 235.77 | 0.7276 | 345.0 | 347.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -14.90 | 273.42 | 37.60 | 242.72 | 0.6656 | 373.0 | 250.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -13.05 | 272.68 | 36.85 | 244.90 | 0.6474 | 482.0 | 423.9 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -13.21 | 272.47 | 36.64 | 244.57 | 0.6456 | 707.0 | 609.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -13.32 | 272.02 | 36.19 | 244.15 | 0.6408 | 820.0 | 703.2 | |
| 0.00 | 1.64 | 0.00 | 1.05 | -13.73 | 271.97 | 36.15 | 243.53 | 0.6424 | 503.0 | 410.9 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -14.88 | 272.07 | 36.25 | 241.95 | 0.6498 | 484.0 | 343.2 | |
| 0.00 | 1.64 | 0.00 | 1.05 | -13.37 | 271.76 | 35.93 | 243.92 | 0.6379 | 770.0 | 724.2 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -12.26 | 270.96 | 35.13 | 245.07 | 0.6224 | 772.0 | 618.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -12.26 | 270.01 | 34.18 | 244.50 | 0.6105 | 586.0 | 507.4 | |
| 45.25 | 225.05 | 27.76 | 138.16 | -10.37 | 269.34 | 33.52 | 247.01 | 0.5922 | 1170.8 | 321.5 | |
| 10.63 | 51.61 | 6.59 | 32.06 | -12.33 | 269.42 | 33.59 | 244.02 | 0.6035 | 866.4 | 175.9 | |
| 1.18 | -18.00 | 0.72 | -18.00 | -10.67 | 268.86 | 33.03 | 246.25 | 0.5875 | 1061.8 | 999999 | |
| 4.91 | -18.00 | 2.98 | -18.00 | -10.22 | 268.47 | 32.65 | 246.74 | 0.5801 | 1116.1 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.23 | -12.27 | 268.70 | 32.87 | 243.64 | 0.5941 | 720.0 | 572.3 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -11.82 | 268.49 | 32.66 | 244.20 | 0.5889 | 824.0 | 569.7 | |
| 0.00 | 6.27 | 0.00 | 3.85 | -12.58 | 268.52 | 32.69 | 243.04 | 0.5937 | 221.0 | 281.7 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -10.52 | 268.21 | 32.39 | 246.08 | 0.5783 | 626.0 | 584.8 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -12.13 | 268.31 | 32.48 | 243.59 | 0.5884 | 506.0 | 438.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.24 | 267.88 | 32.05 | 243.12 | 0.5836 | -646.0 | -529.2 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -11.73 | 267.74 | 31.91 | 243.83 | 0.5789 | 614.0 | 505.6 | |
| 0.00 | 3.00 | 0.00 | 1.82 | -12.05 | 267.74 | 31.92 | 243.33 | 0.5807 | -436.0 | -383.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -11.89 | 267.61 | 31.79 | 243.50 | 0.5781 | -351.0 | -301.8 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -11.41 | 267.44 | 31.61 | 244.15 | 0.5732 | 578.0 | 476.0 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -11.69 | 267.44 | 31.61 | 243.69 | 0.5748 | 333.0 | 157.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -11.02 | 267.21 | 31.39 | 244.61 | 0.5680 | 653.0 | 581.3 | |
| 0.91 | 3.18 | 0.54 | 1.91 | -10.86 | 267.05 | 31.22 | 244.76 | 0.5649 | 909.5 | 718.1 | |
| 0.00 | 1.91 | 0.00 | 1.18 | -15.04 | 267.63 | 31.81 | 238.68 | 0.5980 | -691.0 | -519.3 | |
| 9.09 | 198.43 | 5.54 | 120.06 | -13.72 | 267.35 | 31.53 | 240.46 | 0.5860 | -802.4 | -514.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -15.26 | 267.52 | 31.70 | 238.27 | 0.5982 | -696.0 | -568.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -11.45 | 266.94 | 31.11 | 243.72 | 0.5669 | 698.0 | 562.6 | |
| 16.08 | -36.00 | 9.74 | -36.00 | -13.19 | 266.94 | 31.12 | 240.96 | 0.5777 | -1238.0 | 999999 | |
| 0.00 | 6.81 | 0.00 | 4.01 | -8.55 | 266.20 | 30.37 | 248.10 | 0.5410 | 811.0 | 586.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -15.50 | 267.04 | 31.22 | 237.54 | 0.5941 | -585.0 | -527.6 | |
| 19.08 | -36.00 | 11.54 | -36.00 | -13.41 | 266.68 | 30.86 | 240.43 | 0.5758 | -1216.3 | 999999 | |
| 0.00 | 5.00 | 0.00 | 2.93 | -7.98 | 266.01 | 30.18 | 248.97 | 0.5355 | 702.0 | 743.2 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -8.26 | 266.03 | 30.21 | 248.49 | 0.5373 | 910.0 | 846.3 | |
| 0.36 | 1.45 | 0.21 | 0.86 | -9.82 | 266.10 | 30.28 | 245.84 | 0.5466 | 843.2 | 704.0 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -8.50 | 265.87 | 30.05 | 247.96 | 0.5364 | 800.0 | 674.4 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -9.00 | 265.85 | 30.02 | 247.07 | 0.5386 | 721.0 | 665.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -10.35 | 265.94 | 30.12 | 244.83 | 0.5475 | 678.0 | 485.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -9.47 | 265.82 | 29.99 | 246.24 | 0.5408 | 690.0 | 534.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -10.79 | 265.92 | 30.09 | 244.08 | 0.5497 | 561.0 | 496.5 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -8.18 | 265.63 | 29.81 | 248.36 | 0.5314 | 936.0 | 776.2 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -8.97 | 265.70 | 29.87 | 247.04 | 0.5364 | 727.0 | 664.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.40 | 265.54 | 29.72 | 247.92 | 0.5313 | 805.0 | 642.8 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -10.43 | 265.63 | 29.80 | 244.47 | 0.5438 | 792.0 | 678.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -10.91 | 265.64 | 29.82 | 243.68 | 0.5468 | 637.0 | 528.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -11.50 | 265.68 | 29.85 | 242.71 | 0.5509 | 605.0 | 464.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -9.42 | 265.39 | 29.56 | 246.02 | 0.5347 | 715.0 | 555.3 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -14.11 | 265.76 | 29.94 | 238.61 | 0.5691 | -698.0 | -490.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -13.18 | 265.56 | 29.73 | 239.91 | 0.5603 | -816.0 | -620.8 | |
| 0.00 | 0.55 | 0.00 | 0.33 | -13.66 | 265.63 | 29.80 | 239.21 | 0.5643 | -614.0 | -456.2 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -12.95 | 265.39 | 29.56 | 240.13 | 0.5565 | -758.0 | -659.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -12.54 | 265.30 | 29.47 | 240.73 | 0.5527 | -740.0 | -633.4 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -12.34 | 265.27 | 29.45 | 241.02 | 0.5511 | -936.0 | -706.5 | |
| 0.00 | 4.45 | 0.00 | 2.66 | -13.55 | 265.32 | 29.50 | 239.12 | 0.5598 | -751.0 | -573.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -15.16 | 265.52 | 29.69 | 236.80 | 0.5735 | -721.0 | -582.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -13.32 | 265.15 | 29.32 | 239.34 | 0.5561 | -651.0 | -585.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.18 | 264.93 | 29.10 | 241.02 | 0.5456 | -621.0 | -464.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -14.02 | 264.92 | 29.09 | 238.05 | 0.5581 | 514.0 | 436.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -3.25 | 263.89 | 28.07 | 256.70 | 0.4846 | 759.0 | 616.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.79 | 264.40 | 28.57 | 239.57 | 0.5430 | 475.0 | 421.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -14.81 | 263.81 | 27.98 | 235.82 | 0.5504 | -652.0 | -474.6 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -8.10 | 262.82 | 27.00 | 246.53 | 0.4919 | -787.0 | -601.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -15.43 | 263.07 | 27.25 | 234.17 | 0.5464 | -708.0 | -576.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.36 | 262.74 | 26.92 | 233.97 | 0.5419 | -618.0 | -522.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
