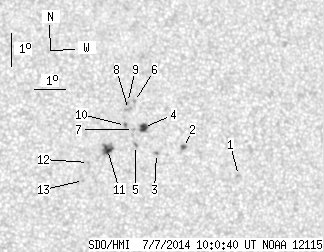

SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.27 | 35.44 | 4.80 | 18.34 | 7.56 | 252.33 | 16.50 | 284.50 | 0.2921 | 534.5 | 431.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.96 | 6.40 | 255.64 | 19.81 | 279.03 | 0.3425 | -777.0 | -634.7 | |
| 0.82 | 3.09 | 0.43 | 1.61 | 7.29 | 253.89 | 18.06 | 282.55 | 0.3164 | -983.9 | -704.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 7.13 | 253.01 | 17.18 | 282.55 | 0.3017 | -911.0 | -734.5 | |
| 3.82 | 5.72 | 1.98 | 2.97 | 7.93 | 252.63 | 16.80 | 285.45 | 0.2983 | 921.2 | 675.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 7.39 | 252.35 | 16.52 | 283.85 | 0.2917 | 646.0 | 582.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.73 | 252.37 | 16.55 | 288.27 | 0.2977 | 848.0 | 628.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 7.88 | 252.30 | 16.48 | 285.52 | 0.2929 | 958.0 | 778.0 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 8.49 | 252.17 | 16.34 | 287.68 | 0.2934 | 1013.0 | 784.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 8.70 | 252.15 | 16.32 | 288.40 | 0.2940 | 840.0 | 750.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 8.00 | 252.05 | 16.23 | 286.16 | 0.2893 | 1032.0 | 915.5 | |
| 4.63 | 10.90 | 2.39 | 5.62 | 7.28 | 251.45 | 15.62 | 284.17 | 0.2767 | 1068.7 | 781.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 6.89 | 250.83 | 15.00 | 283.25 | 0.2652 | 848.0 | 713.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 6.35 | 250.65 | 14.83 | 281.33 | 0.2605 | 977.0 | 753.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
