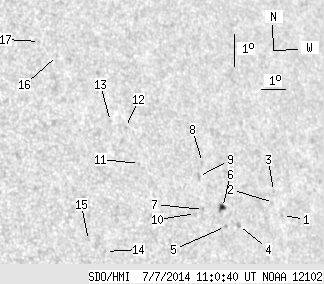

SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 23.00 | 1.88 | 15.60 | 12.01 | 277.89 | 42.62 | 283.91 | 0.6843 | -92.3 | -186.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.72 | 11.09 | 281.54 | 46.26 | 281.95 | 0.7270 | -560.0 | -446.8 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 11.51 | 281.22 | 45.95 | 282.56 | 0.7238 | -456.0 | -506.3 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 11.84 | 281.29 | 46.02 | 283.02 | 0.7251 | -396.0 | -444.8 | |
| 0.00 | 2.73 | 0.00 | 1.89 | 10.87 | 279.55 | 44.27 | 281.92 | 0.7029 | -739.0 | -466.0 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 10.86 | 278.98 | 43.71 | 282.00 | 0.6960 | -600.0 | -528.9 | |
| 2.73 | 4.72 | 1.88 | 3.25 | 11.45 | 278.96 | 43.69 | 282.84 | 0.6966 | -711.8 | -527.1 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 11.42 | 278.14 | 42.87 | 282.94 | 0.6865 | -653.0 | -591.6 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 12.87 | 278.40 | 43.12 | 284.98 | 0.6921 | -515.0 | -411.4 | |
| 0.00 | 2.36 | 0.00 | 1.61 | 12.44 | 278.13 | 42.86 | 284.42 | 0.6881 | -440.0 | -455.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 11.31 | 277.78 | 42.51 | 282.85 | 0.6819 | -197.0 | -268.2 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 12.95 | 275.76 | 40.48 | 285.69 | 0.6595 | 743.0 | 616.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 14.08 | 275.42 | 40.14 | 287.48 | 0.6578 | 536.0 | 512.7 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 14.29 | 274.84 | 39.57 | 287.96 | 0.6512 | 628.0 | 525.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 10.30 | 273.93 | 38.65 | 282.03 | 0.6305 | 529.0 | 399.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 10.66 | 273.31 | 38.03 | 282.73 | 0.6229 | 591.0 | 500.9 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 16.42 | 273.16 | 37.89 | 291.77 | 0.6366 | 584.0 | 429.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 16.88 | 272.55 | 37.27 | 292.73 | 0.6305 | 632.0 | 496.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
