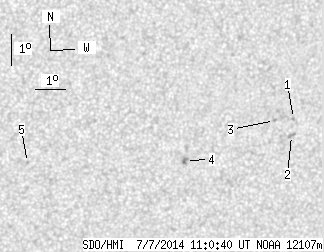

SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.26 | 0.00 | 5.79 | -14.32 | 257.64 | 22.37 | 230.36 | 0.4797 | 485.4 | 542.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | -13.63 | 259.81 | 24.53 | 234.32 | 0.4988 | 691.0 | 546.0 | |
| 0.00 | 3.18 | 0.00 | 1.82 | -14.17 | 259.80 | 24.53 | 233.41 | 0.5033 | 742.0 | 603.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.67 | 259.16 | 23.88 | 233.53 | 0.4912 | 646.0 | 532.8 | |
| 0.00 | 3.18 | 0.00 | 1.78 | -14.88 | 256.25 | 20.98 | 227.95 | 0.4678 | 943.0 | 830.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.83 | 251.00 | 15.72 | 219.92 | 0.4098 | -595.0 | -425.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
