SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 316.17 | 1882.75 | 165.67 | 987.99 | -7.84 | 220.11 | -15.17 | 127.48 | 0.3270 | 427.2 | 174.8 | |
|
previous
or next observation for the same group /

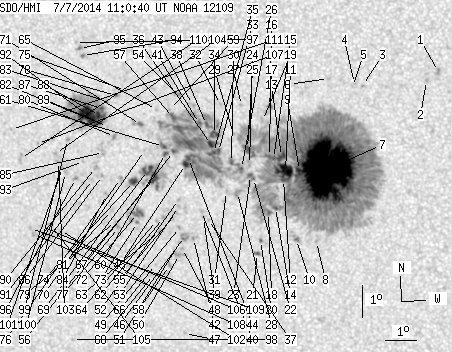

back to the solar disc SDO HMI 2014-07-07 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.09 | 0.00 | 1.57 | -4.92 | 225.68 | -9.60 | 131.39 | 0.2224 | 1021.0 | 867.7 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -5.20 | 225.30 | -9.97 | 131.24 | 0.2304 | 895.0 | 727.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.38 | 223.30 | -11.97 | 126.68 | 0.2587 | -912.0 | -712.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.32 | 223.05 | -12.22 | 125.93 | 0.2615 | -919.0 | -649.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.42 | 222.99 | -12.29 | 126.07 | 0.2633 | -515.0 | -459.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -5.18 | 222.24 | -13.03 | 123.75 | 0.2713 | 733.0 | 504.6 | |
| 190.51 | 1205.30 | 98.96 | 627.25 | -8.00 | 222.10 | -13.18 | 131.32 | 0.3019 | 1620.9 | 432.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -10.25 | 221.69 | -13.58 | 135.69 | 0.3323 | 426.0 | 239.7 | |
| 0.27 | -7.00 | 0.14 | -7.00 | -8.04 | 221.24 | -14.03 | 129.65 | 0.3132 | 1046.0 | 999999 | |
| 0.55 | 4.91 | 0.29 | 2.58 | -10.20 | 221.06 | -14.22 | 134.27 | 0.3391 | 823.7 | 562.4 | |
| 16.81 | -7.00 | 8.78 | -7.00 | -8.05 | 220.80 | -14.48 | 128.79 | 0.3190 | 1038.0 | 999999 | |
| 3.00 | -7.00 | 1.57 | -7.00 | -8.33 | 220.72 | -14.55 | 129.34 | 0.3229 | 694.2 | 999999 | |
| 5.63 | -7.00 | 2.94 | -7.00 | -7.61 | 220.69 | -14.59 | 127.49 | 0.3161 | 972.6 | 999999 | |
| 1.36 | -7.00 | 0.72 | -7.00 | -9.21 | 220.43 | -14.85 | 130.85 | 0.3358 | 312.7 | 999999 | |
| 2.09 | -7.00 | 1.09 | -7.00 | -7.68 | 220.43 | -14.85 | 127.18 | 0.3201 | 832.3 | 999999 | |
| 1.27 | -7.00 | 0.67 | -7.00 | -7.62 | 220.30 | -14.97 | 126.80 | 0.3212 | 812.0 | 999999 | |
| 0.82 | 4.91 | 0.43 | 2.55 | -6.07 | 220.36 | -14.92 | 122.79 | 0.3059 | -778.9 | -186.1 | |
| 1.18 | -7.00 | 0.62 | -7.00 | -9.37 | 220.20 | -15.08 | 130.77 | 0.3404 | 741.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -6.51 | 220.12 | -15.16 | 123.57 | 0.3131 | 155.0 | 195.0 | |
| 0.36 | 1.91 | 0.19 | 1.01 | -10.25 | 219.90 | -15.38 | 132.15 | 0.3535 | -845.0 | -721.1 | |
| 1.00 | 2.82 | 0.53 | 1.49 | -10.66 | 219.78 | -15.49 | 132.80 | 0.3594 | -1038.3 | -848.7 | |
| 0.55 | 330.78 | 0.29 | 174.83 | -8.31 | 219.77 | -15.51 | 127.53 | 0.3351 | 902.7 | -15.6 | |
| 1.18 | -22.00 | 0.62 | -22.00 | -8.22 | 219.67 | -15.60 | 127.14 | 0.3354 | 872.1 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.15 | -7.88 | 219.66 | -15.62 | 126.28 | 0.3323 | 1055.0 | 744.6 | |
| 3.82 | -7.00 | 2.00 | -7.00 | -7.38 | 219.61 | -15.67 | 124.97 | 0.3282 | 978.3 | 999999 | |
| 0.64 | -22.00 | 0.33 | -22.00 | -8.01 | 219.39 | -15.88 | 126.14 | 0.3370 | 1046.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -6.05 | 219.47 | -15.81 | 121.25 | 0.3183 | 258.0 | 265.0 | |
| 0.00 | 5.72 | 0.00 | 3.02 | -8.76 | 219.23 | -16.04 | 127.64 | 0.3464 | -78.0 | -171.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -6.92 | 219.18 | -16.10 | 123.08 | 0.3299 | 838.0 | 622.4 | |
| 1.36 | -22.00 | 0.72 | -22.00 | -7.82 | 219.08 | -16.19 | 125.17 | 0.3395 | 931.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.73 | 218.88 | -16.39 | 126.99 | 0.3508 | -632.0 | -404.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.03 | 218.80 | -16.48 | 120.15 | 0.3277 | 769.0 | 588.5 | |
| 1.36 | -22.00 | 0.72 | -22.00 | -7.49 | 218.68 | -16.60 | 123.70 | 0.3419 | 1119.6 | 999999 | |
| 4.63 | -22.00 | 2.44 | -22.00 | -6.96 | 218.57 | -16.71 | 122.22 | 0.3387 | 988.5 | 999999 | |
| 1.64 | -22.00 | 0.86 | -22.00 | -7.52 | 218.52 | -16.76 | 123.52 | 0.3444 | 804.3 | 999999 | |
| 4.09 | -22.00 | 2.15 | -22.00 | -7.28 | 218.46 | -16.81 | 122.83 | 0.3429 | 970.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.62 | 218.26 | -17.02 | 127.95 | 0.3675 | -756.0 | -654.5 | |
| 1.45 | -22.00 | 0.77 | -22.00 | -6.66 | 218.33 | -16.95 | 121.07 | 0.3395 | 750.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -9.56 | 218.10 | -17.18 | 127.56 | 0.3690 | -807.0 | -707.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -9.37 | 218.04 | -17.23 | 127.06 | 0.3679 | -942.0 | -684.1 | |
| 1.18 | -22.00 | 0.62 | -22.00 | -6.63 | 218.10 | -17.17 | 120.67 | 0.3425 | 651.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.22 | 217.74 | -17.54 | 128.41 | 0.3801 | -862.0 | -644.1 | |
| 0.00 | 3.45 | 0.00 | 1.82 | -6.05 | 217.90 | -17.38 | 118.88 | 0.3407 | -478.0 | -360.8 | |
| 2.36 | -22.00 | 1.25 | -22.00 | -7.72 | 217.70 | -17.57 | 122.77 | 0.3573 | -1040.2 | 999999 | |
| 3.18 | -22.00 | 1.69 | -22.00 | -7.91 | 217.60 | -17.68 | 123.06 | 0.3604 | -931.9 | 999999 | |
| 0.00 | 6.54 | 0.00 | 3.51 | -10.16 | 217.45 | -17.83 | 127.83 | 0.3832 | -816.0 | -899.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -13.23 | 217.24 | -18.04 | 133.46 | 0.4171 | -775.0 | -521.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.54 | 217.36 | -17.92 | 128.48 | 0.3880 | -815.0 | -632.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -9.88 | 217.30 | -17.98 | 127.02 | 0.3824 | -948.0 | -769.0 | |
| 0.00 | 5.00 | 0.00 | 2.69 | -10.73 | 217.25 | -18.03 | 128.71 | 0.3913 | -880.0 | -692.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -10.35 | 217.27 | -18.00 | 127.97 | 0.3873 | -819.0 | -625.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -9.01 | 217.32 | -17.96 | 125.14 | 0.3740 | -945.0 | -756.8 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -9.23 | 217.31 | -17.97 | 125.61 | 0.3762 | -806.0 | -638.6 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -5.75 | 217.43 | -17.85 | 117.46 | 0.3452 | -979.0 | -897.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -9.42 | 217.23 | -18.05 | 125.91 | 0.3789 | -856.0 | -686.5 | |
| 1.00 | -22.00 | 0.53 | -22.00 | -7.51 | 217.23 | -18.05 | 121.58 | 0.3621 | -699.6 | 999999 | |
| 2.36 | -22.00 | 1.25 | -22.00 | -6.46 | 217.27 | -18.00 | 119.07 | 0.3529 | -874.4 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -11.08 | 216.90 | -18.38 | 128.88 | 0.3991 | -768.0 | -662.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.22 | 217.15 | -18.12 | 118.29 | 0.3527 | -962.0 | -668.3 | |
| 1.36 | -22.00 | 0.73 | -22.00 | -7.58 | 216.97 | -18.31 | 121.37 | 0.3663 | -936.7 | 999999 | |
| 2.00 | -22.00 | 1.06 | -22.00 | -7.37 | 216.91 | -18.37 | 120.78 | 0.3653 | -1158.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -9.58 | 216.80 | -18.48 | 125.62 | 0.3861 | -844.0 | -726.2 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -10.02 | 216.64 | -18.64 | 126.33 | 0.3922 | -886.0 | -716.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.68 | 216.56 | -18.71 | 125.49 | 0.3901 | -813.0 | -693.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.22 | 216.73 | -18.54 | 117.77 | 0.3589 | -805.0 | -563.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -11.06 | 216.44 | -18.83 | 128.16 | 0.4046 | -662.0 | -488.1 | |
| 6.00 | 54.69 | 3.21 | 29.27 | -8.34 | 216.57 | -18.70 | 122.57 | 0.3781 | -1097.1 | -704.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.38 | 216.35 | -18.92 | 128.65 | 0.4088 | -621.0 | -476.3 | |
| 6.09 | -67.00 | 3.26 | -67.00 | -8.12 | 216.36 | -18.92 | 121.79 | 0.3793 | -1110.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -7.50 | 216.29 | -18.99 | 120.27 | 0.3751 | -956.0 | -756.9 | |
| 0.91 | 5.72 | 0.48 | 3.05 | -6.70 | 216.19 | -19.08 | 118.25 | 0.3702 | -1136.6 | -868.2 | |
| 4.00 | 16.90 | 2.16 | 9.12 | -9.47 | 215.95 | -19.32 | 124.20 | 0.3963 | -1052.4 | -692.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -9.75 | 215.94 | -19.34 | 124.77 | 0.3990 | -812.0 | -700.8 | |
| 4.36 | -67.00 | 2.34 | -67.00 | -8.47 | 215.88 | -19.40 | 121.94 | 0.3887 | -949.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.65 | 215.75 | -19.53 | 115.17 | 0.3691 | -850.0 | -693.4 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -8.39 | 215.46 | -19.82 | 121.21 | 0.3938 | -1006.0 | -817.3 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -9.92 | 215.30 | -19.97 | 124.26 | 0.4089 | -715.0 | -596.8 | |
| 0.45 | 2.18 | 0.24 | 1.16 | -5.82 | 215.42 | -19.86 | 115.19 | 0.3751 | -1025.0 | -896.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.74 | 215.21 | -20.06 | 123.77 | 0.4084 | -606.0 | -527.8 | |
| 0.00 | 2.45 | 0.00 | 1.32 | -7.09 | 215.33 | -19.95 | 118.11 | 0.3854 | -991.0 | -829.3 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -9.39 | 215.10 | -20.17 | 122.91 | 0.4069 | -763.0 | -639.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -6.78 | 215.11 | -20.16 | 117.15 | 0.3863 | -816.0 | -684.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -6.01 | 215.11 | -20.16 | 115.32 | 0.3808 | -871.0 | -729.8 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -8.90 | 214.97 | -20.31 | 121.69 | 0.4046 | -929.0 | -747.4 | |
| 0.00 | 2.91 | 0.00 | 1.57 | -7.59 | 214.94 | -20.33 | 118.80 | 0.3947 | -634.0 | -568.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.31 | 214.87 | -20.40 | 120.30 | 0.4012 | -860.0 | -738.7 | |
| 1.64 | 120.10 | 0.88 | 64.68 | -6.23 | 214.94 | -20.33 | 115.65 | 0.3848 | -1078.9 | -394.4 | |
| 6.09 | -87.00 | 3.27 | -87.00 | -6.45 | 214.87 | -20.41 | 116.08 | 0.3874 | -1293.1 | 999999 | |
| 2.45 | -87.00 | 1.32 | -87.00 | -6.66 | 214.86 | -20.42 | 116.58 | 0.3891 | -970.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.38 | -8.06 | 214.66 | -20.62 | 119.50 | 0.4023 | -938.0 | -809.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.44 | 214.54 | -20.74 | 120.18 | 0.4069 | -631.0 | -512.6 | |
| 25.17 | -87.00 | 13.55 | -87.00 | -6.45 | 214.47 | -20.80 | 115.67 | 0.3932 | -1135.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.88 | 214.27 | -21.01 | 118.66 | 0.4064 | -646.0 | -532.9 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -4.60 | 214.38 | -20.90 | 111.17 | 0.3829 | -942.0 | -847.8 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -4.39 | 214.29 | -20.99 | 110.56 | 0.3830 | -929.0 | -807.8 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -8.42 | 213.98 | -21.30 | 119.48 | 0.4145 | -776.0 | -627.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -4.21 | 214.16 | -21.11 | 110.00 | 0.3839 | -648.0 | -497.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.50 | 213.48 | -21.80 | 128.66 | 0.4643 | -712.0 | -503.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -7.21 | 213.78 | -21.50 | 116.64 | 0.4085 | -893.0 | -757.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -8.24 | 213.66 | -21.62 | 118.74 | 0.4176 | -610.0 | -534.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -8.09 | 213.56 | -21.71 | 118.31 | 0.4177 | -793.0 | -601.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -10.06 | 213.37 | -21.91 | 122.14 | 0.4357 | -806.0 | -690.8 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -7.90 | 213.44 | -21.83 | 117.78 | 0.4181 | -644.0 | -589.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -7.66 | 213.36 | -21.92 | 117.16 | 0.4176 | -759.0 | -559.8 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -9.88 | 213.05 | -22.23 | 121.41 | 0.4385 | -889.0 | -667.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -9.95 | 212.74 | -22.54 | 121.21 | 0.4432 | -718.0 | -578.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -7.36 | 212.78 | -22.50 | 115.93 | 0.4238 | 577.0 | 345.1 | |
| 0.00 | 2.73 | 0.00 | 1.51 | -10.20 | 212.49 | -22.79 | 121.43 | 0.4486 | -444.0 | -568.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -10.02 | 212.37 | -22.91 | 120.93 | 0.4487 | -611.0 | -529.9 | |
| 0.00 | 4.45 | 0.00 | 2.45 | -7.84 | 212.18 | -23.10 | 116.35 | 0.4355 | -637.0 | -563.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -6.94 | 211.93 | -23.35 | 114.23 | 0.4332 | -676.0 | -516.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
