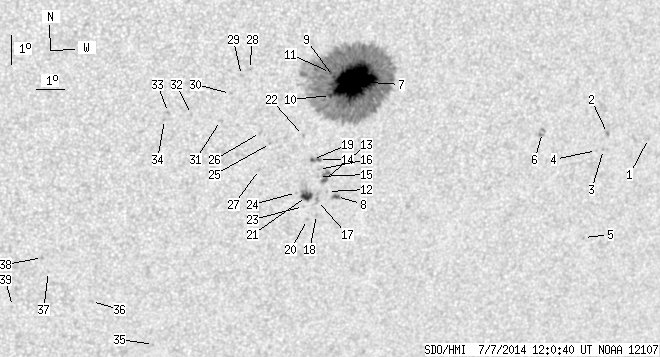

SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.83 | 604.13 | 57.39 | 346.99 | -19.32 | 255.08 | 20.36 | 220.44 | 0.5084 | 723.6 | 343.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.47 | -21.18 | 266.26 | 31.53 | 229.96 | 0.6392 | 619.0 | 616.0 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -20.96 | 264.65 | 29.92 | 228.85 | 0.6208 | 810.0 | 693.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -21.49 | 264.61 | 29.89 | 228.13 | 0.6249 | 726.0 | 628.8 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -21.52 | 264.36 | 29.63 | 227.86 | 0.6225 | 510.0 | 459.3 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -24.48 | 264.58 | 29.85 | 224.41 | 0.6496 | 660.0 | 615.4 | |
| 0.00 | 4.00 | 0.00 | 2.46 | -20.85 | 262.20 | 27.47 | 226.69 | 0.5947 | 629.0 | 646.6 | |
| 85.39 | 535.06 | 48.96 | 306.49 | -18.96 | 255.21 | 20.49 | 221.13 | 0.5053 | 1412.9 | 404.6 | |
| 1.45 | 2.91 | 0.86 | 1.72 | -22.81 | 255.13 | 20.41 | 216.13 | 0.5472 | -986.6 | -774.4 | |
| 1.27 | -7.00 | 0.73 | -7.00 | -18.78 | 254.47 | 19.75 | 220.36 | 0.4959 | 1396.6 | 999999 | |
| 1.00 | -7.00 | 0.57 | -7.00 | -19.40 | 254.45 | 19.72 | 219.47 | 0.5027 | 1044.2 | 999999 | |
| 1.09 | -7.00 | 0.62 | -7.00 | -18.64 | 254.35 | 19.63 | 220.38 | 0.4933 | 1273.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -22.63 | 254.79 | 20.06 | 215.89 | 0.5423 | -733.0 | -546.2 | |
| 1.54 | 8.54 | 0.91 | 5.00 | -22.22 | 254.62 | 19.90 | 216.15 | 0.5361 | 594.1 | 79.7 | |
| 0.82 | 5.27 | 0.48 | 3.06 | -21.54 | 254.31 | 19.59 | 216.56 | 0.5256 | 816.3 | 639.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.11 | 254.40 | 19.67 | 215.97 | 0.5329 | 538.0 | 426.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.87 | 254.36 | 19.64 | 216.21 | 0.5299 | 854.0 | 697.2 | |
| 0.00 | 2.73 | 0.00 | 1.61 | -22.93 | 254.48 | 19.76 | 215.13 | 0.5431 | -845.0 | -693.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -23.40 | 254.52 | 19.79 | 214.64 | 0.5489 | -557.0 | -449.0 | |
| 0.73 | -14.00 | 0.42 | -14.00 | -21.53 | 254.10 | 19.38 | 216.27 | 0.5237 | 893.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -23.57 | 254.23 | 19.50 | 214.06 | 0.5484 | -649.0 | -462.4 | |
| 6.54 | 12.72 | 3.84 | 7.46 | -22.78 | 254.07 | 19.35 | 214.75 | 0.5379 | -1017.9 | -691.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -20.72 | 253.68 | 18.96 | 216.69 | 0.5106 | 751.0 | 620.7 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -23.12 | 254.02 | 19.29 | 214.29 | 0.5414 | -545.0 | -479.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.64 | 253.70 | 18.98 | 214.41 | 0.5331 | -665.0 | -615.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.96 | 252.58 | 17.85 | 214.79 | 0.5037 | 704.0 | 459.6 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -20.58 | 252.19 | 17.47 | 214.68 | 0.4958 | 769.0 | 539.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.83 | 252.31 | 17.58 | 213.37 | 0.5119 | -638.0 | -530.8 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -18.48 | 251.59 | 16.86 | 216.44 | 0.4651 | -586.0 | -456.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.68 | 251.34 | 16.62 | 215.79 | 0.4651 | -792.0 | -641.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -19.26 | 251.03 | 16.30 | 214.52 | 0.4696 | -706.0 | -516.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -20.16 | 250.79 | 16.06 | 213.01 | 0.4786 | -693.0 | -463.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -19.94 | 249.79 | 15.06 | 211.63 | 0.4676 | -733.0 | -554.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.86 | 249.01 | 14.28 | 210.40 | 0.4603 | -799.0 | -659.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.09 | 248.89 | 14.17 | 209.94 | 0.4625 | -695.0 | -602.9 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -27.84 | 249.40 | 14.67 | 203.34 | 0.5674 | -532.0 | -466.6 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -26.27 | 247.02 | 12.30 | 201.06 | 0.5336 | -704.0 | -531.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -25.20 | 245.43 | 10.71 | 199.30 | 0.5106 | -674.0 | -559.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -24.71 | 245.18 | 10.46 | 199.24 | 0.5025 | -731.0 | -626.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -26.41 | 244.30 | 9.57 | 196.63 | 0.5224 | -450.0 | -396.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
