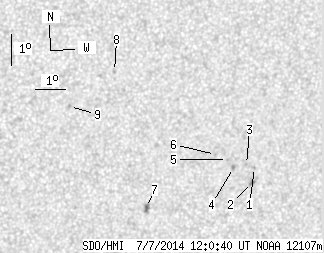

SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.91 | 0.00 | 8.97 | -13.53 | 257.61 | 22.89 | 232.52 | 0.4778 | 781.0 | 646.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.73 | -13.67 | 259.85 | 25.12 | 234.87 | 0.5065 | 777.0 | 674.4 | |
| 0.00 | 2.82 | 0.00 | 1.62 | -14.15 | 259.80 | 25.08 | 234.02 | 0.5098 | 761.0 | 628.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.57 | 259.56 | 24.84 | 234.73 | 0.5021 | 734.0 | 587.5 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -13.65 | 259.12 | 24.40 | 234.12 | 0.4973 | 689.0 | 559.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -13.39 | 258.89 | 24.16 | 234.31 | 0.4922 | 750.0 | 650.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -13.22 | 258.46 | 23.73 | 234.12 | 0.4855 | 760.0 | 600.2 | |
| 0.00 | 4.00 | 0.00 | 2.25 | -14.86 | 256.28 | 21.55 | 228.74 | 0.4742 | 991.0 | 768.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.51 | 254.84 | 20.11 | 234.73 | 0.4158 | 755.0 | 554.2 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -11.58 | 253.43 | 18.70 | 230.63 | 0.4080 | 812.0 | 600.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
