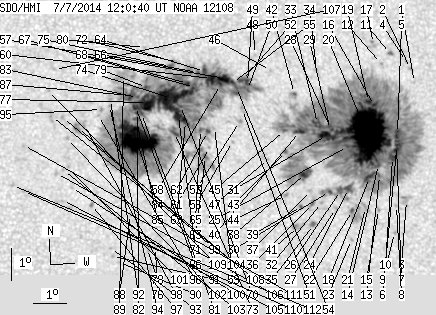

SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 472.38 | 2201.05 | 239.30 | 1115.99 | -7.18 | 239.75 | 5.02 | 203.40 | 0.2117 | -1.8 | 72.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.37 | -5.75 | 244.19 | 9.46 | 225.53 | 0.2303 | 717.0 | 555.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -5.31 | 244.06 | 9.33 | 226.51 | 0.2236 | 923.0 | 659.9 | |
| 0.00 | 8.27 | 0.00 | 4.26 | -9.41 | 244.02 | 9.29 | 215.49 | 0.2756 | -69.0 | 45.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.09 | 243.93 | 9.21 | 226.84 | 0.2195 | 774.0 | 545.6 | |
| 4.45 | 1093.46 | 2.27 | 556.86 | -7.32 | 243.69 | 8.96 | 219.46 | 0.2443 | 1068.9 | 478.0 | |
| 2.36 | -5.00 | 1.21 | -5.00 | -7.82 | 243.67 | 8.94 | 218.12 | 0.2506 | 1162.7 | 999999 | |
| 1.73 | -5.00 | 0.88 | -5.00 | -7.69 | 243.67 | 8.94 | 218.42 | 0.2489 | 1086.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.56 | 243.71 | 8.98 | 214.26 | 0.2747 | 347.0 | 351.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.41 | 243.67 | 8.94 | 212.45 | 0.2862 | -645.0 | -648.2 | |
| 3.91 | -5.00 | 2.00 | -5.00 | -8.06 | 243.55 | 8.82 | 217.14 | 0.2526 | 943.9 | 999999 | |
| 0.64 | 2.18 | 0.32 | 1.10 | -4.84 | 243.43 | 8.71 | 226.10 | 0.2103 | -897.4 | -698.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.15 | 243.16 | 8.43 | 224.14 | 0.2107 | 895.0 | 680.2 | |
| 0.27 | -5.00 | 0.14 | -5.00 | -8.62 | 243.16 | 8.43 | 214.60 | 0.2564 | 842.0 | 999999 | |
| 1.36 | -5.00 | 0.70 | -5.00 | -8.28 | 243.12 | 8.39 | 215.26 | 0.2512 | 603.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -9.68 | 243.15 | 8.42 | 212.33 | 0.2712 | 716.0 | 572.7 | |
| 1.09 | -5.00 | 0.55 | -5.00 | -6.44 | 242.96 | 8.23 | 219.47 | 0.2249 | 1181.1 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.42 | -4.53 | 242.91 | 8.18 | 225.40 | 0.2001 | -547.0 | -375.2 | |
| 6.90 | -5.00 | 3.54 | -5.00 | -8.68 | 242.85 | 8.12 | 213.48 | 0.2542 | 848.6 | 999999 | |
| 2.63 | -5.00 | 1.34 | -5.00 | -6.32 | 242.77 | 8.05 | 219.18 | 0.2212 | 1372.9 | 999999 | |
| 162.42 | -5.00 | 82.76 | -5.00 | -7.34 | 242.76 | 8.03 | 216.36 | 0.2348 | 1477.6 | 999999 | |
| 0.00 | 5.09 | 0.00 | 2.61 | -9.61 | 242.74 | 8.01 | 211.19 | 0.2666 | 57.0 | 56.1 | |
| 1.00 | 16.81 | 0.51 | 8.64 | -9.70 | 242.34 | 7.61 | 209.72 | 0.2645 | 905.4 | 166.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.61 | 242.33 | 7.60 | 208.04 | 0.2778 | -483.0 | -464.6 | |
| 4.54 | 33.70 | 2.33 | 17.25 | -9.01 | 242.20 | 7.47 | 210.62 | 0.2533 | 1023.5 | 542.8 | |
| 1.18 | -5.00 | 0.60 | -5.00 | -7.71 | 242.14 | 7.42 | 213.32 | 0.2340 | 1017.0 | 999999 | |
| 2.73 | -24.00 | 1.39 | -24.00 | -9.08 | 241.95 | 7.22 | 209.66 | 0.2520 | 1023.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -9.64 | 241.81 | 7.08 | 208.10 | 0.2592 | 604.0 | 579.4 | |
| 1.27 | -5.00 | 0.65 | -5.00 | -7.17 | 241.64 | 6.91 | 212.76 | 0.2217 | 1257.4 | 999999 | |
| 1.64 | -5.00 | 0.83 | -5.00 | -7.08 | 241.58 | 6.85 | 212.76 | 0.2197 | 1143.2 | 999999 | |
| 1.27 | -24.00 | 0.65 | -24.00 | -9.10 | 241.61 | 6.88 | 208.43 | 0.2496 | 905.8 | 999999 | |
| 10.99 | -5.00 | 5.59 | -5.00 | -7.36 | 241.49 | 6.76 | 211.74 | 0.2230 | 1357.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.44 | 241.37 | 6.64 | 206.95 | 0.2528 | 776.0 | 694.9 | |
| 7.99 | -5.00 | 4.05 | -5.00 | -6.98 | 241.20 | 6.48 | 211.55 | 0.2150 | 1159.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.31 | 241.15 | 6.43 | 215.97 | 0.1907 | -844.0 | -641.5 | |
| 1.00 | 3.09 | 0.51 | 1.58 | -10.13 | 241.13 | 6.40 | 204.94 | 0.2615 | 927.2 | 674.6 | |
| 0.00 | 5.63 | 0.00 | 2.88 | -9.47 | 241.09 | 6.36 | 205.91 | 0.2512 | 933.0 | 765.4 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -9.07 | 241.02 | 6.29 | 206.40 | 0.2445 | 982.0 | 721.2 | |
| 7.09 | -5.00 | 3.61 | -5.00 | -8.54 | 240.85 | 6.13 | 206.81 | 0.2352 | 1168.3 | 999999 | |
| 0.64 | 1.64 | 0.33 | 0.84 | -9.56 | 240.75 | 6.02 | 204.54 | 0.2501 | 850.1 | 702.7 | |
| 4.09 | -5.00 | 2.07 | -5.00 | -7.23 | 240.65 | 5.93 | 208.76 | 0.2138 | 1156.8 | 999999 | |
| 0.00 | 6.36 | 0.00 | 3.26 | -10.19 | 240.66 | 5.94 | 203.24 | 0.2592 | 157.0 | 140.2 | |
| 0.55 | 5.45 | 0.28 | 2.75 | -6.05 | 240.48 | 5.76 | 210.95 | 0.1949 | -456.0 | 244.0 | |
| 0.55 | -5.00 | 0.28 | -5.00 | -7.85 | 240.23 | 5.50 | 205.71 | 0.2199 | -945.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.22 | 240.24 | 5.52 | 203.28 | 0.2413 | 894.0 | 783.8 | |
| 1.00 | -5.00 | 0.51 | -5.00 | -7.19 | 240.19 | 5.46 | 206.91 | 0.2096 | 1028.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.33 | 239.74 | 5.01 | 209.45 | 0.1778 | 914.0 | 736.8 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.06 | 239.70 | 4.98 | 203.15 | 0.2195 | -565.0 | -430.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.84 | 239.28 | 4.55 | 208.50 | 0.1665 | 707.0 | 594.2 | |
| 4.00 | 883.25 | 2.01 | 445.09 | -5.70 | 239.04 | 4.31 | 204.98 | 0.1779 | -759.2 | -429.9 | |
| 1.09 | -49.00 | 0.55 | -49.00 | -5.92 | 239.04 | 4.31 | 204.48 | 0.1813 | -723.0 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -6.53 | 238.89 | 4.16 | 202.41 | 0.1900 | 420.0 | 436.9 | |
| 2.45 | -49.00 | 1.23 | -49.00 | -5.64 | 238.85 | 4.13 | 204.18 | 0.1756 | -873.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -6.91 | 238.80 | 4.07 | 201.26 | 0.1954 | 934.0 | 788.7 | |
| 2.82 | -49.00 | 1.42 | -49.00 | -5.85 | 238.70 | 3.97 | 202.90 | 0.1779 | -899.1 | 999999 | |
| 1.27 | -49.00 | 0.64 | -49.00 | -5.70 | 238.58 | 3.85 | 202.60 | 0.1746 | -1061.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.52 | 238.59 | 3.86 | 199.19 | 0.2041 | 581.0 | 489.3 | |
| 7.54 | -49.00 | 3.79 | -49.00 | -5.57 | 238.33 | 3.60 | 201.55 | 0.1711 | -1137.4 | 999999 | |
| 1.54 | -49.00 | 0.78 | -49.00 | -5.76 | 238.21 | 3.48 | 200.51 | 0.1733 | -900.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -7.09 | 238.03 | 3.30 | 197.23 | 0.1940 | -643.0 | -460.5 | |
| 7.63 | -49.00 | 3.83 | -49.00 | -5.57 | 237.93 | 3.20 | 199.36 | 0.1686 | -1315.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.71 | 237.88 | 3.15 | 195.62 | 0.2035 | -513.0 | -332.2 | |
| 1.45 | -49.00 | 0.73 | -49.00 | -7.21 | 237.82 | 3.09 | 196.00 | 0.1949 | -780.0 | 999999 | |
| 1.36 | 34.52 | 0.69 | 17.48 | -7.99 | 237.76 | 3.03 | 194.69 | 0.2075 | -732.8 | -390.8 | |
| 3.72 | -49.00 | 1.87 | -49.00 | -5.35 | 237.72 | 2.99 | 198.56 | 0.1639 | 218.9 | 999999 | |
| 0.91 | -49.00 | 0.46 | -49.00 | -7.15 | 237.60 | 2.87 | 195.02 | 0.1929 | -814.1 | 999999 | |
| 1.00 | -49.00 | 0.50 | -49.00 | -5.38 | 237.50 | 2.78 | 197.26 | 0.1632 | 870.4 | 999999 | |
| 4.81 | -49.00 | 2.42 | -49.00 | -5.85 | 237.41 | 2.68 | 195.94 | 0.1704 | -1012.9 | 999999 | |
| 2.09 | -49.00 | 1.05 | -49.00 | -5.72 | 237.20 | 2.47 | 194.91 | 0.1674 | -1088.8 | 999999 | |
| 5.36 | -49.00 | 2.70 | -49.00 | -6.90 | 237.14 | 2.41 | 192.99 | 0.1868 | -1046.7 | 999999 | |
| 2.00 | -49.00 | 1.01 | -49.00 | -6.40 | 236.98 | 2.26 | 192.77 | 0.1779 | -1004.4 | 999999 | |
| 8.63 | -49.00 | 4.35 | -49.00 | -6.71 | 236.92 | 2.20 | 192.07 | 0.1829 | -1189.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.07 | 236.92 | 2.19 | 194.27 | 0.1553 | -84.0 | -87.8 | |
| 4.00 | -49.00 | 2.02 | -49.00 | -7.24 | 236.80 | 2.08 | 190.87 | 0.1913 | -833.5 | 999999 | |
| 46.15 | -49.00 | 23.21 | -49.00 | -6.18 | 236.71 | 1.98 | 191.49 | 0.1732 | -1321.7 | 999999 | |
| 1.54 | -49.00 | 0.77 | -49.00 | -5.20 | 236.67 | 1.95 | 192.56 | 0.1564 | -802.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.83 | 236.23 | 1.50 | 185.92 | 0.2507 | -755.0 | -633.2 | |
| 22.89 | -49.00 | 11.51 | -49.00 | -6.31 | 235.97 | 1.24 | 187.19 | 0.1732 | -1394.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.49 | -10.86 | 235.98 | 1.25 | 184.94 | 0.2508 | -828.0 | -639.5 | |
| 2.27 | -49.00 | 1.14 | -49.00 | -5.84 | 235.94 | 1.21 | 187.36 | 0.1652 | -846.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -4.61 | 235.88 | 1.15 | 188.04 | 0.1439 | -808.0 | -717.0 | |
| 1.82 | -49.00 | 0.91 | -49.00 | -6.65 | 235.79 | 1.06 | 185.94 | 0.1787 | -1187.9 | 999999 | |
| 1.73 | -49.00 | 0.87 | -49.00 | -6.61 | 235.66 | 0.94 | 185.27 | 0.1779 | -1238.0 | 999999 | |
| 1.00 | -49.00 | 0.50 | -49.00 | -6.15 | 235.66 | 0.94 | 185.52 | 0.1700 | -1151.3 | 999999 | |
| 83.30 | -49.00 | 42.05 | -49.00 | -7.45 | 235.63 | 0.91 | 184.71 | 0.1923 | -1391.3 | 999999 | |
| 2.27 | -49.00 | 1.14 | -49.00 | -6.83 | 235.63 | 0.91 | 184.99 | 0.1816 | -1360.3 | 999999 | |
| 5.09 | -49.00 | 2.56 | -49.00 | -6.43 | 235.60 | 0.88 | 185.02 | 0.1747 | -1175.3 | 999999 | |
| 5.36 | -49.00 | 2.69 | -49.00 | -6.09 | 235.45 | 0.72 | 184.29 | 0.1686 | -1160.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.79 | 235.45 | 0.73 | 183.10 | 0.2320 | -679.0 | -492.2 | |
| 0.00 | 20.44 | 0.00 | 10.25 | -5.50 | 235.24 | 0.51 | 183.22 | 0.1582 | -286.0 | -348.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -11.30 | 235.11 | 0.39 | 181.48 | 0.2574 | -722.0 | -510.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -11.11 | 234.89 | 0.17 | 180.65 | 0.2541 | -824.0 | -637.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.21 | 234.84 | 0.11 | 180.65 | 0.1702 | -987.0 | -813.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -10.86 | 234.83 | 0.11 | 180.42 | 0.2498 | -949.0 | -731.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.40 | 234.81 | 0.08 | 180.46 | 0.1734 | -988.0 | -853.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.52 | 234.56 | -0.17 | 179.06 | 0.1756 | -1060.0 | -864.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.70 | 234.47 | -0.26 | 178.56 | 0.1788 | -1021.0 | -805.4 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -9.47 | 234.25 | -0.48 | 177.90 | 0.2265 | 973.0 | 717.6 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -6.98 | 234.04 | -0.69 | 176.27 | 0.1840 | -1107.0 | -912.6 | |
| 0.00 | 6.45 | 0.00 | 3.25 | -7.08 | 233.82 | -0.90 | 175.15 | 0.1858 | -1135.0 | -943.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -8.94 | 233.63 | -1.10 | 175.01 | 0.2180 | -782.0 | -493.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.32 | 233.54 | -1.19 | 174.32 | 0.2076 | -890.0 | -696.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -7.42 | 233.51 | -1.21 | 173.71 | 0.1922 | -894.0 | -661.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.41 | 233.39 | -1.34 | 173.63 | 0.2094 | -793.0 | -620.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -6.77 | 233.36 | -1.36 | 172.48 | 0.1814 | -874.0 | -774.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.35 | 233.35 | -1.37 | 173.94 | 0.2254 | -553.0 | -492.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -8.51 | 233.17 | -1.56 | 172.67 | 0.2115 | -825.0 | -611.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.28 | 233.12 | -1.60 | 169.72 | 0.1567 | -765.0 | -503.6 | |
| 0.00 | 4.18 | 0.00 | 2.11 | -6.74 | 233.03 | -1.70 | 170.62 | 0.1817 | -794.0 | -695.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.93 | 232.94 | -1.79 | 169.32 | 0.1683 | -733.0 | -575.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.07 | 232.15 | -2.58 | 168.50 | 0.2238 | -756.0 | -589.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.64 | 232.16 | -2.57 | 167.11 | 0.1998 | -918.0 | -748.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.88 | 231.81 | -2.92 | 166.85 | 0.2219 | -910.0 | -739.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
