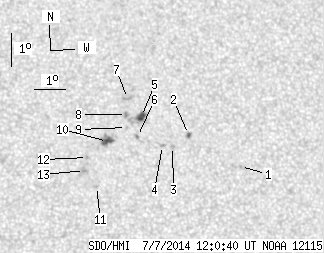

SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.73 | 45.14 | 4.53 | 23.49 | 7.49 | 252.15 | 17.42 | 283.55 | 0.3069 | 430.5 | 461.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.38 | 255.65 | 20.92 | 278.57 | 0.3604 | -710.0 | -502.0 | |
| 0.73 | 2.00 | 0.38 | 1.05 | 7.39 | 253.99 | 19.27 | 282.16 | 0.3362 | -1071.8 | -889.3 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 7.04 | 253.46 | 18.73 | 281.38 | 0.3265 | -763.0 | -622.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.08 | 253.13 | 18.41 | 281.66 | 0.3214 | -921.0 | -761.9 | |
| 4.00 | 13.44 | 2.08 | 7.01 | 7.97 | 252.49 | 17.77 | 284.85 | 0.3140 | 967.5 | 493.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 7.37 | 252.34 | 17.61 | 283.04 | 0.3094 | 733.0 | 506.4 | |
| 0.00 | 4.00 | 0.00 | 2.08 | 8.53 | 252.07 | 17.34 | 286.93 | 0.3095 | 994.0 | 767.0 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 8.05 | 252.01 | 17.29 | 285.43 | 0.3066 | 1118.0 | 943.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 7.65 | 252.00 | 17.27 | 284.17 | 0.3048 | 751.0 | 619.6 | |
| 4.00 | 10.08 | 2.07 | 5.22 | 7.23 | 251.37 | 16.64 | 283.24 | 0.2931 | 1090.0 | 838.9 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 5.87 | 250.97 | 16.24 | 278.77 | 0.2828 | 738.0 | 598.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.76 | 250.71 | 15.98 | 282.05 | 0.2808 | 947.0 | 723.5 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 6.36 | 250.60 | 15.87 | 280.71 | 0.2779 | 1009.0 | 816.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
