SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.08 | 31.06 | 18.40 | 31.70 | -7.63 | 294.20 | 60.03 | 259.24 | 0.8756 | -30.1 | 19.0 | |
|
previous
or next observation for the same group /

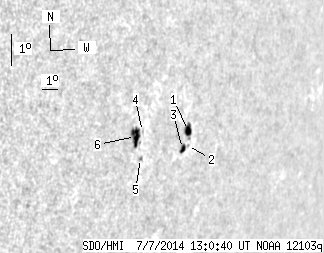

back to the solar disc SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 9.36 | 6.13 | 10.03 | -7.49 | 295.81 | 61.64 | 259.66 | 0.8887 | 507.3 | 274.9 | |
| 0.00 | 1.18 | 0.00 | 1.27 | -7.95 | 295.86 | 61.69 | 259.15 | 0.8897 | 291.0 | 267.5 | |
| 3.00 | 4.63 | 3.20 | 4.94 | -8.03 | 295.56 | 61.38 | 259.01 | 0.8873 | 587.7 | 430.4 | |
| 0.00 | 0.45 | 0.00 | 0.45 | -7.36 | 292.91 | 58.74 | 259.34 | 0.8647 | -103.0 | -115.6 | |
| 0.00 | 1.63 | 0.00 | 1.61 | -8.20 | 292.98 | 58.81 | 258.39 | 0.8664 | -231.0 | -235.9 | |
| 9.36 | 13.81 | 9.07 | 13.40 | -7.49 | 292.53 | 58.35 | 259.12 | 0.8615 | -616.5 | -341.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
