SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.64 | 555.80 | 59.56 | 346.38 | -11.82 | 268.33 | 34.15 | 245.12 | 0.6082 | 247.2 | 31.6 | |
|
previous
or next observation for the same group /

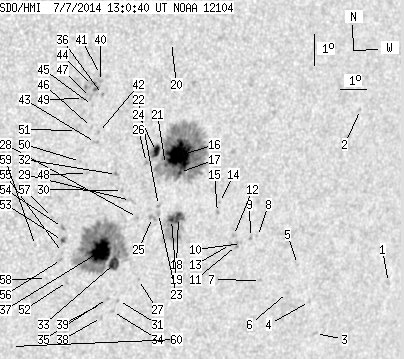

back to the solar disc SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.41 | -14.81 | 278.72 | 44.54 | 246.29 | 0.7429 | 631.0 | 492.9 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -9.24 | 276.39 | 42.22 | 252.78 | 0.6966 | 626.0 | 453.2 | |
| 0.00 | 1.82 | 0.00 | 1.29 | -16.32 | 275.93 | 41.76 | 243.06 | 0.7193 | 615.0 | 403.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -15.27 | 275.42 | 41.24 | 244.17 | 0.7088 | 423.0 | 322.4 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -14.05 | 274.64 | 40.46 | 245.41 | 0.6946 | 508.0 | 531.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -14.94 | 274.42 | 40.24 | 244.11 | 0.6961 | 434.0 | 378.5 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -14.51 | 273.22 | 39.04 | 244.07 | 0.6804 | 648.0 | 512.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -13.09 | 272.81 | 38.64 | 245.82 | 0.6690 | 409.0 | 339.6 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -13.11 | 272.54 | 38.36 | 245.65 | 0.6658 | 613.0 | 563.8 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -13.29 | 272.21 | 38.04 | 245.22 | 0.6627 | 513.0 | 435.8 | |
| 0.00 | 2.82 | 0.00 | 1.85 | -13.34 | 272.02 | 37.85 | 245.04 | 0.6608 | 559.0 | 642.4 | |
| 0.00 | 2.18 | 0.00 | 1.43 | -13.02 | 271.84 | 37.67 | 245.40 | 0.6571 | 769.0 | 603.0 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -13.30 | 271.78 | 37.60 | 244.97 | 0.6576 | 768.0 | 670.2 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -11.94 | 271.11 | 36.94 | 246.56 | 0.6431 | 702.0 | 606.0 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -12.26 | 271.08 | 36.91 | 246.08 | 0.6442 | 657.0 | 513.8 | |
| 38.06 | 232.44 | 23.83 | 145.62 | -10.40 | 269.35 | 35.17 | 247.92 | 0.6137 | 1191.9 | 299.1 | |
| 1.09 | -16.00 | 0.69 | -16.00 | -10.93 | 269.42 | 35.24 | 247.14 | 0.6171 | 649.2 | 999999 | |
| 5.81 | 40.78 | 3.69 | 25.86 | -12.36 | 269.59 | 35.41 | 245.09 | 0.6264 | 758.6 | 210.0 | |
| 3.63 | -18.00 | 2.30 | -18.00 | -12.41 | 269.33 | 35.15 | 244.86 | 0.6234 | 921.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -6.85 | 268.68 | 34.50 | 253.21 | 0.5896 | 594.0 | 475.3 | |
| 1.00 | -16.00 | 0.62 | -16.00 | -10.66 | 268.85 | 34.68 | 247.23 | 0.6086 | 978.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -11.95 | 268.76 | 34.59 | 245.21 | 0.6140 | 654.0 | 597.1 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -12.20 | 268.80 | 34.63 | 244.85 | 0.6158 | 703.0 | 556.8 | |
| 5.72 | -16.00 | 3.54 | -16.00 | -10.24 | 268.46 | 34.28 | 247.67 | 0.6015 | 1058.7 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.45 | -12.32 | 268.59 | 34.42 | 244.54 | 0.6138 | 719.0 | 597.0 | |
| 0.00 | 2.00 | 0.00 | 1.23 | -10.57 | 268.13 | 33.95 | 246.95 | 0.5988 | 841.0 | 664.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -14.28 | 268.38 | 34.20 | 241.49 | 0.6221 | -563.0 | -464.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -12.30 | 268.02 | 33.85 | 244.22 | 0.6066 | 383.0 | 351.9 | |
| 0.00 | 4.00 | 0.00 | 2.47 | -11.75 | 267.68 | 33.51 | 244.85 | 0.5993 | 521.0 | 299.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -11.42 | 267.34 | 33.16 | 245.14 | 0.5932 | 770.0 | 515.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -14.93 | 267.73 | 33.55 | 240.11 | 0.6182 | -693.0 | -568.7 | |
| 0.00 | 1.91 | 0.00 | 1.16 | -10.91 | 267.05 | 32.88 | 245.77 | 0.5867 | 872.0 | 716.1 | |
| 8.99 | 195.38 | 5.59 | 120.38 | -13.74 | 267.38 | 33.20 | 241.62 | 0.6068 | -795.1 | -495.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -15.28 | 267.56 | 33.39 | 239.49 | 0.6184 | -682.0 | -498.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -14.85 | 267.30 | 33.12 | 239.92 | 0.6126 | -574.0 | -482.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -8.38 | 266.26 | 32.09 | 249.42 | 0.5635 | 795.0 | 637.2 | |
| 30.34 | -33.00 | 18.70 | -33.00 | -13.30 | 266.82 | 32.65 | 241.90 | 0.5974 | -1216.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -15.46 | 267.18 | 33.00 | 238.95 | 0.6150 | -542.0 | -473.9 | |
| 0.00 | 2.18 | 0.00 | 1.36 | -15.01 | 267.10 | 32.92 | 239.55 | 0.6112 | -475.0 | -397.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -7.97 | 266.15 | 31.98 | 250.05 | 0.5601 | 765.0 | 669.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.75 | 266.14 | 31.96 | 250.41 | 0.5589 | 774.0 | 597.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -9.56 | 266.23 | 32.06 | 247.43 | 0.5690 | 587.0 | 461.2 | |
| 0.00 | 2.45 | 0.00 | 1.48 | -9.87 | 266.16 | 31.98 | 246.87 | 0.5696 | 778.0 | 478.3 | |
| 0.00 | 8.63 | 0.00 | 5.14 | -8.09 | 265.87 | 31.70 | 249.69 | 0.5568 | 675.0 | 799.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -8.71 | 265.93 | 31.76 | 248.67 | 0.5606 | 728.0 | 605.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -9.40 | 265.96 | 31.79 | 247.54 | 0.5645 | 635.0 | 558.1 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -8.46 | 265.83 | 31.66 | 249.04 | 0.5581 | 614.0 | 667.6 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -10.84 | 265.97 | 31.80 | 245.18 | 0.5724 | 537.0 | 449.1 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -8.48 | 265.58 | 31.41 | 248.85 | 0.5548 | 610.0 | 581.8 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -10.45 | 265.67 | 31.50 | 245.61 | 0.5663 | 663.0 | 581.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -9.47 | 265.42 | 31.25 | 247.07 | 0.5577 | 609.0 | 537.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -14.25 | 265.71 | 31.53 | 239.64 | 0.5896 | -723.0 | -590.8 | |
| 1.00 | 2.91 | 0.60 | 1.76 | -12.93 | 265.33 | 31.15 | 241.39 | 0.5765 | -908.4 | -790.9 | |
| 0.00 | 2.36 | 0.00 | 1.43 | -12.52 | 265.27 | 31.10 | 242.00 | 0.5732 | -857.0 | -692.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -13.32 | 265.38 | 31.21 | 240.83 | 0.5796 | -808.0 | -693.2 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -13.54 | 265.38 | 31.20 | 240.49 | 0.5809 | -808.0 | -649.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.19 | 264.86 | 30.69 | 242.23 | 0.5660 | -714.0 | -458.1 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.13 | 264.91 | 30.74 | 239.22 | 0.5791 | 574.0 | 572.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -13.06 | 264.36 | 30.19 | 240.45 | 0.5652 | 593.0 | 412.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -16.28 | 263.97 | 29.80 | 235.21 | 0.5830 | -493.0 | -404.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
