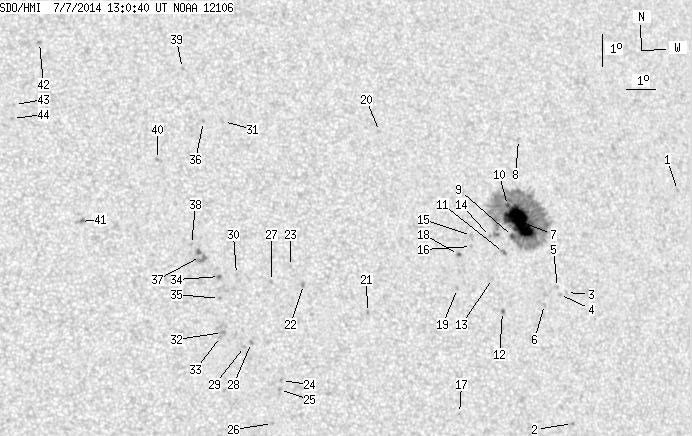

SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.41 | 307.55 | 28.10 | 173.32 | 14.97 | 260.25 | 26.07 | 296.11 | 0.4736 | -349.6 | -204.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.95 | 267.65 | 33.48 | 292.96 | 0.5782 | -676.0 | -603.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.90 | 262.86 | 28.68 | 281.99 | 0.4867 | -849.0 | -657.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 12.92 | 263.08 | 28.91 | 289.89 | 0.5030 | -588.0 | -536.9 | |
| 0.00 | 1.82 | 0.00 | 1.04 | 12.87 | 262.82 | 28.65 | 289.92 | 0.4991 | -763.0 | -641.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 13.09 | 262.78 | 28.61 | 290.36 | 0.4994 | -668.0 | -596.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 12.58 | 262.25 | 28.08 | 289.65 | 0.4898 | -678.0 | -576.6 | |
| 44.69 | 241.07 | 25.44 | 137.34 | 15.17 | 261.71 | 27.53 | 295.02 | 0.4943 | -1291.2 | -368.5 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 17.73 | 262.07 | 27.90 | 299.47 | 0.5140 | 672.0 | 440.8 | |
| 2.00 | -7.00 | 1.13 | -7.00 | 14.71 | 261.39 | 27.22 | 294.35 | 0.4876 | -845.9 | 999999 | |
| 1.54 | -7.00 | 0.88 | -7.00 | 15.68 | 261.35 | 27.18 | 296.24 | 0.4923 | -947.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.64 | 14.23 | 261.01 | 26.84 | 293.66 | 0.4797 | -893.0 | -793.5 | |
| 0.45 | 2.00 | 0.25 | 1.12 | 12.41 | 260.76 | 26.58 | 290.15 | 0.4674 | -866.6 | -667.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 13.43 | 260.53 | 26.35 | 292.40 | 0.4688 | -752.0 | -695.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.73 | 260.62 | 26.45 | 294.94 | 0.4769 | -939.0 | -788.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 14.78 | 259.96 | 25.78 | 295.52 | 0.4680 | -844.0 | -673.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 14.44 | 259.92 | 25.74 | 294.87 | 0.4654 | -712.0 | -520.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 9.31 | 258.98 | 24.81 | 284.37 | 0.4292 | 852.0 | 696.9 | |
| 0.73 | 1.54 | 0.40 | 0.86 | 14.21 | 259.43 | 25.26 | 294.75 | 0.4573 | -941.0 | -796.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 13.16 | 259.28 | 25.10 | 292.68 | 0.4495 | -828.0 | -683.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 18.11 | 257.20 | 23.02 | 304.58 | 0.4533 | 736.0 | 646.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 12.49 | 256.14 | 21.96 | 293.65 | 0.4003 | 809.0 | 670.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 13.41 | 254.07 | 19.90 | 297.83 | 0.3760 | 985.0 | 787.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.97 | 253.69 | 19.52 | 299.63 | 0.3746 | 656.0 | 563.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 10.47 | 253.12 | 18.95 | 291.19 | 0.3439 | 772.0 | 667.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 10.19 | 253.04 | 18.87 | 290.50 | 0.3412 | 915.0 | 739.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 9.16 | 252.75 | 18.58 | 287.79 | 0.3317 | 848.0 | 753.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 13.52 | 253.02 | 18.85 | 299.32 | 0.3618 | 806.0 | 680.3 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 11.65 | 252.22 | 18.05 | 295.39 | 0.3373 | 910.0 | 781.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.54 | 251.98 | 17.81 | 295.33 | 0.3330 | 878.0 | 679.1 | |
| 0.00 | 0.64 | 0.00 | 0.34 | 13.76 | 251.88 | 17.71 | 301.38 | 0.3475 | 685.0 | 529.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 18.55 | 251.90 | 17.73 | 312.18 | 0.3912 | 733.0 | 559.7 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 11.98 | 251.29 | 17.12 | 297.41 | 0.3258 | 962.0 | 869.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.86 | 251.22 | 17.05 | 297.16 | 0.3239 | 841.0 | 706.0 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 13.71 | 251.32 | 17.15 | 302.02 | 0.3393 | 1043.0 | 954.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.03 | 251.27 | 17.10 | 300.31 | 0.3332 | 858.0 | 760.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 18.56 | 251.23 | 17.05 | 313.26 | 0.3834 | 669.0 | 482.0 | |
| 0.00 | 9.63 | 0.00 | 5.06 | 14.34 | 250.75 | 16.57 | 304.48 | 0.3367 | 632.0 | 839.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 14.72 | 250.48 | 16.30 | 305.84 | 0.3364 | 872.0 | 675.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 20.25 | 250.70 | 16.53 | 317.36 | 0.3956 | 789.0 | 635.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 17.39 | 249.58 | 15.41 | 313.60 | 0.3516 | 832.0 | 635.0 | |
| 0.00 | 3.91 | 0.00 | 2.03 | 15.49 | 246.91 | 12.74 | 314.45 | 0.2990 | 1024.0 | 786.0 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 21.16 | 245.98 | 11.81 | 327.86 | 0.3602 | 827.0 | 706.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 19.19 | 245.01 | 10.83 | 326.75 | 0.3251 | 639.0 | 557.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.75 | 244.91 | 10.74 | 326.18 | 0.3183 | 829.0 | 632.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
