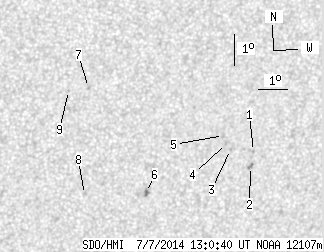

SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.08 | 0.00 | 8.52 | -13.71 | 257.33 | 23.15 | 232.49 | 0.4829 | 674.2 | 598.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.52 | -13.68 | 259.89 | 25.72 | 235.45 | 0.5139 | 768.0 | 653.4 | |
| 0.00 | 2.82 | 0.00 | 1.63 | -14.16 | 259.84 | 25.67 | 234.62 | 0.5172 | 769.0 | 630.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -13.60 | 259.08 | 24.91 | 234.76 | 0.5032 | 662.0 | 514.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.40 | 258.92 | 24.75 | 234.92 | 0.4996 | 661.0 | 608.4 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -13.14 | 258.79 | 24.62 | 235.22 | 0.4959 | 756.0 | 603.3 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -14.90 | 256.34 | 22.17 | 229.45 | 0.4818 | 971.0 | 788.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -11.50 | 254.09 | 19.92 | 232.51 | 0.4225 | 666.0 | 567.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -14.91 | 254.25 | 20.07 | 226.65 | 0.4579 | 51.0 | 136.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -11.58 | 253.44 | 19.26 | 231.43 | 0.4150 | 764.0 | 598.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
