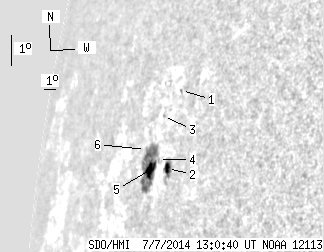

SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.26 | 68.57 | 21.57 | 97.89 | 8.93 | 164.32 | -69.86 | 81.79 | 0.9385 | -364.5 | -31.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.34 | 11.37 | 165.58 | -68.60 | 79.17 | 0.9309 | -263.0 | -229.3 | |
| 4.36 | 12.53 | 5.88 | 16.88 | 8.95 | 165.49 | -68.69 | 81.77 | 0.9314 | -555.6 | -372.8 | |
| 0.00 | 0.91 | 0.00 | 1.28 | 10.50 | 164.43 | -69.74 | 80.11 | 0.9379 | 515.0 | 367.5 | |
| 0.00 | 2.27 | 0.00 | 3.18 | 9.18 | 164.60 | -69.57 | 81.52 | 0.9368 | -535.0 | -471.3 | |
| 10.90 | 51.50 | 15.69 | 74.67 | 8.84 | 164.02 | -70.15 | 81.88 | 0.9403 | -385.3 | 48.4 | |
| 0.00 | 0.36 | 0.00 | 0.54 | 9.41 | 163.29 | -70.88 | 81.26 | 0.9445 | 275.0 | 270.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
