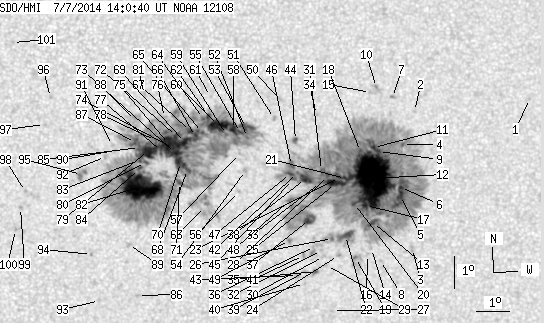

SDO HMI 2014-07-07 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 467.56 | 2233.91 | 237.19 | 1134.65 | -7.06 | 239.76 | 6.14 | 208.45 | 0.2177 | 37.0 | 90.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -4.85 | 247.70 | 14.07 | 239.24 | 0.2832 | 780.0 | 672.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.20 | 244.10 | 10.48 | 230.17 | 0.2369 | 941.0 | 645.1 | |
| 0.00 | 2.91 | 0.00 | 1.50 | -9.45 | 244.14 | 10.51 | 218.79 | 0.2886 | 249.0 | 36.9 | |
| 1.27 | 1118.74 | 0.65 | 571.33 | -6.21 | 243.75 | 10.12 | 226.02 | 0.2439 | 830.4 | 478.7 | |
| 5.09 | -4.00 | 2.61 | -4.00 | -7.79 | 243.72 | 10.09 | 221.58 | 0.2628 | 1179.4 | 999999 | |
| 1.82 | -4.00 | 0.93 | -4.00 | -7.54 | 243.71 | 10.09 | 222.20 | 0.2596 | 1095.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -4.76 | 243.41 | 9.79 | 229.72 | 0.2231 | -778.0 | -642.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.81 | 243.14 | 9.52 | 215.29 | 0.2834 | 582.0 | 421.8 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -6.42 | 243.00 | 9.38 | 223.23 | 0.2375 | 1279.0 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -4.44 | 242.91 | 9.29 | 229.33 | 0.2131 | -694.0 | -418.9 | |
| 1.73 | -4.00 | 0.88 | -4.00 | -6.29 | 242.85 | 9.22 | 223.11 | 0.2342 | 1242.4 | 999999 | |
| 142.59 | -4.00 | 72.86 | -4.00 | -7.25 | 242.83 | 9.21 | 220.38 | 0.2461 | 1528.2 | 999999 | |
| 4.90 | -4.00 | 2.52 | -4.00 | -8.62 | 242.86 | 9.24 | 217.08 | 0.2645 | 903.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.43 | 242.85 | 9.23 | 215.24 | 0.2754 | 576.0 | 305.5 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -4.60 | 242.73 | 9.11 | 228.22 | 0.2125 | 149.0 | 80.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -9.62 | 242.73 | 9.11 | 214.50 | 0.2768 | 410.0 | 201.4 | |
| 3.81 | -4.00 | 1.95 | -4.00 | -8.09 | 242.63 | 9.01 | 217.64 | 0.2550 | 1160.3 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -6.41 | 242.44 | 8.82 | 221.49 | 0.2311 | 1301.3 | 999999 | |
| 0.64 | 13.80 | 0.33 | 7.12 | -9.71 | 242.36 | 8.73 | 213.21 | 0.2745 | 953.7 | 242.6 | |
| 2.82 | -4.00 | 1.44 | -4.00 | -8.03 | 242.29 | 8.66 | 216.72 | 0.2506 | 1037.3 | 999999 | |
| 3.45 | -4.00 | 1.76 | -4.00 | -7.25 | 241.99 | 8.37 | 217.73 | 0.2370 | 1221.5 | 999999 | |
| 8.63 | 30.15 | 4.43 | 15.47 | -9.02 | 242.03 | 8.41 | 213.64 | 0.2618 | 1016.1 | 596.5 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -7.21 | 241.81 | 8.18 | 217.19 | 0.2347 | 1424.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -9.64 | 241.82 | 8.20 | 211.71 | 0.2687 | 777.0 | 626.4 | |
| 10.54 | -4.00 | 5.37 | -4.00 | -7.40 | 241.68 | 8.06 | 216.31 | 0.2360 | 1348.1 | 999999 | |
| 1.00 | -22.00 | 0.51 | -22.00 | -9.11 | 241.62 | 8.00 | 212.17 | 0.2593 | 1049.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.37 | 241.68 | 8.06 | 208.15 | 0.2926 | -703.0 | -677.1 | |
| 3.27 | -4.00 | 1.66 | -4.00 | -7.15 | 241.46 | 7.84 | 216.19 | 0.2303 | 1165.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.95 | 241.46 | 7.83 | 209.96 | 0.2700 | 622.0 | 429.3 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.67 | 241.36 | 7.73 | 210.18 | 0.2651 | 713.0 | 582.8 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -6.99 | 241.24 | 7.62 | 215.82 | 0.2259 | 1291.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.48 | 241.29 | 7.67 | 210.33 | 0.2618 | 953.0 | 721.3 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -7.36 | 241.22 | 7.60 | 214.78 | 0.2308 | 1111.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.26 | 241.07 | 7.44 | 220.22 | 0.2007 | -739.0 | -576.9 | |
| 1.27 | 3.63 | 0.65 | 1.87 | -10.14 | 241.12 | 7.49 | 208.54 | 0.2699 | 891.9 | 632.0 | |
| 0.00 | 10.26 | 0.00 | 5.26 | -9.35 | 241.07 | 7.45 | 209.85 | 0.2580 | 651.0 | 721.3 | |
| 9.08 | -4.00 | 4.64 | -4.00 | -8.51 | 240.90 | 7.27 | 211.00 | 0.2442 | 1123.4 | 999999 | |
| 8.54 | -4.00 | 4.34 | -4.00 | -7.23 | 240.75 | 7.13 | 213.42 | 0.2246 | 1126.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -10.13 | 240.80 | 7.18 | 207.53 | 0.2674 | 748.0 | 579.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.51 | 240.78 | 7.16 | 206.81 | 0.2729 | 682.0 | 546.8 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.63 | 240.73 | 7.11 | 208.20 | 0.2594 | 811.0 | 686.2 | |
| 1.27 | -4.00 | 0.65 | -4.00 | -7.05 | 240.50 | 6.88 | 212.95 | 0.2196 | 1091.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -10.26 | 240.56 | 6.94 | 206.51 | 0.2674 | -282.0 | -316.3 | |
| 1.63 | 3.54 | 0.83 | 1.79 | -6.05 | 240.43 | 6.81 | 215.30 | 0.2048 | 4.8 | 207.8 | |
| 0.91 | -4.00 | 0.46 | -4.00 | -7.26 | 240.35 | 6.73 | 211.84 | 0.2213 | 1086.2 | 999999 | |
| 3.27 | -4.00 | 1.66 | -4.00 | -6.83 | 240.31 | 6.69 | 212.77 | 0.2147 | 893.8 | 999999 | |
| 2.36 | -4.00 | 1.20 | -4.00 | -7.07 | 240.29 | 6.66 | 212.05 | 0.2180 | 986.2 | 999999 | |
| 1.54 | -4.00 | 0.79 | -4.00 | -7.88 | 240.30 | 6.68 | 210.21 | 0.2299 | -726.2 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -9.16 | 240.29 | 6.66 | 207.56 | 0.2488 | 883.0 | 753.0 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -4.79 | 239.95 | 6.33 | 217.23 | 0.1824 | 935.0 | 723.7 | |
| 0.00 | 2.18 | 0.00 | 1.10 | -5.37 | 239.77 | 6.15 | 214.59 | 0.1888 | 970.0 | 726.5 | |
| 0.82 | 928.38 | 0.41 | 468.19 | -5.95 | 238.95 | 5.33 | 209.26 | 0.1897 | -495.9 | -406.8 | |
| 7.99 | -52.00 | 4.03 | -52.00 | -5.64 | 238.91 | 5.29 | 209.93 | 0.1848 | -908.3 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.38 | -6.97 | 238.90 | 5.27 | 206.58 | 0.2048 | 1036.0 | 724.2 | |
| 2.09 | -52.00 | 1.05 | -52.00 | -5.79 | 238.73 | 5.11 | 208.66 | 0.1856 | -792.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.62 | 238.72 | 5.09 | 204.46 | 0.2135 | 753.0 | 526.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.44 | 238.71 | 5.08 | 206.94 | 0.1952 | 797.0 | 564.8 | |
| 7.90 | -52.00 | 3.98 | -52.00 | -5.70 | 238.52 | 4.89 | 207.87 | 0.1824 | -1037.8 | 999999 | |
| 2.18 | -52.00 | 1.10 | -52.00 | -5.85 | 238.30 | 4.68 | 206.44 | 0.1831 | -697.2 | 999999 | |
| 20.53 | -52.00 | 10.33 | -52.00 | -5.57 | 238.05 | 4.43 | 205.90 | 0.1768 | -1244.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.68 | 237.80 | 4.18 | 206.94 | 0.1611 | 664.0 | 426.9 | |
| 1.82 | -52.00 | 0.91 | -52.00 | -5.26 | 237.74 | 4.12 | 205.07 | 0.1697 | 626.5 | 999999 | |
| 0.00 | 33.69 | 0.00 | 17.09 | -8.08 | 237.67 | 4.05 | 199.14 | 0.2142 | -358.0 | -410.0 | |
| 1.73 | -52.00 | 0.87 | -52.00 | -5.35 | 237.59 | 3.97 | 204.02 | 0.1701 | 949.4 | 999999 | |
| 1.54 | -52.00 | 0.78 | -52.00 | -5.79 | 237.56 | 3.94 | 202.87 | 0.1767 | -1024.9 | 999999 | |
| 8.17 | -52.00 | 4.11 | -52.00 | -5.91 | 237.35 | 3.73 | 201.49 | 0.1773 | -1034.6 | 999999 | |
| 4.36 | -52.00 | 2.19 | -52.00 | -5.75 | 237.20 | 3.57 | 201.00 | 0.1738 | -872.6 | 999999 | |
| 3.09 | -52.00 | 1.56 | -52.00 | -6.93 | 237.11 | 3.49 | 198.38 | 0.1924 | -939.9 | 999999 | |
| 9.17 | -52.00 | 4.62 | -52.00 | -6.09 | 237.04 | 3.42 | 199.52 | 0.1784 | -1194.0 | 999999 | |
| 11.08 | -52.00 | 5.59 | -52.00 | -6.71 | 236.89 | 3.27 | 197.66 | 0.1877 | -1160.1 | 999999 | |
| 3.36 | -52.00 | 1.70 | -52.00 | -7.33 | 236.87 | 3.24 | 196.57 | 0.1977 | -750.4 | 999999 | |
| 5.36 | -52.00 | 2.70 | -52.00 | -5.91 | 236.77 | 3.14 | 198.38 | 0.1738 | -1152.6 | 999999 | |
| 8.90 | -52.00 | 4.48 | -52.00 | -6.43 | 236.74 | 3.12 | 197.32 | 0.1823 | -1199.4 | 999999 | |
| 1.27 | -52.00 | 0.64 | -52.00 | -6.28 | 236.68 | 3.05 | 197.25 | 0.1794 | -1412.6 | 999999 | |
| 25.98 | -52.00 | 13.07 | -52.00 | -6.15 | 236.55 | 2.93 | 196.79 | 0.1767 | -1383.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -5.32 | 236.40 | 2.77 | 197.37 | 0.1622 | -859.0 | -623.7 | |
| 2.18 | -52.00 | 1.10 | -52.00 | -6.37 | 236.31 | 2.69 | 195.14 | 0.1792 | -1256.9 | 999999 | |
| 1.27 | -52.00 | 0.64 | -52.00 | -6.03 | 236.12 | 2.50 | 194.62 | 0.1727 | -1049.6 | 999999 | |
| 24.89 | -52.00 | 12.53 | -52.00 | -6.34 | 235.91 | 2.29 | 193.01 | 0.1769 | -1357.0 | 999999 | |
| 1.82 | -52.00 | 0.92 | -52.00 | -6.71 | 235.82 | 2.20 | 192.07 | 0.1828 | -1089.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -4.61 | 235.78 | 2.16 | 194.83 | 0.1474 | -896.0 | -507.5 | |
| 74.11 | -52.00 | 37.43 | -52.00 | -7.45 | 235.67 | 2.04 | 190.51 | 0.1949 | -1412.2 | 999999 | |
| 2.36 | -52.00 | 1.19 | -52.00 | -6.61 | 235.66 | 2.04 | 191.35 | 0.1807 | -1245.6 | 999999 | |
| 1.91 | -52.00 | 0.96 | -52.00 | -6.89 | 235.63 | 2.01 | 190.89 | 0.1853 | -1332.8 | 999999 | |
| 3.63 | -52.00 | 1.83 | -52.00 | -6.24 | 235.63 | 2.01 | 191.59 | 0.1743 | -1154.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.86 | 235.59 | 1.97 | 187.72 | 0.2521 | -911.0 | -707.9 | |
| 5.27 | -52.00 | 2.65 | -52.00 | -6.09 | 235.51 | 1.89 | 191.07 | 0.1713 | -1139.9 | 999999 | |
| 0.00 | 12.99 | 0.00 | 6.52 | -5.41 | 235.51 | 1.89 | 191.89 | 0.1598 | -402.0 | -419.5 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -9.25 | 235.30 | 1.68 | 187.45 | 0.2245 | -836.0 | -581.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.33 | 234.90 | 1.27 | 187.34 | 0.1738 | -1022.0 | -749.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -6.18 | 234.80 | 1.18 | 186.92 | 0.1709 | -810.0 | -635.2 | |
| 0.00 | 2.54 | 0.00 | 1.28 | -6.52 | 234.59 | 0.97 | 185.49 | 0.1764 | -848.0 | -663.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.01 | 234.41 | 0.79 | 183.08 | 0.2529 | -690.0 | -575.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.56 | 234.16 | 0.54 | 182.34 | 0.2281 | 777.0 | 572.2 | |
| 0.00 | 8.54 | 0.00 | 4.30 | -7.07 | 233.85 | 0.23 | 181.25 | 0.1852 | -1225.0 | -988.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.69 | 232.91 | -0.71 | 175.05 | 0.1446 | -978.0 | -757.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.53 | 232.72 | -0.90 | 174.34 | 0.1592 | -809.0 | -585.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.60 | 232.13 | -1.49 | 172.41 | 0.1959 | -937.0 | -706.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.10 | 231.98 | -1.65 | 171.98 | 0.2048 | -796.0 | -715.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.78 | 231.82 | -1.80 | 171.71 | 0.2168 | -889.0 | -786.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -3.00 | 231.75 | -1.87 | 164.06 | 0.1192 | -825.0 | -480.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
