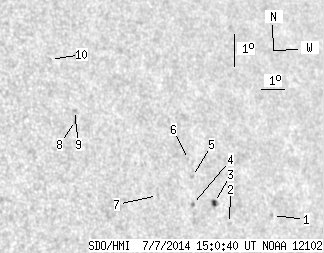

SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.09 | 16.61 | 1.49 | 11.57 | 12.55 | 277.21 | 44.14 | 284.44 | 0.7039 | -177.4 | -88.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.68 | 11.05 | 281.52 | 48.46 | 281.62 | 0.7522 | -567.0 | -468.4 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 10.90 | 279.51 | 46.44 | 281.66 | 0.7288 | -505.0 | -406.0 | |
| 2.09 | 4.63 | 1.49 | 3.31 | 11.57 | 278.97 | 45.90 | 282.66 | 0.7234 | -746.0 | -520.9 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 11.55 | 277.99 | 44.92 | 282.78 | 0.7117 | -725.0 | -602.6 | |
| 0.00 | 1.63 | 0.00 | 1.15 | 12.41 | 278.17 | 45.11 | 283.95 | 0.7152 | -596.0 | -429.2 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 12.94 | 278.12 | 45.05 | 284.70 | 0.7154 | -441.0 | -441.4 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 11.90 | 276.53 | 43.47 | 283.51 | 0.6946 | 373.0 | 310.2 | |
| 0.00 | 2.63 | 0.00 | 1.74 | 14.35 | 273.59 | 40.52 | 287.77 | 0.6632 | 643.0 | 561.2 | |
| 0.00 | 1.73 | 0.00 | 1.14 | 14.66 | 273.62 | 40.55 | 288.22 | 0.6644 | 679.0 | 546.5 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 16.28 | 273.00 | 39.93 | 290.81 | 0.6614 | 390.0 | 338.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
