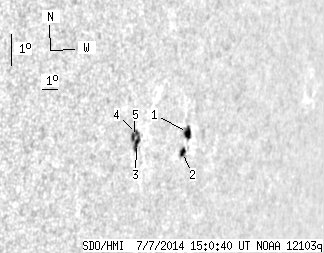

SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.07 | 27.70 | 18.14 | 29.31 | -7.56 | 294.28 | 61.21 | 259.50 | 0.8851 | 28.2 | -63.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.99 | 9.17 | 6.68 | 10.21 | -7.42 | 295.81 | 62.74 | 259.90 | 0.8972 | 461.2 | 318.5 | |
| 3.36 | 5.27 | 3.73 | 5.84 | -8.03 | 295.63 | 62.56 | 259.19 | 0.8965 | 512.0 | 319.5 | |
| 4.45 | 13.26 | 4.47 | 13.26 | -7.58 | 292.57 | 59.50 | 259.20 | 0.8715 | -544.3 | -454.2 | |
| 1.45 | -3.00 | 1.45 | -3.00 | -7.27 | 292.50 | 59.43 | 259.55 | 0.8705 | -610.5 | 999999 | |
| 1.82 | -3.00 | 1.81 | -3.00 | -7.35 | 292.34 | 59.27 | 259.43 | 0.8692 | -641.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
